USA (2× NEMA 5-20) Screw terminals Each socket can be loaded with 20 A, however, the total load of both sockets must be below 30 A.
Weight
0,185 kg
Country of origin
CZ
Model designation
MSVD 2-fach NEMA 5-20R
Power frequency
60 Hz
Operating voltage AC
125 V
Operating current max.
20 A
Connection cross section max.
6 mm²
Connection
Screw terminals SK

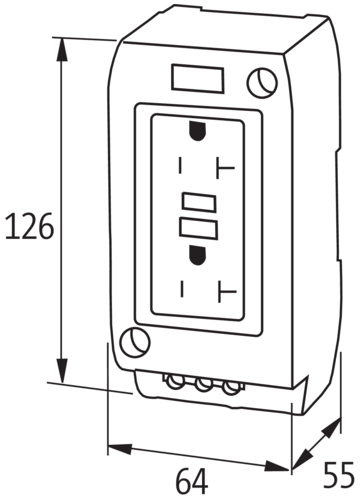

Height
126 mm
Width
64 mm
Depth
55 mm
Mounting method
geschnappt
Suitable for mounting type
(EN 60715), mounting rail
Material short text
MSVD 2-fach NEMA 5-20R
