Murrelektronik
MODL.VARIO insert for coupling housing type B
Price excluding VAT
Request a quote

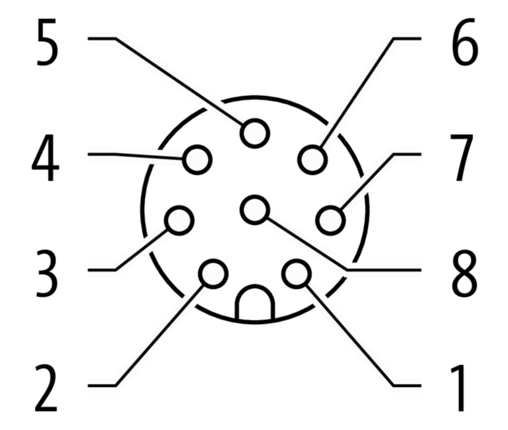

Insert - mobile housing Female straight – male straight M12, 8-pole A-coded
Weight
0,040 kg
Country of origin
DE
Model designation
MSB_ADB-A-08D
Family construction form
M12
Coding
A
Operating voltage AC max.
30 V
Operating voltage DC max.
30 V
Current operating per contact max.
2 A
Tightening torque
0,6 Nm
Mounting set
M12 x 1
Degree of protection (EN IEC 60529)
IP67, IP65
Additional condition protection degree
inserted, screwed
Rated surge voltage
0,8 kV
Rated insulation voltage
800 V
Material housing
Brass
