Frame: metal, black KTL Lid: metal, black KTL KTL stands for “cataphoretic immersion painting” and ensures that the product is given long-lasting...
Weight
0,574 kg
Country of origin
CN
Model designation
Rahmenmodul 2-fach sw metall
Degree of protection (EN IEC 60529)
IP65
Material housing
Fine zinc die casting
Coating housing
KTL

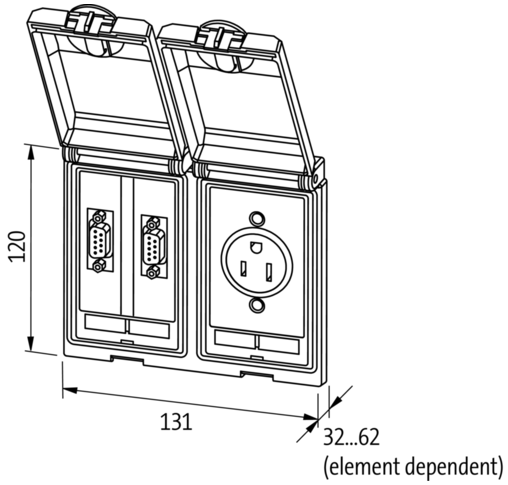

Height
120 mm
Width
130 mm
Depth
35 mm
Suitable for installation wall thickness min.
1 mm
Suitable for installation wall thickness max.
5 mm
Operating temperature min.
-10 °C
Operating temperature max.
60 °C
Ambient temperature (storage, transport)
-25 °C … 60 °C
Storage temperature min.
-25 °C
