Murrelektronik
MICO FUSE 24 LED FUSE HOLDER 5X20MM 8 CHANNELS
Prix hors TVA
Demander un devis
MICO FUSE 24 LED 8 channels Total current: max. 40 A
Poids
0,150 kg
Pays d'origine
CZ
Désignation du modèle
MICO FUSE 24 LED
Operating voltage DC
24 V
Operating voltage DC min.
18 V
Operating voltage DC max.
30 V
Operating current max.
6 A
Total current max.
40 A
Switching current max.
20 mA
Connection cross-section inputs max.
16 mm²
Connection cross-section outputs min.
0,5 mm²
Connection cross-section outputs max.
4 mm²
Connection cross-section control inputs / control outputs max.
2,5 mm²

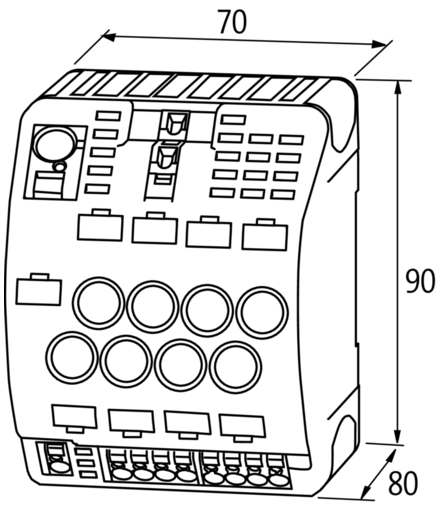

Height
90 mm
Width
70 mm
