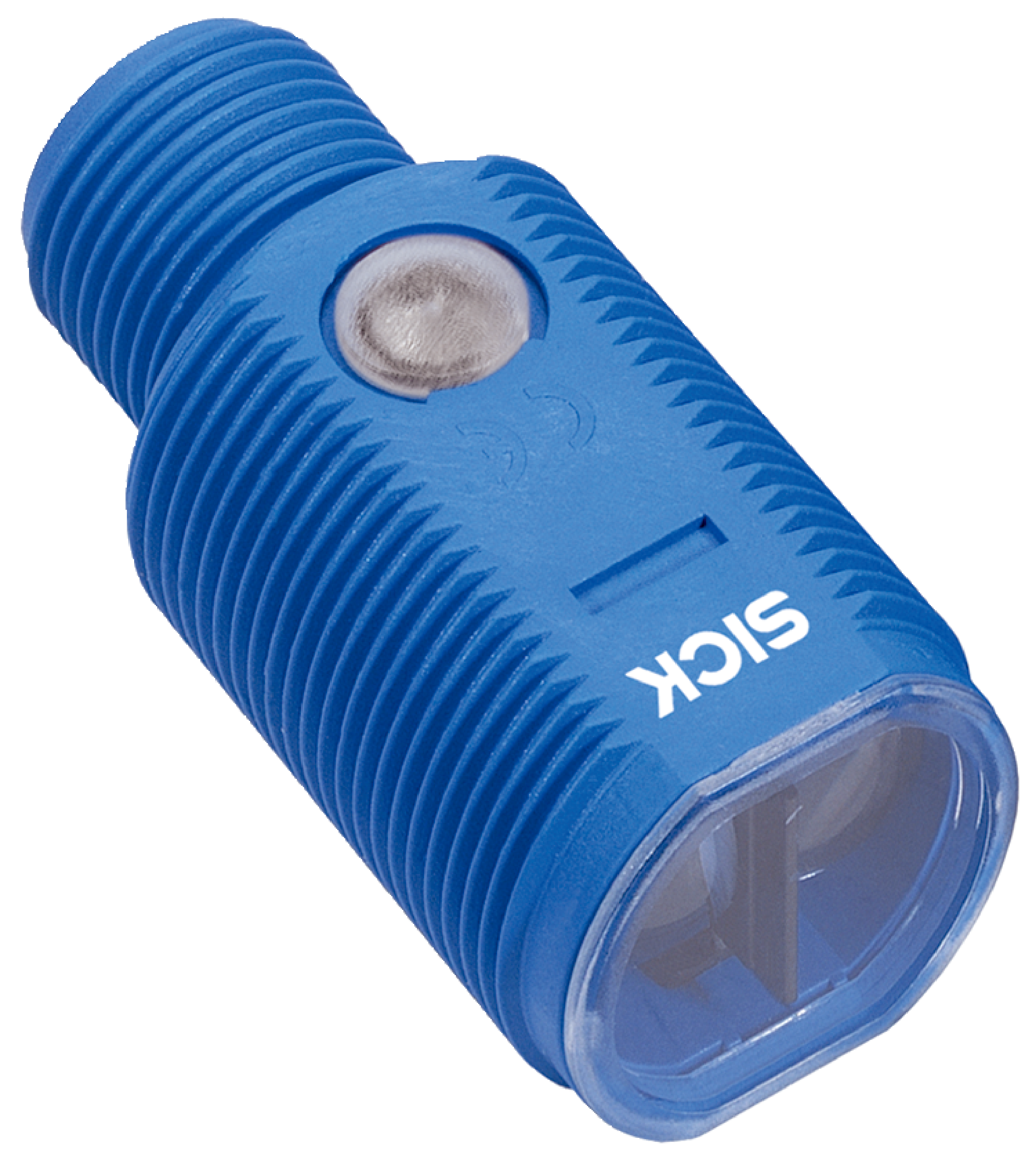

Cylindrical photoelectric sensors | MH15 | MHL15-P3338 | Functional principle: Photoelectric retro-reflective sensor | Switching output: PNP | Switching mode: Light switching | Connection type: Connector M12, 3-pin | Light source: LED | Adjustment: None | Communication interface: -
Functional principle
Photoelectric retro-reflective sensor
Dimensions (W x H x D)
18 mm x 18 mm x 50.3 mm
Housing design (light emission)
Cylindrical
Housing length
50.3 mm
Thread diameter (housing)
M18 x 1
Optical axis
Radial
Sensing range max.
0.035 m ... 4.5 m1)
Sensing range
0.035 m ... 2.6 m1)
Focus
Approx. 1.5°
Type of light
Visible red light
Light source
LED2)
Light spot size (distance)
Ø 60 mm (2.6 m)
Angle of dispersion
Approx. 1.5°
Wave length
650 nm
Adjustment
None
Supply voltage
10 V DC ... 30 V DC1)
Ripple
< 5 Vpp2)
Current consumption
30 mA3)
Switching output
PNP
Switching mode
Light switching
Signal voltage PNP HIGH/LOW
Uv - (< 2,9 V) / ca. 0 V
Output current Imax.
≤ 100 mA
Response time
≤ 1.25 ms4)
Switching frequency
400 Hz5)
Connection type
Connector M12, 3-pin
Circuit protection
A6)C7)D8)
Protection class
III
Poids
8 g
Polarisation filter
✔
Housing material
Plastic, ABS
Optics material
Plastic, PMMA
Enclosure rating
IP67IP69K
Ambient operating temperature
≤ +55 °C
Ambient temperature, storage
≤ +70 °C
UL File No.
NRKH.E189383 & NRKH7.E189383
MTTFD
4,677 years
DCavg
0 %
ECLASS 5.1.4
27270903
ECLASS 6.0
27270903
ECLASS 7.0
27270903
ECLASS 8.0
27270903
ECLASS 9.0
27270903
ECLASS 10.0
27270903
ECLASS 11.0
27270903
ECLASS 12.0
27270903
ECLASS 13.0
27270903
ECLASS 14.0
27270903
ECLASS 15.0
27270903
ETIM 6.0
EC002719
ETIM 7.0
EC002719
ETIM 8.0
EC002719
ETIM 9.0
EC002719
ETIM 10.0
EC002719
UNSPSC 091201.0
32151804
UNSPSC 100501.0
32151804
UNSPSC 111201.0
32151804
UNSPSC 120901.0
32151804
UNSPSC 131201.0
32151804
UNSPSC 140801.0
32151804
UNSPSC 151101.0
32151804
UNSPSC 160901.0
32151804
UNSPSC 171001.0
32151804
UNSPSC 180801.0
32151804
UNSPSC 190501.0
32151804
UNSPSC 200601.0
32151804
UNSPSC 210901.0
32151804
UNSPSC 220601.0
32151804
UNSPSC 230701.0
32151804
UNSPSC 240301.0
32151804
UNSPSC 250901.0
32151804
UNSPSC 260801.0
32151804
