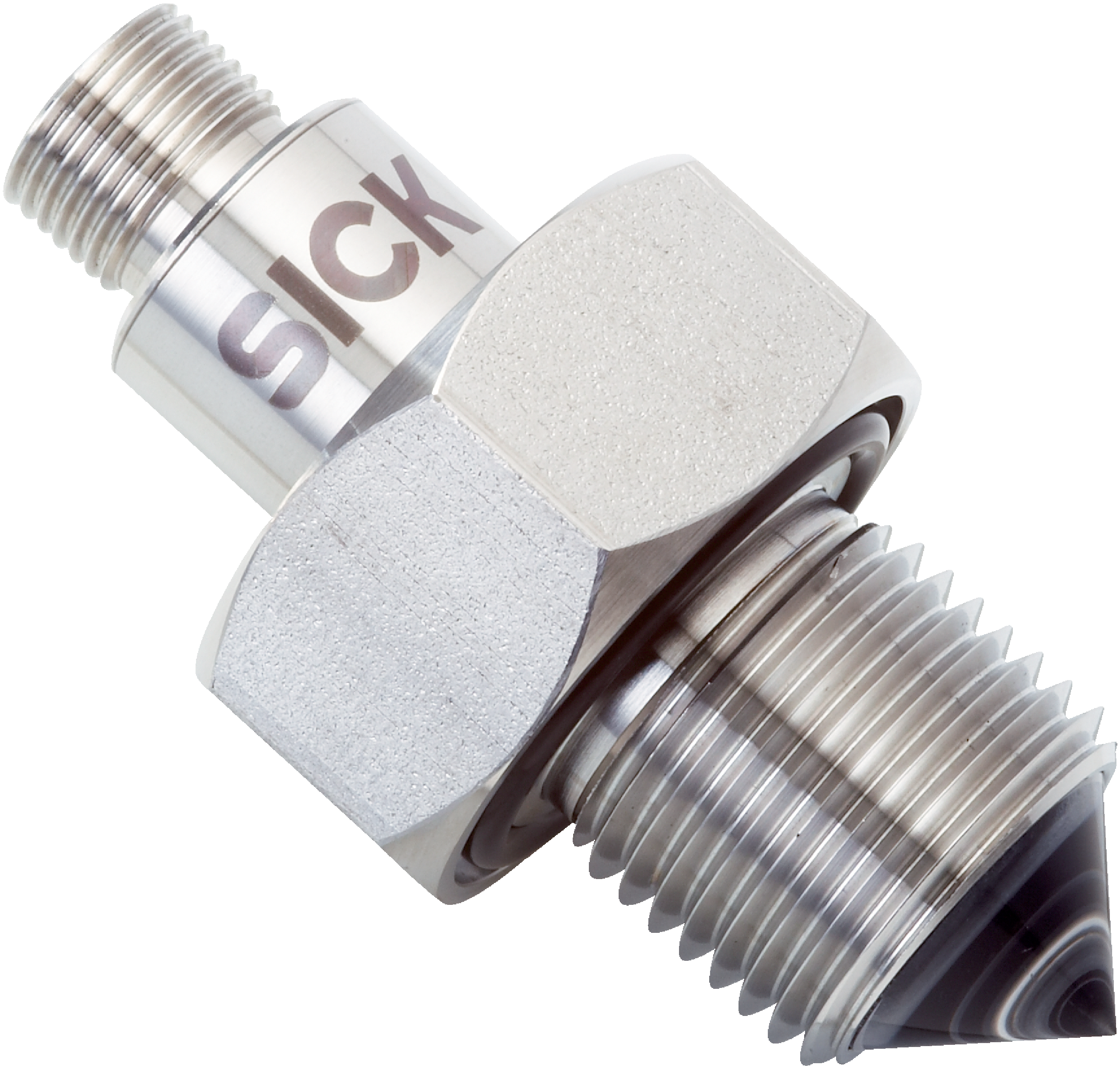

Level sensors | MHF15 | MHF15-21NG1NSM | Process connection: G ½ | Output signal: 1 x NPN | Wetted parts: Stainless steel 316L, polysulfon, FPM | Connection type: M12 round connector x 1, 4-pin | Switching mode: Normally closed | Process temperature: –25 °C ... +55 °C | Enclosure rating: IP67: EN 60529, IP69K: ISO 20653
Medium
Fluids
Measurement
Switch
Light source
LED
Type of light
Visible red light
Wave length
650 nm
Process pressure
–0.5 bar ... 16 bar
Process temperature
–25 °C ... +55 °C
UL approval
✔
RoHS certificate
✔
Response time
2 ms
Supply voltage
10 V DC ... 30 V DC1)
Residual ripple
≤ 5 Vpp2)
Power consumption
≤ 30 mA at 24 V DC without output load
Protection class
III
Connection type
M12 round connector x 1, 4-pin
Output signal
1 x NPN3)
Switching mode
Normally closed
Signal voltage HIGH
Vs - 2.9 V
Signal voltage LOW
≤ 2,9 V
Output current
≤ 100 mA3)
Switching frequency
250 Hz4)
Enclosure rating
IP67: EN 60529, IP69K: ISO 20653
Wetted parts
Stainless steel 316L, polysulfon, FPM
Process connection
G½
Housing material
Stainless steel 1.4404
Ambient operating temperature
–25 °C ... +55 °C
Ambient temperature, storage
–25 °C ... +70 °C
ECLASS 5.0
27273204
ECLASS 5.1.4
27273204
ECLASS 6.0
27273204
ECLASS 6.2
27273204
ECLASS 7.0
27273204
ECLASS 8.0
27273204
ECLASS 8.1
27273204
ECLASS 9.0
27273204
ECLASS 10.0
27273204
ECLASS 11.0
27273204
ECLASS 12.0
27270919
ETIM 5.0
EC002654
ETIM 6.0
EC002654
ETIM 7.0
EC002654
ETIM 8.0
EC002654
UNSPSC 16.0901
41111950
