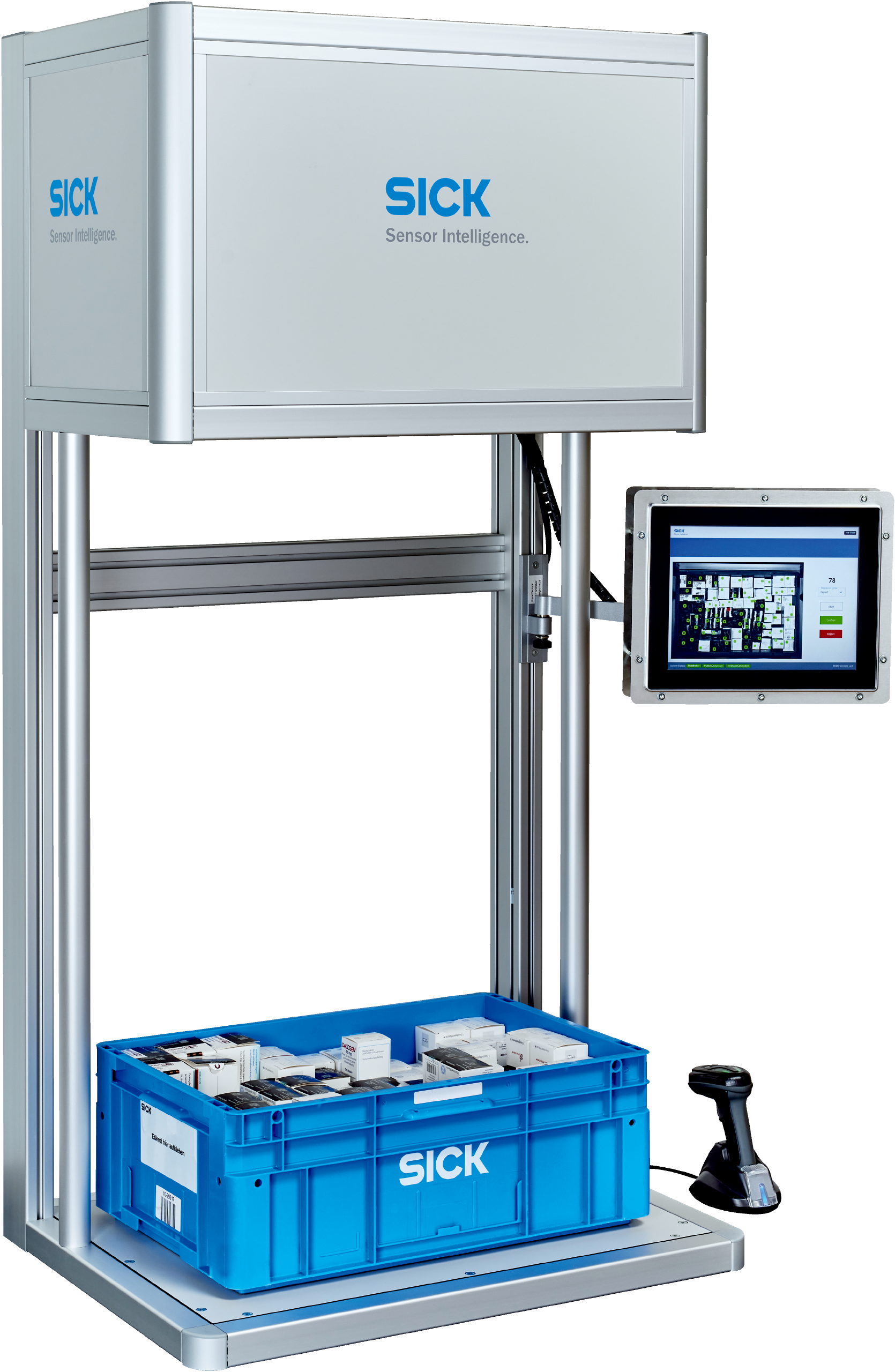

Quality control systems | Multi Code Reader | MCR | Applications: Identification solution for scanning and aggregation of serialization codes | Items supplied: Multi Code Reader, Power supply unit, Connecting cable, Cloud connectors: Arvato Platbricks, medApsis, metacarp (more available individually) | Version: Europe, Middle East, Africa, Asia Pacific
Applications

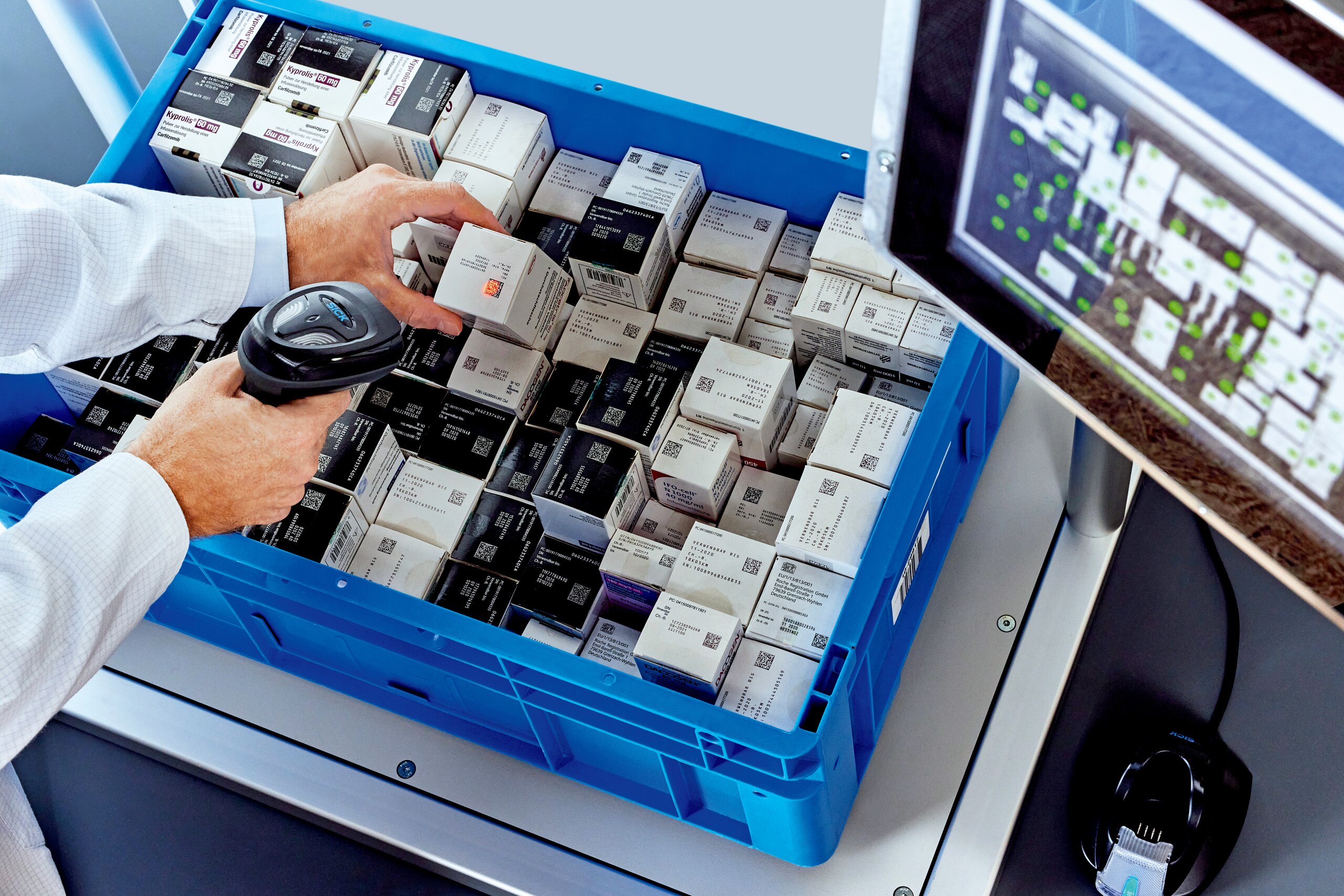

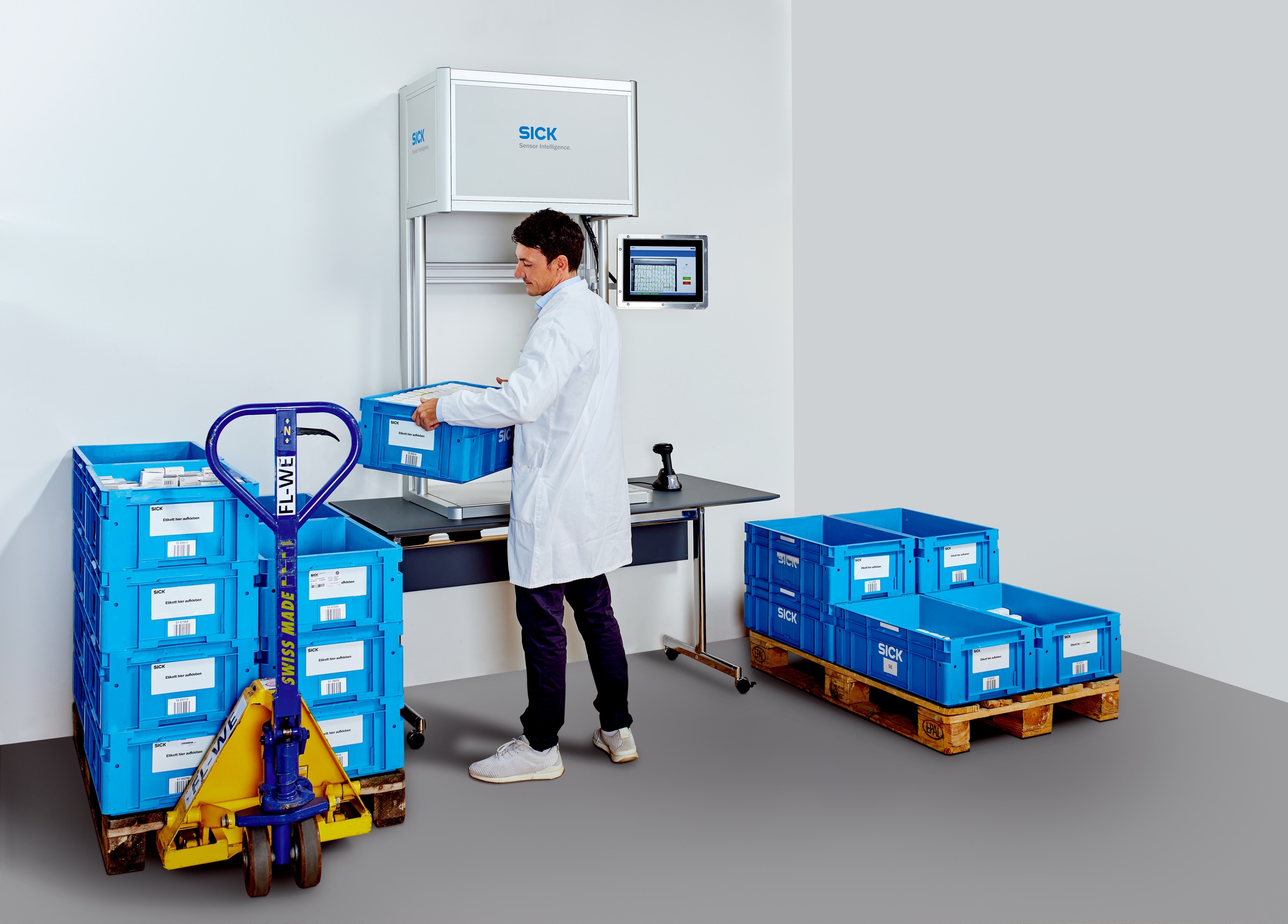

Identification solution for scanning and aggregation of serialization codes
Industries
Consumer goods
MTTR
< 10 min
Laser class
1 (EN 60825-1:2014, IEC 60825-1:2014)
Depth of field
310 mm
Version
Europe, Middle East, Africa, Asia Pacific
Dimensions, system (L x W x H)
1,550 mm x 780 mm x 580 mm
Enclosure rating
IP20 (DIN 40050)
Electrical connection
1 x Power connector
Supply voltage
(100 V AC ... 264 V AC)
Weight
64 kg
1D code types
All current code types
2D code types
Data Matrix
Number of codes per scan
≤ 500
Configuration interface
Ethernet (RJ45)
Output data
http REST
Ambient temperature, operation
0 °C ... +50 °C
Ambient temperature, storage
–20 °C ... +70 °C
Permissible relative humidity
85 %, Non-condensing
Items supplied
Multi Code ReaderPower supply unitConnecting cableCloud connectors: Arvato Platbricks, medApsis, metacarp (more available individually)
Smallest height threshold above the container floor
0.35 mm
ECLASS 5.1.4
27280102
ECLASS 6.0
27280102
ECLASS 7.0
27280102
ECLASS 8.0
27280102
ECLASS 9.0
27280102
ECLASS 10.0
27280102
ECLASS 11.0
27280102
ECLASS 12.0
27280102
ECLASS 13.0
27280102
ECLASS 14.0
27280102
ECLASS 15.0
27280102
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
ETIM 9.0
EC002550
ETIM 10.0
EC002550
UNSPSC 091201.0
41111615
UNSPSC 100501.0
41111615
UNSPSC 111201.0
41111615
UNSPSC 120901.0
41111615
UNSPSC 131201.0
41111615
UNSPSC 140801.0
41111615
UNSPSC 151101.0
41111615
UNSPSC 160901.0
41111615
UNSPSC 171001.0
41111615
UNSPSC 180801.0
41111615
UNSPSC 190501.0
41111615
UNSPSC 200601.0
41111615
UNSPSC 210901.0
41111615
UNSPSC 220601.0
41111615
UNSPSC 230701.0
41111615
UNSPSC 240301.0
41111615
UNSPSC 250901.0
41111615
UNSPSC 260801.0
41111615
