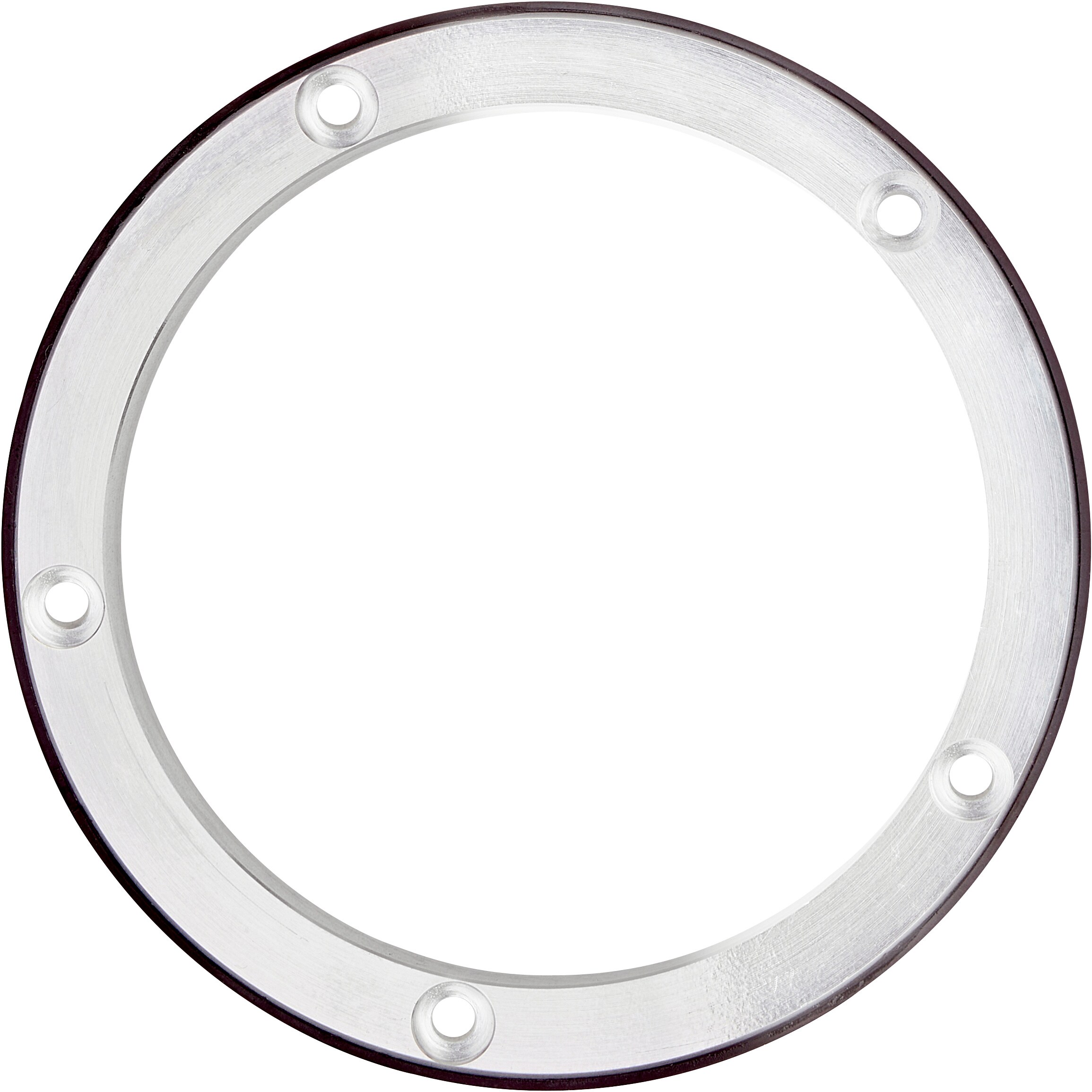

Magnets | Magnetic tapes | MBR-065-KLB | Product segment: Magnets | Product: Magnetic tapes | Description: Magnetic tape ring inner diameter: 65 mm, magnetic tape ring outer diameter: 81 mm, magnetic tape ring width: 10 mm, weight: ≤ 0.58 kg, magnetic tape material: 17410 hard ferrite 9/28 P, material ring: Aluminum, period length: 2 mm, operating temperature range: –30 °C ... 100 °C, storage temperature range: –30 °C ... 100 °C, temperature coefficient: (11 ± 1) μm/K/m | Material: 17410 Hard ferrite 9/28 P
Product segment
Magnets
Product
Magnetic tapes
Description
Magnetic tape ring inner diameter: 65 mm, magnetic tape ring outer diameter: 81 mm, magnetic tape ring width: 10 mm, weight: ≤ 0.58 kg, magnetic tape material: 17410 hard ferrite 9/28 P, material ring: Aluminum, period length: 2 mm, operating temperature range: –30 °C ... 100 °C, storage temperature range: –30 °C ... 100 °C, temperature coefficient: (11 ± 1) μm/K/m
Material
17410 Hard ferrite 9/28 P
Temperature resistance min ... max:
–30 °C +100 °C
ECLASS 5.1.4
27279291
ECLASS 6.0
27279190
ECLASS 7.0
27279190
ECLASS 8.0
27279190
ECLASS 9.0
27270792
ECLASS 10.0
27270792
ECLASS 11.0
27270792
ECLASS 12.0
27274392
ECLASS 13.0
27274392
ECLASS 14.0
27274392
ECLASS 15.0
27274392
ETIM 6.0
EC002594
ETIM 7.0
EC002594
ETIM 8.0
EC002594
ETIM 9.0
EC002594
ETIM 10.0
EC002594
UNSPSC 091201.0
39121500
UNSPSC 100501.0
39121500
UNSPSC 111201.0
39121500
UNSPSC 120901.0
39121500
UNSPSC 131201.0
39122245
UNSPSC 140801.0
39122245
UNSPSC 151101.0
39122245
UNSPSC 160901.0
39122245
UNSPSC 171001.0
39122245
UNSPSC 180801.0
39122245
UNSPSC 190501.0
39122245
UNSPSC 200601.0
39122245
UNSPSC 210901.0
39122245
UNSPSC 220601.0
39122245
UNSPSC 230701.0
39122245
UNSPSC 240301.0
39122245
UNSPSC 250901.0
39122245
UNSPSC 260801.0
39122245
Download Datasheet
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
