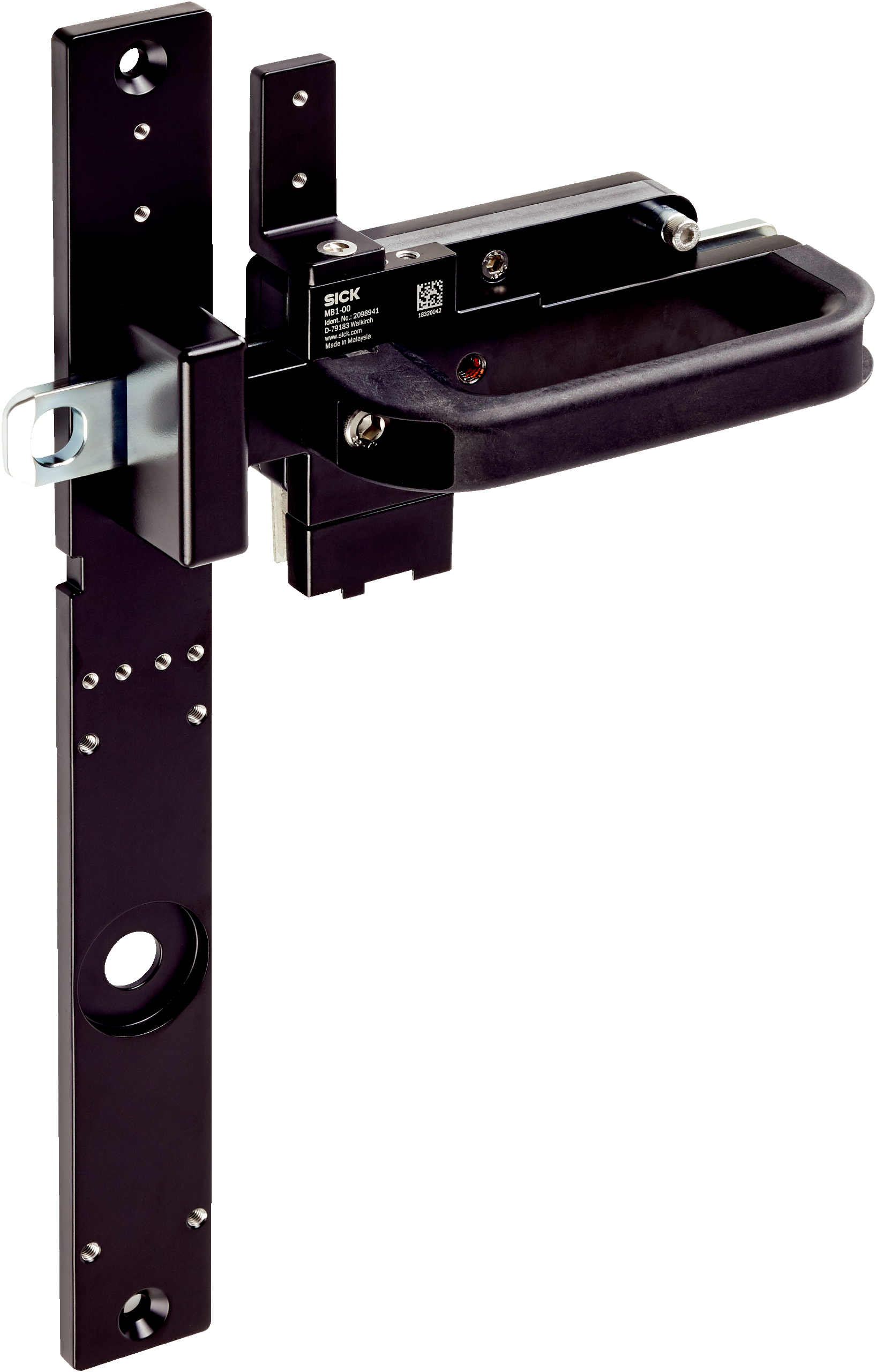

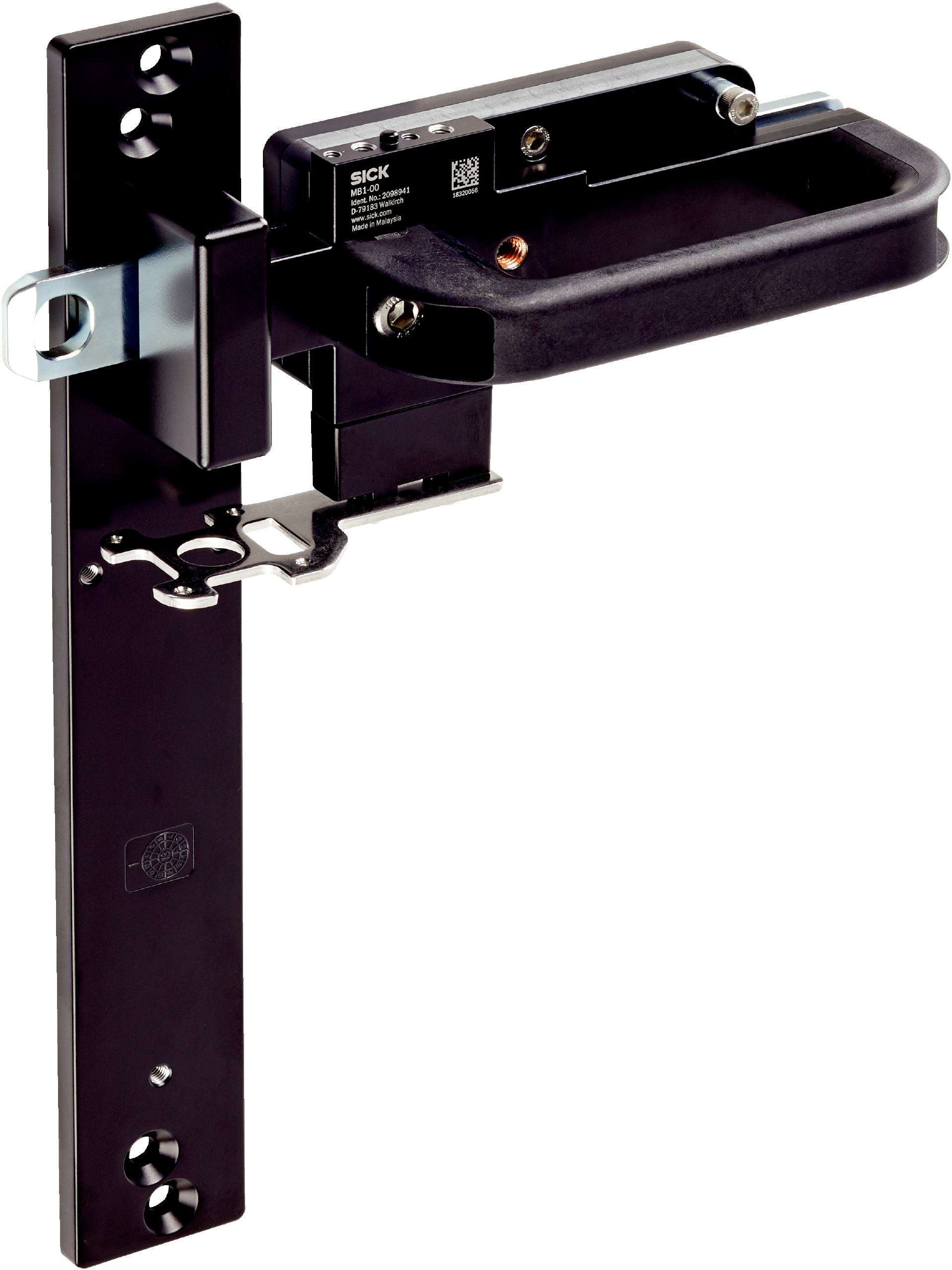

Actuators and bolts | MB1 | MB1-BT00 | Catch release button/ANSI-compliant locking mechanism: no | Escape release: no | Frame plate with latching function: no | Suitable for: TR10 Lock safety locking device | Items supplied: Frame plate TR10 Lock, adapter for actuator mounting (MB1-BRTR), adapter for actuator mounting (MB1-BRTR), safety screws for installing provided adapters, Mounting instructions | Description: Complete set consisting of bolt unit with frame plate for TR10 Lock and adapters for actuators
Description
Complete set consisting of bolt unit with frame plate for TR10 Lock and adapters for actuators
Installation tolerance (horizontal)
3 mm ... 30 mm
Catch release button/ANSI-compliant locking mechanism
–
Escape release
–
Frame plate with latching function
–
Suitable for
TR10 Lock safety locking device
Items supplied
Frame plate TR10 LockAdapter for actuator mounting (MB1-BRTR)Safety screws for installing provided adaptersMounting instructions
Weight
1.587 kg
Handle
VISTAL®
Bolt unit
Steel, zinc coated
Sliding carriage, base plate, frame plate
Aluminum (coated)
ECLASS 5.0
27279202
ECLASS 5.1.4
27279202
ECLASS 6.0
27279202
ECLASS 6.2
27279202
ECLASS 7.0
27279202
ECLASS 8.0
27279202
ECLASS 8.1
27279202
ECLASS 9.0
27273701
ECLASS 10.0
27273701
ECLASS 11.0
27273701
ECLASS 12.0
27273701
ETIM 5.0
EC002594
ETIM 6.0
EC002594
ETIM 7.0
EC002594
ETIM 8.0
EC002594
UNSPSC 16.0901
31161606
