Product version

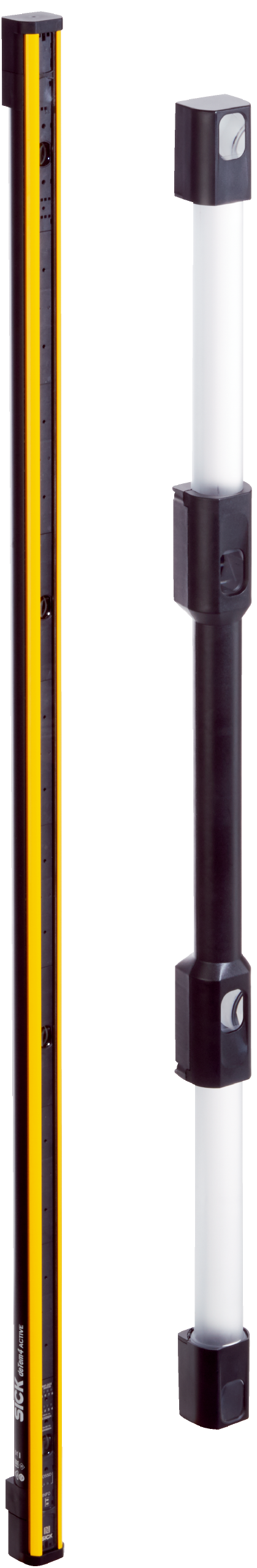

deTem4 A/P
Application
Normal industrial environment
Functional principle
Active/passive
Type of diversion
Prism deflection
Scanning range category
Great scanning range
Items supplied
Active unitPassive unitSafety instructionMounting instructionsOperating instructions for download
Safety integrity level
SIL 3 (IEC 61508)
Category
Category 4 (ISO 13849-1)
Performance level
PL e (ISO 13849-1)
PFHD(mean probability of a dangerous failure per hour)
6.6 x 10-9
TM(mission time)
20 years (ISO 13849-1)
Safe state in the event of a fault
At least one OSSD is in the OFF state.
Note
The deTem4 A/P safety light-beam sensor can be used with different function packages. The function packages are determined by the equipment used.
Function package SP1
Protective operationBeam codingRestart interlockExternal device monitoring (EDM)Application diagnostic output (ADO)IO-LinkEquipment: Active unit with SP1 system plug
Function package SP2
Function package SP1 includedMuting (2-signal muting)Equipment: Active unit with SP2 system plug
Function package DMM4
Function package SP2 includedMuting (4-signal muting)Operating mode selectionInputs for safety sensors (SDI)Equipment: Active unit with SP1 system connector and DMM4 extension module
System connection
Depending on system plug (M12 male connector, 5-pin or 8-pin)
Extension connection
Depending on system plug (without extension connection or with M12 female connector, 5-pin)
Configuration method
DIP switch on system plugPC software via DMM4 (Safety Designer)
Alignment aid
Alignment quality via diagnostic LEDs
Near Field Communication (NFC)
✔
Protection class
III (IEC 61140)1)
Supply voltage VS
24 V DC (19.2 V DC ... 28.8 V DC)2)
Power consumption typical
4 W (DC)
Output signal switching devices (OSSDs)
2 PNP semiconductors, short-circuit protected, cross-circuit monitored4)
ON state, switching voltage HIGH
24 V DC (VS– 2.25 V DC ... VS)
OFF state, switching voltage LOW
≤ 2 V DC
Current-carrying capacity per OSSD
≤ 500 mA
Application diagnostic output (ADO)
PNP semiconductor, short-circuit protected4)
Output voltage HIGH (active)
≥ Vs– 3 V
Output voltage LOW (deactivated)
High resistance
Dimensions
See dimensional drawing
Housing cross-section
30.7 mm x 34 mm42.5 mm x 46.8 mm
Housing
Aluminum extruded profile / PMMA
Poids
+ 875 g (± 50 g)+ 950 g (± 50 g)
Enclosure rating
IP65 (IEC 60529)IP67 (IEC 60529)
Ambient operating temperature
–30 °C ... +55 °C
Storage temperature
–30 °C ... +70 °C
Air humidity
15 % ... 95 %, Non-condensing
Vibration resistance
5 … 150 Hz, 3,5 mm / 1 g (EN 60068-2-6)
Shock resistance
15 g / 6 ms (EN 60068-2-27)
Class
3M4 (IEC TR 60721-4-3)
Type of light
Near-infrared (NIR), invisible
