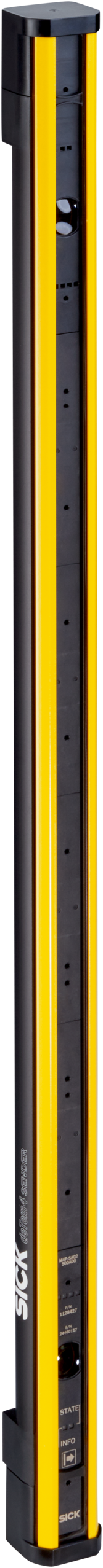

Safety light-beam sensors | deTem | M4P-SA02500A00 | Product version: deTem4 | Functional principle: Sender/receiver | System part: Sender | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation, beam coding, restart interlock, external device monitoring (EDM), Differentiation between person and material | Scanning range: 90 m | Number of beams: 2 | Beam separation: 500 mm | Connection type: Depending on system plug (M12 male connector, 5-pin or 8-pin) | Integrated laser alignment aid: no | Enclosure rating: IP65, IP67 | Items supplied: Sender
Product version
deTem4
Application
Normal industrial environment
Functional principle
Sender/receiver
System part
Sender
Scanning range
90 m
Number of beams
2
Beam separation
500 mm
Synchronization
Optical synchronization
Items supplied
Sender
Type
Type 4 (IEC 61496)
Safety integrity level
SIL 3 (IEC 61508, IEC 62061)
Category
Category 4 (ISO 13849)
Performance level
PL e (ISO 13849)
PFHD(mean probability of a dangerous failure per hour)
6.6 × 10-9
TM(mission time)
20 years (ISO 13849)
Safe state in the event of a fault
At least one OSSD is in the OFF state.
Note
The deTem4 safety light-beam sensor can be used with different function packages. The function packages are determined by the equipment used.
Function package SP1
Protective operationBeam codingRestart interlockExternal device monitoring (EDM)Application diagnostic output (ADO)IO-LinkEquipment: Sender and receiver with SP1 system plug
Function package SP2
Function package SP1 includedManual adjustment of the protective field widthMuting (2-signal muting)Partial mutingEquipment: Sender with SP1 system plug and receiver with SP2 system plug
Function package DMM4
Function package SP2 includedTransmitting power adjustmentMuting (4-signal muting)Operating mode selectionInputs for safety sensors (SDI)Equipment: Sender and receiver with SP1 system plug and DMM4 extension module
System connection
Depending on system plug (M12 male connector, 5-pin or 8-pin)
Configuration method
DIP switch on system plugPC software via DMM4 (Safety Designer)
Display elements
Status LEDs
Protection class
III (IEC 61140)1)
Supply voltage VS
24 V DC (19.2 V DC ... 28.8 V DC)2)
Residual ripple
≤ 10 %3)
Dimensions
See dimensional drawing
Housing cross-section
30.7 mm x 34 mm
Housing
Aluminum extruded profile
Front screen
Polycarbonate, scratch-resistant coating
Enclosure rating
IP65 (IEC 60529)IP67 (IEC 60529)
Ambient operating temperature
–30 °C ... +55 °C
Storage temperature
–30 °C ... +70 °C
Air humidity
15 % ... 95 %, Non-condensing
Vibration resistance
5 … 150 Hz, 3,5 mm / 1 g (EN 60068-2-6)
Shock resistance
15 g / 6 ms (EN 60068-2-27)
Class
3M4 (IEC TR 60721-4-3)
EMC
According to IEC 61496-1, IEC 61000-6-2, IEC 61000-6-4
Type of light
Near-infrared (NIR), invisible
Wave length
850 nm
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
ULus approval
✔
cUL approval
✔
EC-Type-Examination approval
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.0
27272703
ECLASS 5.1.4
27272703
ECLASS 6.0
27272703
ECLASS 6.2
27272703
ECLASS 7.0
27272703
ECLASS 8.0
27272703
ECLASS 8.1
27272703
ECLASS 9.0
27272703
ECLASS 10.0
27272703
ECLASS 11.0
27272703
ECLASS 12.0
27272703
ETIM 5.0
EC001832
ETIM 6.0
EC001832
ETIM 7.0
EC001832
ETIM 8.0
EC001832
UNSPSC 16.0901
46171620
