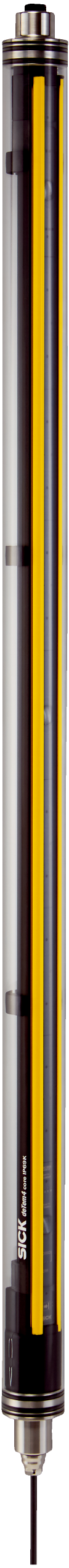

Safety light-beam sensors | deTem | M4C-EB03400A10 | Product version: deTem4 Core IP69K | Functional principle: Sender/receiver | System part: Receiver | Application: Areas with special hygiene requirements | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation | Scanning range: 15.5 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Connecting cable, 5-wire | Integrated laser alignment aid: no | Enclosure rating: IP65, IP66, IP67, IP69K | Items supplied: Receiver in IP69K protective housing with connecting cable, 15 m, safety instruction, Mounting instructions, Operating instructions for download
Product version
deTem4 Core IP69K
Application
Areas with special hygiene requirements
Functional principle
Sender/receiver
System part
Receiver
Scanning range category
Low scanning range
Scanning range
15.5 m
Minimum
0.5 m ... 12.5 m
Typical
0.5 m ... 15.5 m
Number of beams
3
Beam separation
400 mm
Response time
20 ms
Synchronization
Optical synchronization
Items supplied
Receiver in IP69K protective housing with connecting cable, 15 mSafety instructionMounting instructionsOperating instructions for download
Type
Type 4 (IEC 61496-1)
Safety integrity level
SIL 3 (IEC 61508)
Category
Category 4 (ISO 13849-1)
Performance level
PL e (ISO 13849-1)
PFHD(mean probability of a dangerous failure per hour)
3 x 10-9
TM(mission time)
20 years (ISO 13849-1)
Safe state in the event of a fault
At least one OSSD is in the OFF state.
System connection
Connecting cable, 5-wire
Length of cable
15 m
Cable diameter
5 mm
Cable material
PUR, halogen-free
Conductor cross section
0.34 mm²
Display elements
LEDs
Protection class
III (IEC 61140)1)
Supply voltage VS
24 V DC (19.2 V DC ... 28.8 V DC)2)
Residual ripple
≤ 10 %3)
Power consumption
≤ 4.32 W (DC)
Output signal switching devices (OSSDs)
2 PNP semiconductors, short-circuit protected, cross-circuit monitored4)
ON state, switching voltage HIGH
24 V DC (VS– 2.25 V DC ... VS)
OFF state, switching voltage LOW
≤ 2 V DC
Current-carrying capacity per OSSD
≤ 300 mA
Dimensions
See dimensional drawing
Housing diameter
50 mm
Housing
PMMA
End caps
Stainless steel 1.4404
Compensating element (membrane)
PA 6
Cable glands
Stainless steel 1.4404 including silicone seal
Weight
2,200 g (± 50 g)
Enclosure rating
IP65 (IEC 60529)IP66 (IEC 60529)IP67 (IEC 60529)IP69K (ISO 20653)
Ambient operating temperature
–30 °C ... +55 °C
Storage temperature
–30 °C ... +70 °C
Air humidity
15 % ... 95 %, Non-condensing
Vibration resistance
5 … 150 Hz, 3,5 mm / 1 g (EN 60068-2-6)
Shock resistance
15 g / 6 ms (EN 60068-2-27)
Class
3M4 (IEC TR 60721-4-3)
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
ECOLAB certificate
✔
UK-Type-Examination approval
✔
ULus approval
✔
cUL approval
✔
diversey certificate
✔
EC-Type-Examination approval
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.0
27272703
ECLASS 5.1.4
27272703
ECLASS 6.0
27272703
ECLASS 6.2
27272703
ECLASS 7.0
27272703
ECLASS 8.0
27272703
ECLASS 8.1
27272703
ECLASS 9.0
27272703
ECLASS 10.0
27272703
ECLASS 11.0
27272703
ECLASS 12.0
27272703
ETIM 5.0
EC001832
ETIM 6.0
EC001832
ETIM 7.0
EC001832
ETIM 8.0
EC001832
UNSPSC 16.0901
46171620
