SICK
M45S-034000EL0, M45E-034000FL0
Рекомендуемая замена:
Цена без НДС
Запросить цену

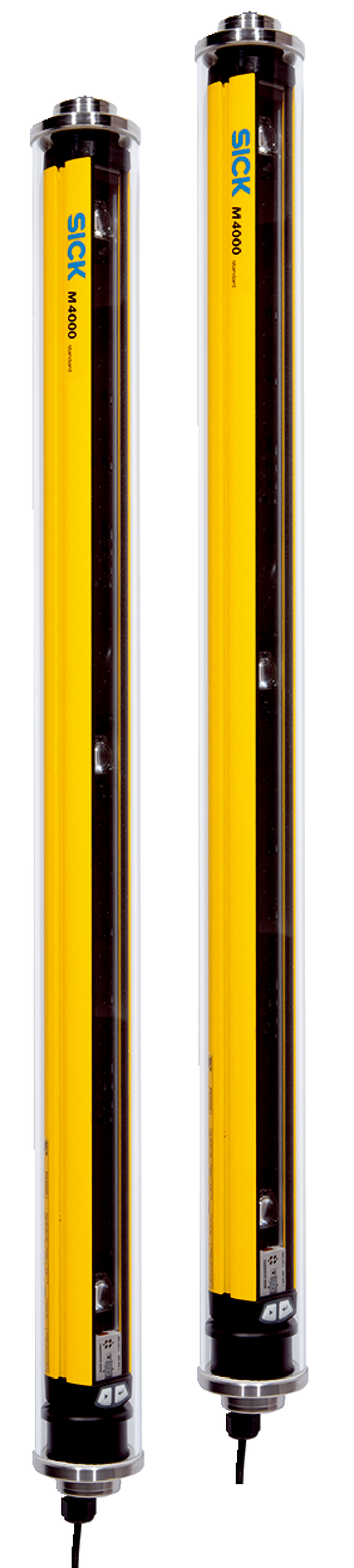

Safety light-beam sensors | M4000 Standard in IP69K Housing | M45S-034000EL0, M45E-034000FL0 | System part: Pair | Number of beams: 3 | Beam separation: 400 mm | Items supplied: Incl. IP69K-compliant cable, 15 m
System part
Pair
Scanning range
9 m ... 53 m
Number of beams
3
Beam separation
400 mm
Response time
10 ms
Synchronization
Optical synchronization
Items supplied
Incl. IP69K-compliant cable, 15 m
Type
Type 4 (IEC 61496-1)
Safety integrity level
SIL 3 (IEC 61508)
Category
Category 4 (EN ISO 13849)
Performance level
PL e (EN ISO 13849)
PFHD(mean probability of a dangerous failure per hour)
6.6 x 10-9(EN ISO 13849)
TM(mission time)
20 years (EN ISO 13849)
Safe state in the event of a fault
At least one OSSD is in the OFF state.
Beam coding
✔
Sender test
✔
Configurable application diagnostic output
✔
System connection
Connecting cable, 8-wire
Length of cable
15 m
Cable diameter
6 mm
Conductor cross section
0.25 mm²
Configuration method
None
Specialty
The devices are sealed in the IP69K Housing from the factory and cannot be re-configured.
Display elements
LEDs7-segment display
Protection class
III (IEC 61140)
Supply voltage VS
24 V DC (19.2 V DC ... 28.8 V DC)1)
Residual ripple
≤ 10 %2)
Power consumption
≤ 0.6 A3)≤ 0.2 A
Output signal switching devices (OSSDs)
2 PNP semiconductors, short-circuit protected, cross-circuit monitored4)
Dimensions
See dimensional drawing
Housing diameter
80 mm
Plastic tube
PMMA
End caps
Stainless steel
Compensating element (membrane)
PA 6
Cable glands
PA 6
Enclosure rating
IP69K, IP67, IP66, IP65 (EN 60529)
Ambient operating temperature
–30 °C ... +55 °C
Storage temperature
–30 °C ... +70 °C
Air humidity
15 % ... 95 %, Non-condensing
Vibration resistance
5 g, 10 Hz ... 55 Hz (EN 60068-2-6)
Shock resistance
10 g, 16 ms (EN 60068-2-27)
Wave length
850 nm
ECLASS 5.0
27272703
ECLASS 5.1.4
27272703
ECLASS 6.0
27272703
ECLASS 6.2
27272703
ECLASS 7.0
27272703
ECLASS 8.0
27272703
ECLASS 8.1
27272703
ECLASS 9.0
27272703
ECLASS 10.0
27272703
ECLASS 11.0
27272703
ECLASS 12.0
27272703
ETIM 5.0
EC001832
ETIM 6.0
EC001832
ETIM 7.0
EC001832
ETIM 8.0
EC001832
UNSPSC 16.0901
46171620
