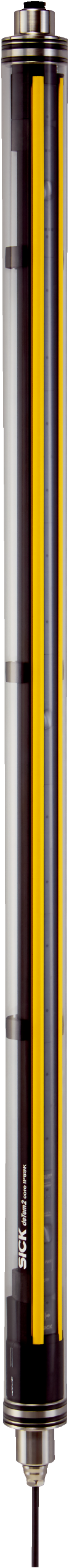

Safety light-beam sensors | deTem | M2C-SB0340LA10 | Product version: deTem2 Core IP69K | Functional principle: Sender/receiver | System part: Sender | Application: Areas with special hygiene requirements | Safety level: PL c, SIL 1, Type 2 | Functions: Protective operation | Scanning range: 15.5 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Connecting cable, 5-wire | Integrated laser alignment aid: no | Enclosure rating: IP65, IP66, IP67, IP69K | Items supplied: Sender in IP69K protective housing with connecting cable, 15 m
Product version
deTem2 Core IP69K
Application
Areas with special hygiene requirements
Functional principle
Sender/receiver
System part
Sender
Scanning range category
Low scanning range
Scanning range
15.5 m
Minimum
0.5 m ... 12.5 m
Typical
0.5 m ... 15.5 m
Number of beams
3
Beam separation
400 mm
Synchronization
Optical synchronization
Items supplied
Sender in IP69K protective housing with connecting cable, 15 m
Type
Type 2 (IEC 61496-1)
Safety integrity level
SIL 1 (IEC 61508)
Category
Category 2 (ISO 13849-1)
Performance level
PL c (ISO 13849-1)
PFHD(mean probability of a dangerous failure per hour)
3 x 10-9
TM(mission time)
20 years (ISO 13849-1)
Safe state in the event of a fault
At least one OSSD is in the OFF state.
System connection
Connecting cable, 5-wire
Length of cable
15 m
Cable diameter
5 mm
Cable material
PUR, halogen-free
Conductor cross section
0.34 mm²
Display elements
LEDs
Protection class
III (IEC 61140)1)
Supply voltage VS
24 V DC (19.2 V DC ... 28.8 V DC)2)
Residual ripple
≤ 10 %3)
Power consumption
≤ 1.44 W (DC)
Dimensions
See dimensional drawing
Housing diameter
50 mm
Housing
PMMA
End caps
Stainless steel 1.4404
Compensating element (membrane)
PA 6
Cable glands
Stainless steel 1.4404 including silicone seal
Kaal
2,190 g (± 50 g)
Enclosure rating
IP65 (IEC 60529)IP66 (IEC 60529)IP67 (IEC 60529)IP69K (ISO 20653)
Ambient operating temperature
–30 °C ... +55 °C
Storage temperature
–30 °C ... +70 °C
Air humidity
15 % ... 95 %, Non-condensing
Vibration resistance
5 … 150 Hz, 3,5 mm / 1 g (EN 60068-2-6)
Shock resistance
15 g / 6 ms (EN 60068-2-27)
Class
3M4 (IEC TR 60721-4-3)
Type of light
Near-infrared (NIR), invisible
