Customized printing and packaging Male straight – female straight M12 – M12, 5-pole with cable sleeves Zinc die casting, save-cover coated Plastic...
Weight
0,104 kg
Country of origin
CN
Model designation
MSBL0-A-U258_2.0-DS-XH-S36
Cable length
2,00 m

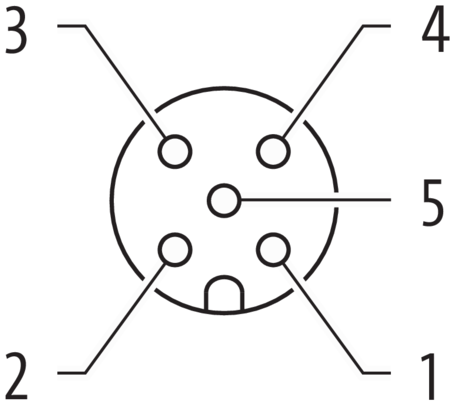

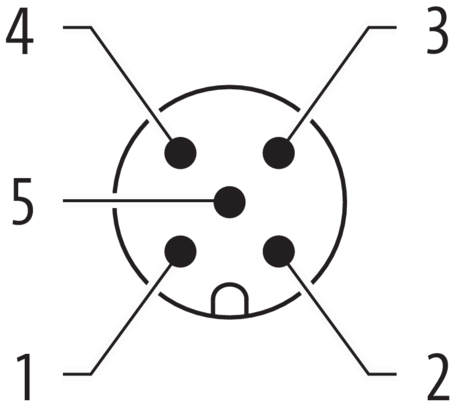

Family construction form
M12
No. of poles
5
Mounting method
inserted, screwed
Material contact
Copper alloy
Coating contact
gold plated
Operating voltage AC max.
125 V
Operating voltage DC max.
125 V
Pollution Degree
3
Rated surge voltage
1,5 kV
Material group (IEC 60664-1)
I
Operating temperature min.
-25 °C
