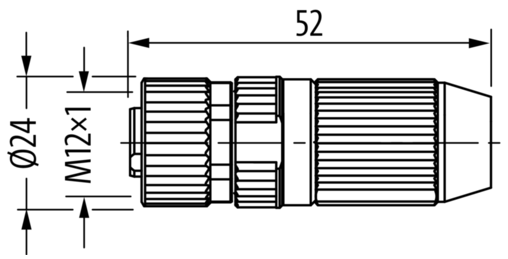

M12 (female) 5-pole, L-coded Field-wireable IDC terminals 0.75...1.5 mm² Sealing range (cable Ø) 5.8...13.5 mm Good chemical and oil resistance (oil...
Weight
0,095 kg
Country of origin
RO
Model designation
MSWBLL0-U
Family construction form
M12P

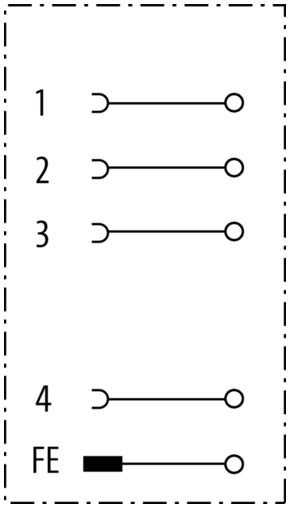

No. of poles
5
Coding
L
Gender
female
Mounting method
inserted, screwed, Shaking protection
Cable outlet
straight
Material contact
Copper
Operating voltage DC max.
63 V
Current operating per contact max.
12 A
Status indication LED
No
Connection cross section max.
1,5 mm²
Tightening torque
0,6 Nm
