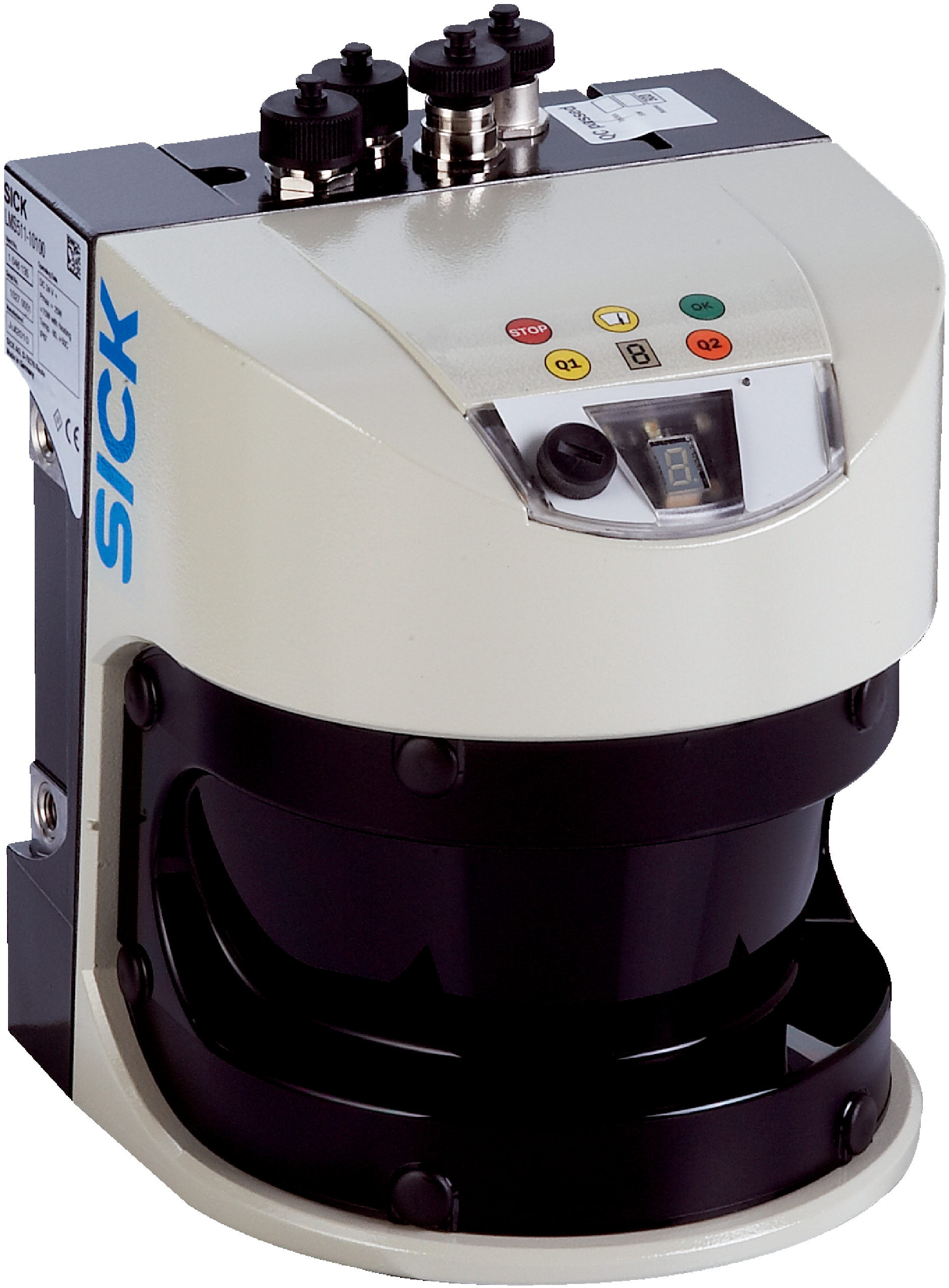

Flow sensors | Bulkscan | LMS511-20190 | Output signal: Ethernet, Digital inputs and digital outputs, USB auxiliary interface, RS-232/RS-422 | Connection type: M12 round connector | Communication interface: Serial, USB | Display: no | Laser class: 1, eye-safe (IEC 60825-1:2014) | Working range: 0.5 m ... 20 m | Switching outputs: 6 | Supply voltage scanner/heater: 19.2 V ... 28.8 V | Enclosure rating: IP67 | Calibration certificate: no
Measurement principle
Laser run time technology
Medium
Bulk solids
Communication interface
Serial, RS-232USB, RS-422
Light source
Infrared (905 nm)
Laser class
1, eye-safe (IEC 60825-1:2014)
Aperture angle
190°
Scanning frequency
35 Hz50 Hz75 Hz
Bandwidth
No limit
Heating
Yes
Working range
0.5 m ... 20 m
Amount of evaluated echoes
5
Response time
13 ms, 20 ms, 28 ms
Average filter
0 s ... 3,600 s
Max. conveyor speed
≤ 30 m/s
Number
1, 1, 1
Protocol
USB 2.0RS-232/RS-422TCP/IP
Data transmission rate
500 kBaud500 kBaud 100 Mbit/s
Switching inputs
2 + Encoder
Switching outputs
6
Analog signals
Available with separate accessory BAM100
Optical indicators
5 LEDs Additional 7-segment display
Supply voltage
19.2 V ... 28.8 V
Power consumption
22 W + 55 W heating (typical)
Residual ripple
± 5 %
Protection class
✔
Connection type
M12 round connector
Output signal
EthernetDigital inputs and digital outputsUSB auxiliary interfaceRS-232/RS-422
Enclosure rating
IP67 (IEC 60529)
MTTF
> 100 years
Switch-on peak current
2 A
Operating current scanner
≤ 1.3 A
Switch-on time
≤ 60 s
Weight
3.7 kg
Housing color
Gray (RAL 7032)
Dimensions
160 mm x 155 mm x 185 mm
Distance of the sensor to the bulk solid
≥ 0.5 m
Ambient operating temperature
–40 °C ... +60 °C
Electromagnetic compatibility (EMC)
IEC 61000-6-2:2016-08 / IEC 61000-6-3:2006-07 / EN 61000-6-2:2005 / EN 61000-6-3 / A1 2011
Ambient temperature, storage
–40 °C ... +70 °C
Ambient light immunity
70,000 lx
ECLASS 5.0
27200413
ECLASS 5.1.4
27200413
ECLASS 6.0
27200413
ECLASS 6.2
27200413
ECLASS 7.0
27200413
ECLASS 8.0
27200413
ECLASS 8.1
27200413
ECLASS 9.0
27200413
ECLASS 10.0
27200413
ECLASS 11.0
27200413
ECLASS 12.0
27200413
ETIM 5.0
EC002580
ETIM 6.0
EC002580
ETIM 7.0
EC002580
ETIM 8.0
EC002580
UNSPSC 16.0901
41112501
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cTUVus certificate
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
