Fiber-optic sensors | Fiber-optic cables | LLTE-R1300111020E3 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve, 90° deflection | Fiber length: 2,000 mm | Thread diameter (housing): M3 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel
Device type
Fiber-optic cables
Functional principle
Proximity system
Fiber-optic head design
Threaded sleeve, 90° deflection
Application
Standard
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T)
Sensing range max.
Depending on the fiber optic amplifier used
Angle of dispersion
60°
Integrated lens
No
Compatibility tip adapters
Yes
Compatibility with infrared light
No
Optical fiber cable can be shortened
✔
Adapter end sleeves required
Yes (1 x LLAC-AB10 / 1 x LLAC-AB13)
Items supplied

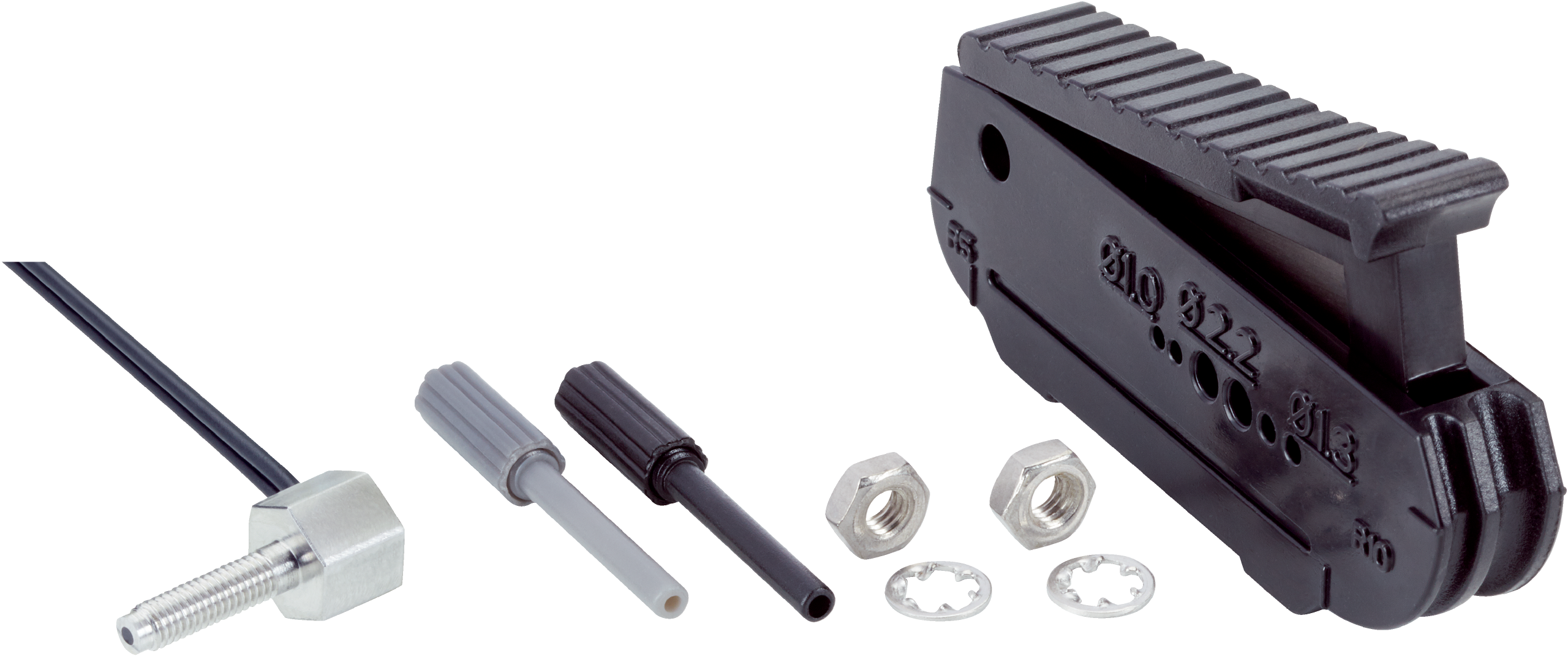

1 x fiber cutter (LLAC-FC), M3 mounting set (2 x M3 nut + 2 x M3 washer), 2 x fiber adapter bushing (1 x LLAC-AB10 + 1 x LLAC-AB13)
Light emission
Radial
Thread diameter (housing)
M3
Fiber length
2,000 mm
Bending radius
5 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
2.2 mm
Fiber arrangement
Coaxial
Core structure
Ø 0,5 mm Coaxial
Optical fiber head
Stainless steel
Sheath
Polyethylen (PE)
Fibers
PMMA
Poids
22 g
Ambient operating temperature
–40 °C ... +60 °C
Operating mode 16 µs
25 mm
Operating mode 70 µs
60 mm
Operating mode 2 ms
250 mm
Operating mode 8 ms
280 mm
Operating mode 50 µs
40 mm
Operating mode 250 µs
65 mm
RoHS manufacturer declaration
✔
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
