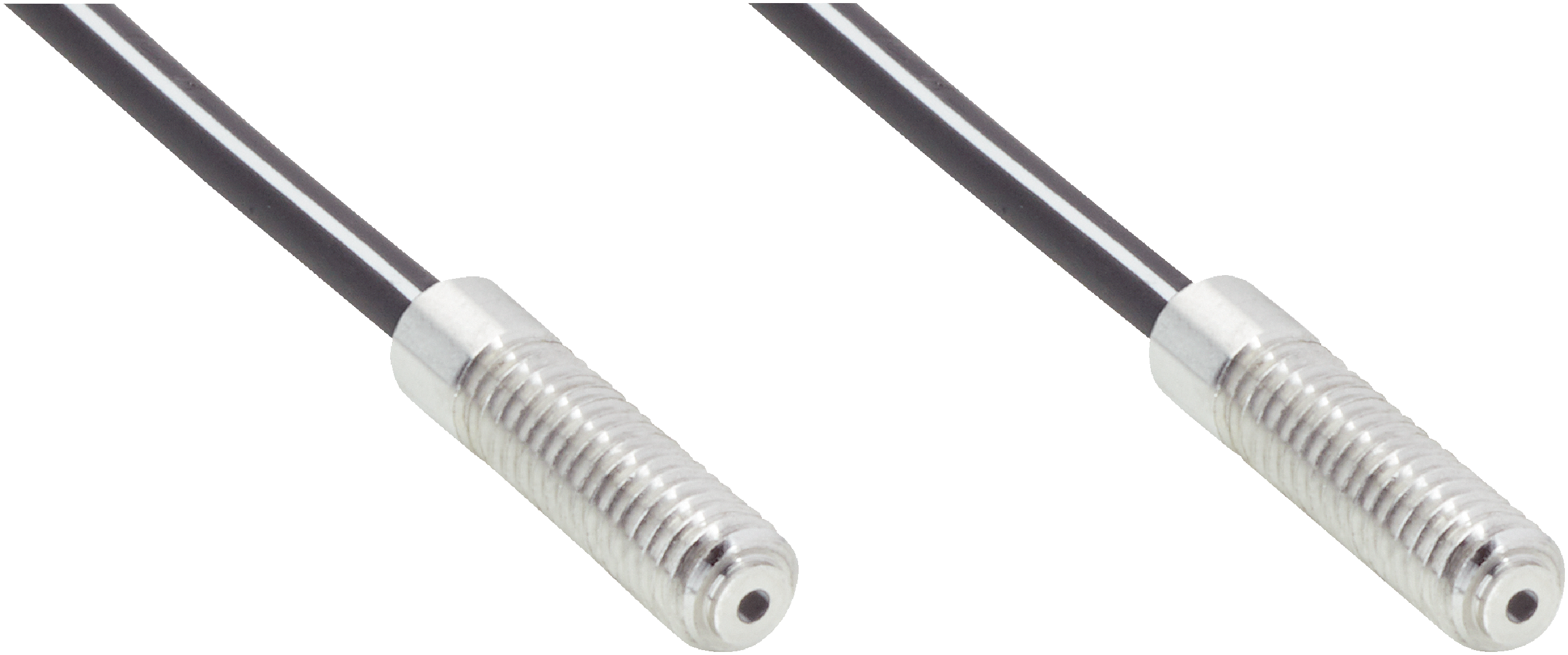

Fiber-optic sensors | Fiber-optic cables | LLSE-A1400111050C4 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve | Fiber length: 5,000 mm | Thread diameter (housing): M4 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel
Device type
Fiber-optic cables
Functional principle
Through-beam system, consisting of a sender and a receiver
Fiber-optic head design
Threaded sleeve
Application
Standard
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
Sensing range max.
Depending on the fiber optic amplifier used
Angle of dispersion
60°
Integrated lens
No
Compatibility tip adapters
Yes
Compatibility with infrared light
No
Optical fiber cable can be shortened
✔
Adapter end sleeves required
No
Items supplied
1 x fiber cutter (LLAC-FC), M4 mounting set (4 x M4 nut + 4 x M4 washer)
Light emission
Axial
Thread diameter (housing)
M4
Fiber length
5,000 mm
Bending radius
15 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
2.2 mm
Fiber arrangement
Singlefiber
Core structure
Ø 1,0 mm Singlefiber
Optical fiber head
Stainless steel
Sheath
Polyethylen (PE)
Fibers
PMMA
Kaal
59 g
Ambient operating temperature
–40 °C ... +60 °C
Operating mode 16 µs
120 mm
Operating mode 70 µs
345 mm
Operating mode 2 ms
1,230 mm
Operating mode 8 ms
2,295 mm
Operating mode 50 µs
335 mm
Operating mode 250 µs
510 mm
RoHS manufacturer declaration
✔
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
