Fiber-optic sensors | Fiber-optic cables | LL3-TS22M | Functional principle: Through-beam system | Fiber-optic head design: 90° deflection, Smooth sleeve | Fiber length: 2,000 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141), protective cladding for fiber head
Device type
Fiber-optic cables
Functional principle
Through-beam system, consisting of a sender and a receiver

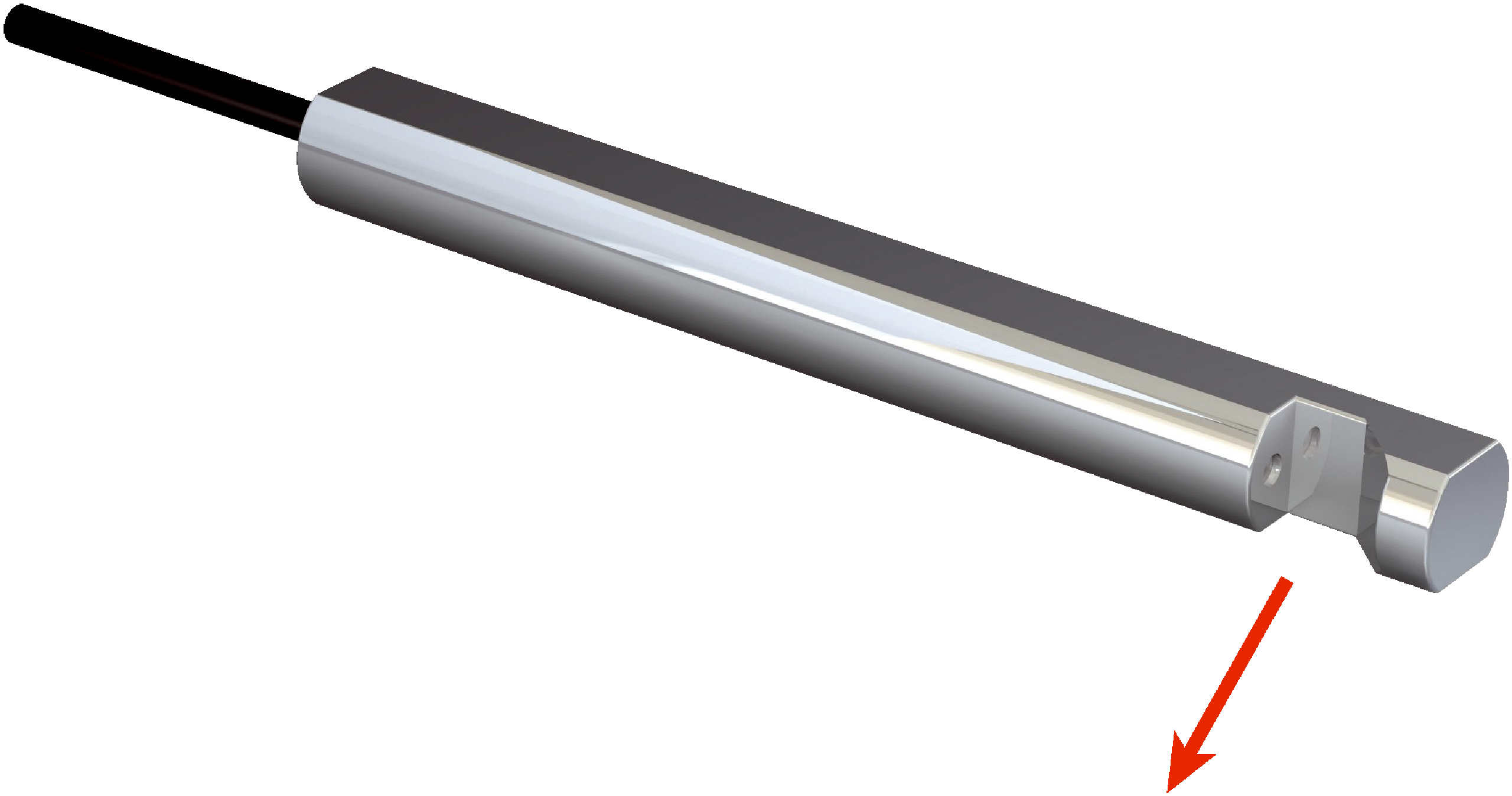

Fiber-optic head design
90° deflection, Smooth sleeve
Application
Heat-resistant (≥100°C)
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T)
Sensing range max.
3,600 mm (Sensing range of WLL80 at 8 ms)
Minimal object diameter
0.05 mm1)
Angle of dispersion
7°
Integrated lens
Yes
Compatibility tip adapters
No
Compatibility with infrared light
No
Optical fiber cable can be shortened
✔
Adapter end sleeves required
Yes
Included with delivery
Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141), protective cladding for fiber head
Light emission
Radial
Fiber length
2,000 mm
Bending radius
10 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
1 mm
Fiber arrangement
Singlefiber
Core structure
Ø 0,5 mm Singlefiber
Optical fiber head
Stainless steel
Sheath
Polyethylen (PE)
Fibers
Polymethylmethacrylat (PMMA)
Вес
22 g
Ambient operating temperature
–40 °C ... +105 °C
Operating mode 4 ms
3,600 mm
Operating mode 500 µs
3,600 mm
Operating mode 1 ms
3,600 mm
Operating mode 16 µs
220 mm
Operating mode 70 µs
760 mm
Operating mode 2 ms
2,900 mm
Operating mode 8 ms
4,000 mm
Note
Sensing ranges related to fiber-optic sensors with type of light: visible red light
Operating mode 50 µs
1,040 mm
Operating mode 250 µs
1,740 mm
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
