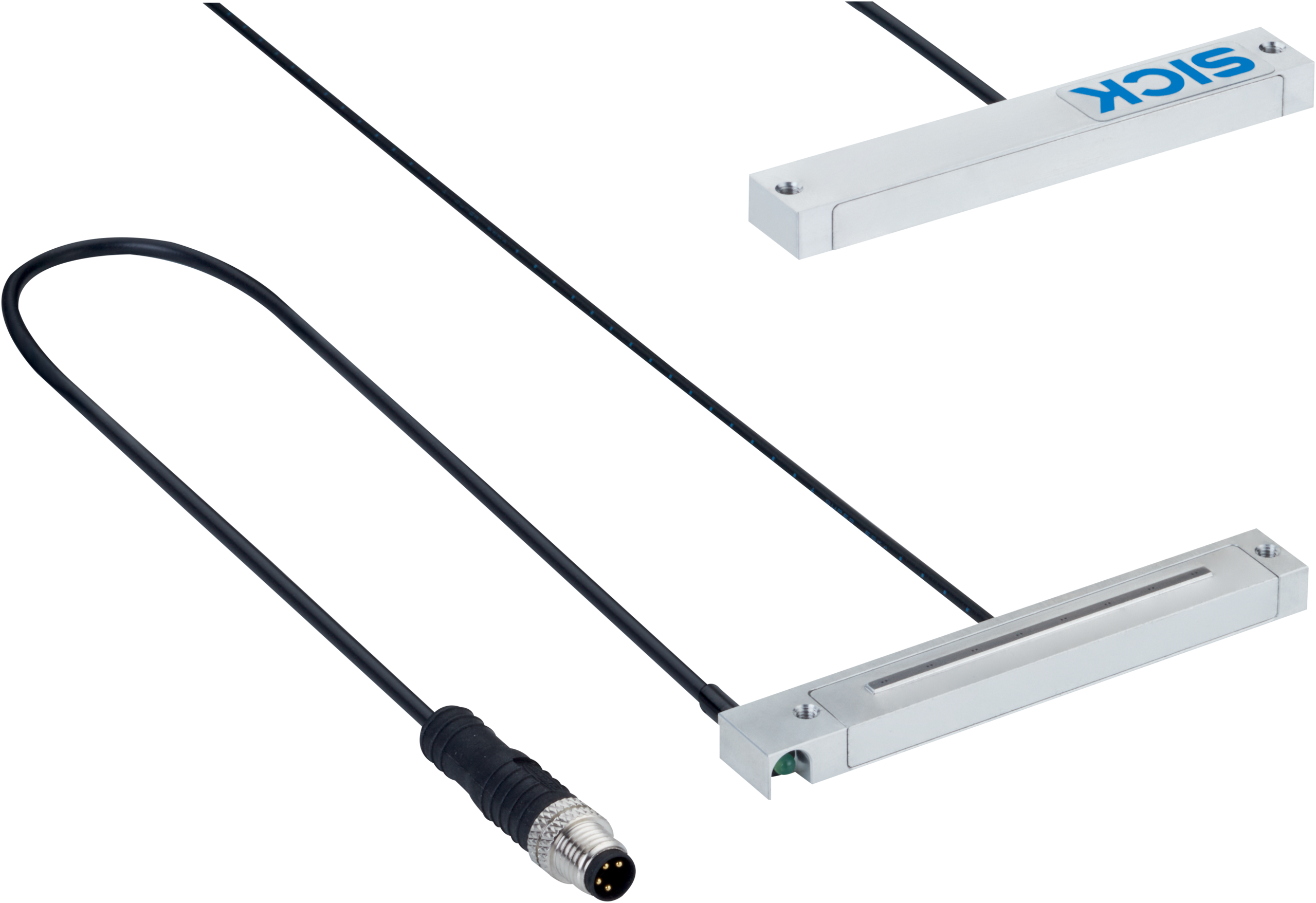

Fiber-optic sensors | Fiber-optic cables | LL3-TS15S01 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90° deflection, Array | Fiber length: 1,410 mm | Fiber-optic head array width: 50 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Aluminum | Included with delivery: FC fiber cutter (5304141)
Device type
Fiber-optic cables
Functional principle
Through-beam system, consisting of a sender and a receiver
Fiber-optic head design
Flat type, 90° deflection, Array
Application
Area detection
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
Sensing range max.
Depending on the fiber optic amplifier used
Angle of dispersion
60°
Integrated lens
No
Compatibility tip adapters
No
Compatibility with infrared light
No
Optical fiber cable can be shortened
✔
Adapter end sleeves required
No
Included with delivery
FC fiber cutter (5304141)
Light emission
Radial
Fiber-optic head array width
50 mm
Fiber length
1,410 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
2.2 mm
Fiber arrangement
Multi-fiber
Core structure
Multi-fiber
Optical fiber head
Aluminum (Al)
Sheath
Polyethylen (PE)
Weight
52 g
Operating mode 50 µs
365 mm
Operating mode 250 µs
585 mm
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
