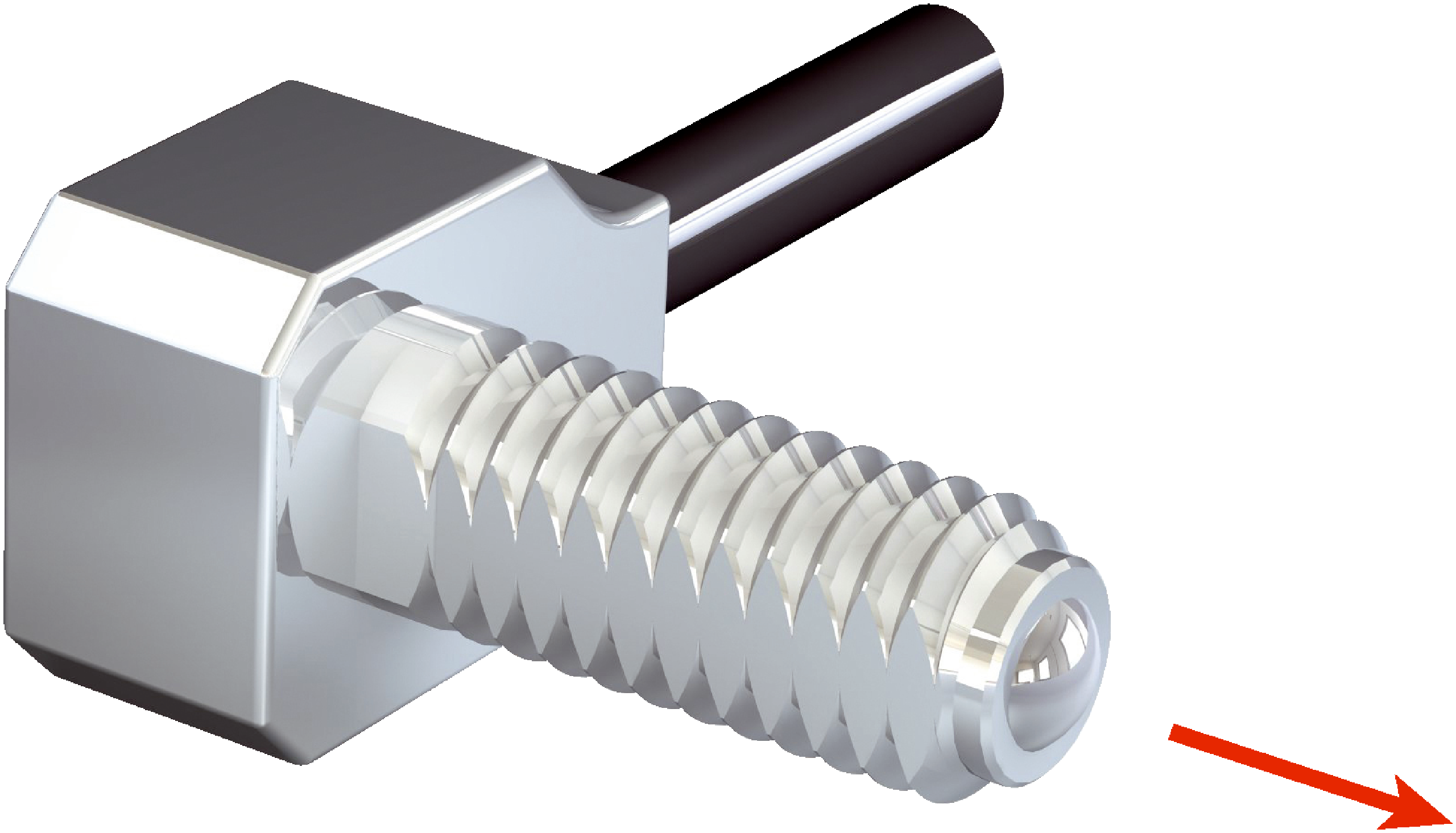

Fiber-optic sensors | Fiber-optic cables | LL3-TR09 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve, 90° deflection | Fiber length: 2,000 mm | Thread diameter (housing): M4 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Zinc with nickel coating | Included with delivery: Mounting, 2 x M4 hexagon nut, 2 x washer, FC fiber cutter (5304141)
Device type
Fiber-optic cables
Functional principle
Through-beam system, consisting of a sender and a receiver
Fiber-optic head design
Threaded sleeve, 90° deflection
Application
Lcd / clear material / semiconductor, high flexible (static)
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
Sensing range max.
3,600 mm (Sensing range of WLL80 at 8 ms)
Minimal object diameter
0.04 mm1)
Angle of dispersion
16°
Integrated lens
Yes
Compatibility tip adapters
No
Compatibility with infrared light
No
Optical fiber cable can be shortened
✔
Adapter end sleeves required
No
Included with delivery
Mounting, 2 x M4 hexagon nut, 2 x washer, FC fiber cutter (5304141)
Light emission
Radial
Thread diameter (housing)
M4
Fiber length
2,000 mm
Bending radius
1 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
2.2 mm
Fiber arrangement
Multi-fiber
Core structure
151 x Ø 0,075 mm Multi-fiber
Optical fiber head
Zinc with nickel coating
Sheath
Polyethylen (PE)
Fibers
Polymethylmethacrylat (PMMA)
Weight
52 g
Ambient operating temperature
–40 °C ... +60 °C
Operating mode 4 ms
3,600 mm
Operating mode 500 µs
3,600 mm
Operating mode 1 ms
3,600 mm
Operating mode 16 µs
360 mm
Operating mode 70 µs
1,200 mm
Operating mode 2 ms
4,000 mm
Operating mode 8 ms
4,000 mm
Note
Sensing ranges related to fiber-optic sensors with type of light: visible red light
Operating mode 50 µs
1,220 mm
Operating mode 250 µs
1,970 mm
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
