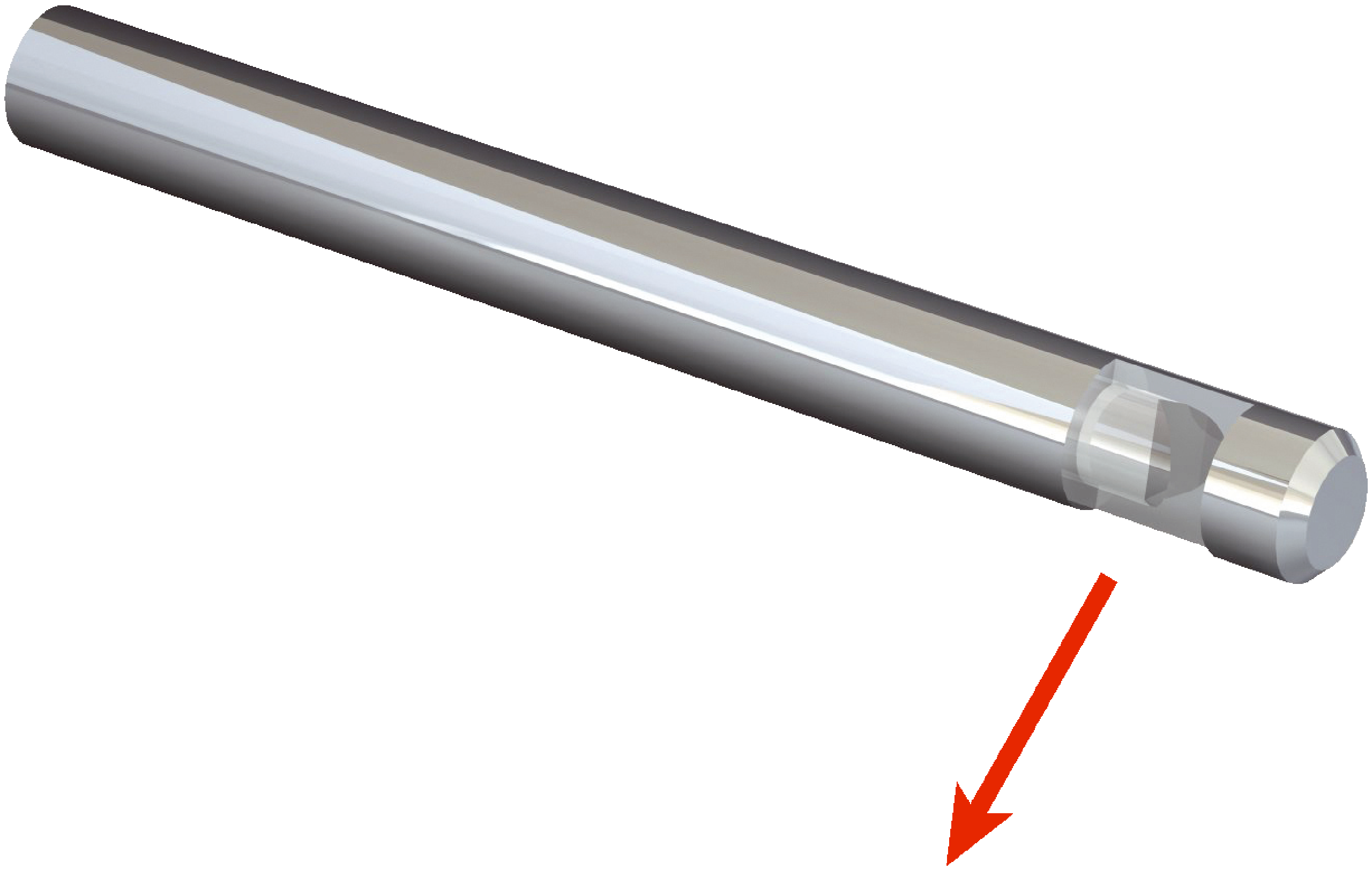

Fiber-optic sensors | Fiber-optic cables | LL3-TK34 | Functional principle: Through-beam system | Fiber length: 2,000 mm | Smooth sleeve diameter: 3 mm
Device type
Fiber-optic cables
Functional principle
Through-beam system, consisting of a sender and a receiver
Application
Standard
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T)
Sensing range max.
3,590 mm (Sensing range of WLL80 at 8 ms)
Minimal object diameter
0.2 mm1)
Compatibility tip adapters
No
Compatibility with infrared light
No
Adapter end sleeves required
No
Light emission
Axial
Smooth sleeve diameter
3 mm
Optical fiber taper diameter
≥ 1.5 mm
Optical fiber taper length after 2 mm
≥ 65 mm
Fiber length
2,000 mm
Bending radius
25 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
2.2 mm
Fiber arrangement
Singlefiber
Core structure
Ø 1,0 mm Singlefiber
Optical fiber head
Stainless steel
Sheath
Polyethylen (PE)
Fibers
Polymethylmethacrylat (PMMA)
Weight
31 g
Ambient operating temperature
–40 °C ... +70 °C
Operating mode 500 µs
1,670 mm
Operating mode 1 ms
1,895 mm
Operating mode 16 µs
120 mm
Operating mode 70 µs
400 mm
Operating mode 2 ms
1,800 mm
Operating mode 8 ms
2,750 mm
Note
Sensing ranges related to fiber-optic sensors with type of light: visible red light
Operating mode 50 µs
340 mm
Operating mode 250 µs
570 mm
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
