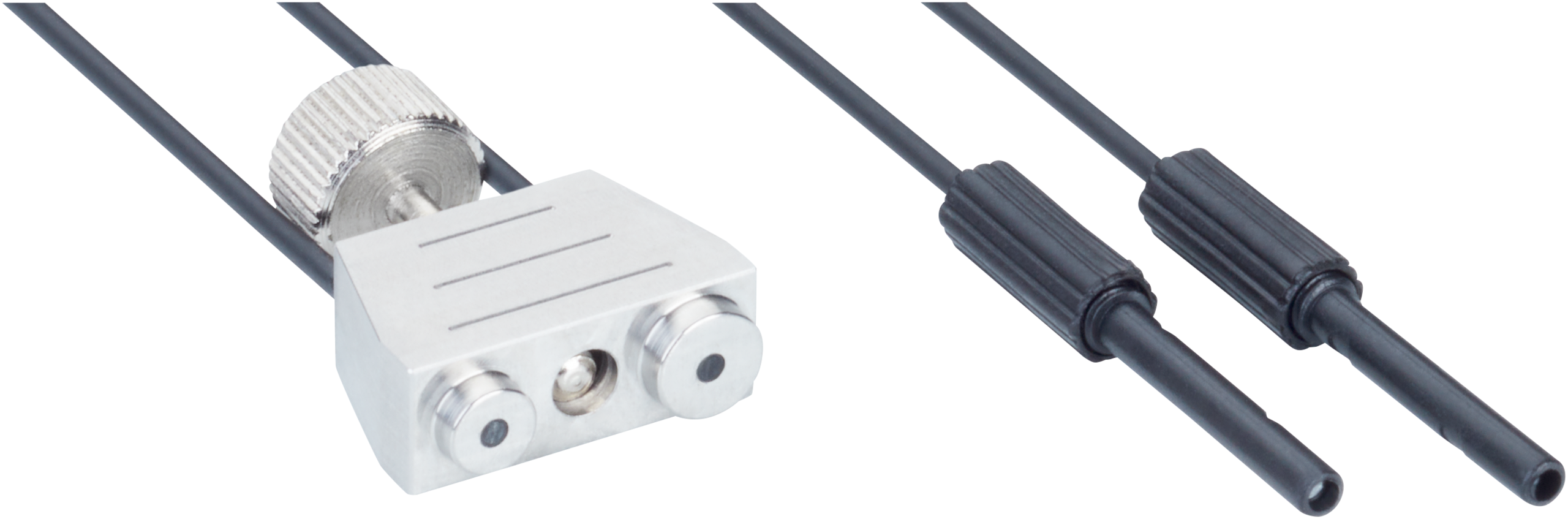

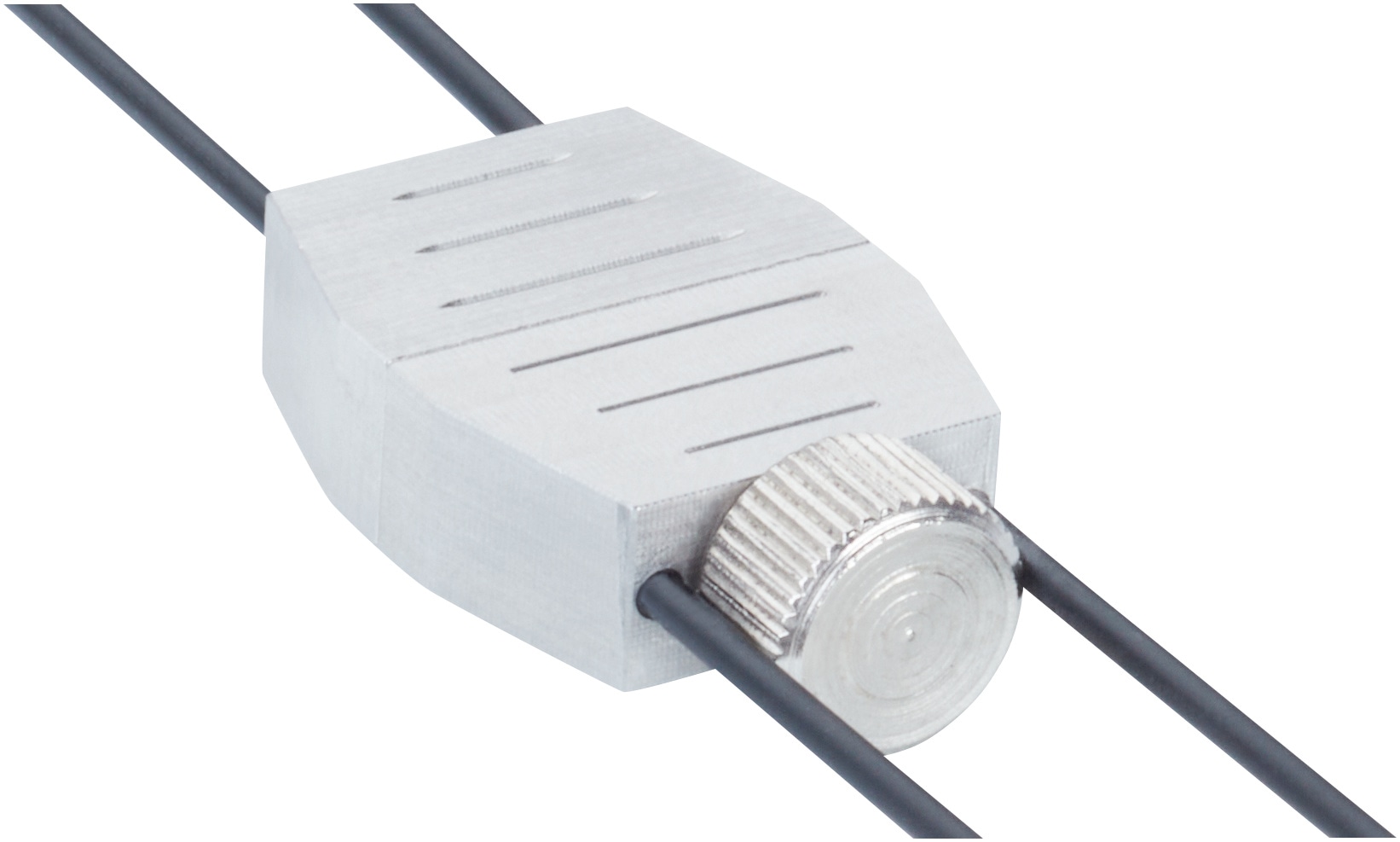

Fiber-optic sensors | Fiber-optic cables | LL3-KX023000 | Fiber length: 3,000 mm | Fiber material: Plastic | Jacket material: Plastic | Included with delivery: Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141)
Device type
Fiber-optic cables
Application
Standard
Special features
Compatibility to combination product LL3-KD021000
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T)
Sensing range max.
Depending on the fiber optic amplifier used
Integrated lens
No
Compatibility tip adapters
No
Compatibility with infrared light
No
Optical fiber cable can be shortened
✔
Adapter end sleeves required
Yes
Included with delivery
Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141)
Light emission
Axial
Fiber length
3,000 mm
Bending radius
2 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
1.3 mm
Core structure
2 x Ø 1 mm
Sheath
Polyethylen (PE)
Fibers
Polymethylmethacrylat (PMMA)
Weight
32 g
Ambient operating temperature
–40 °C ... +60 °C
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
