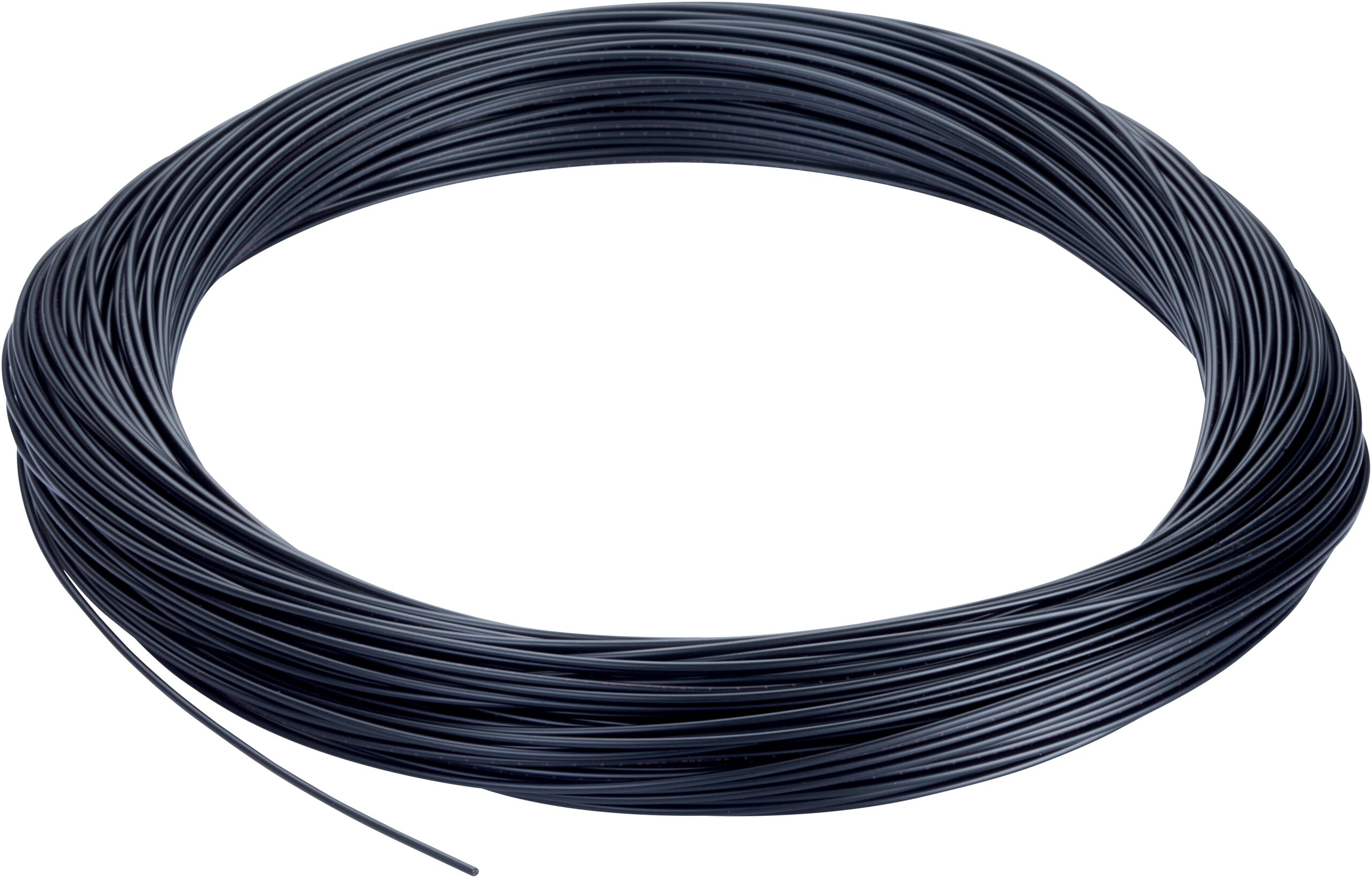

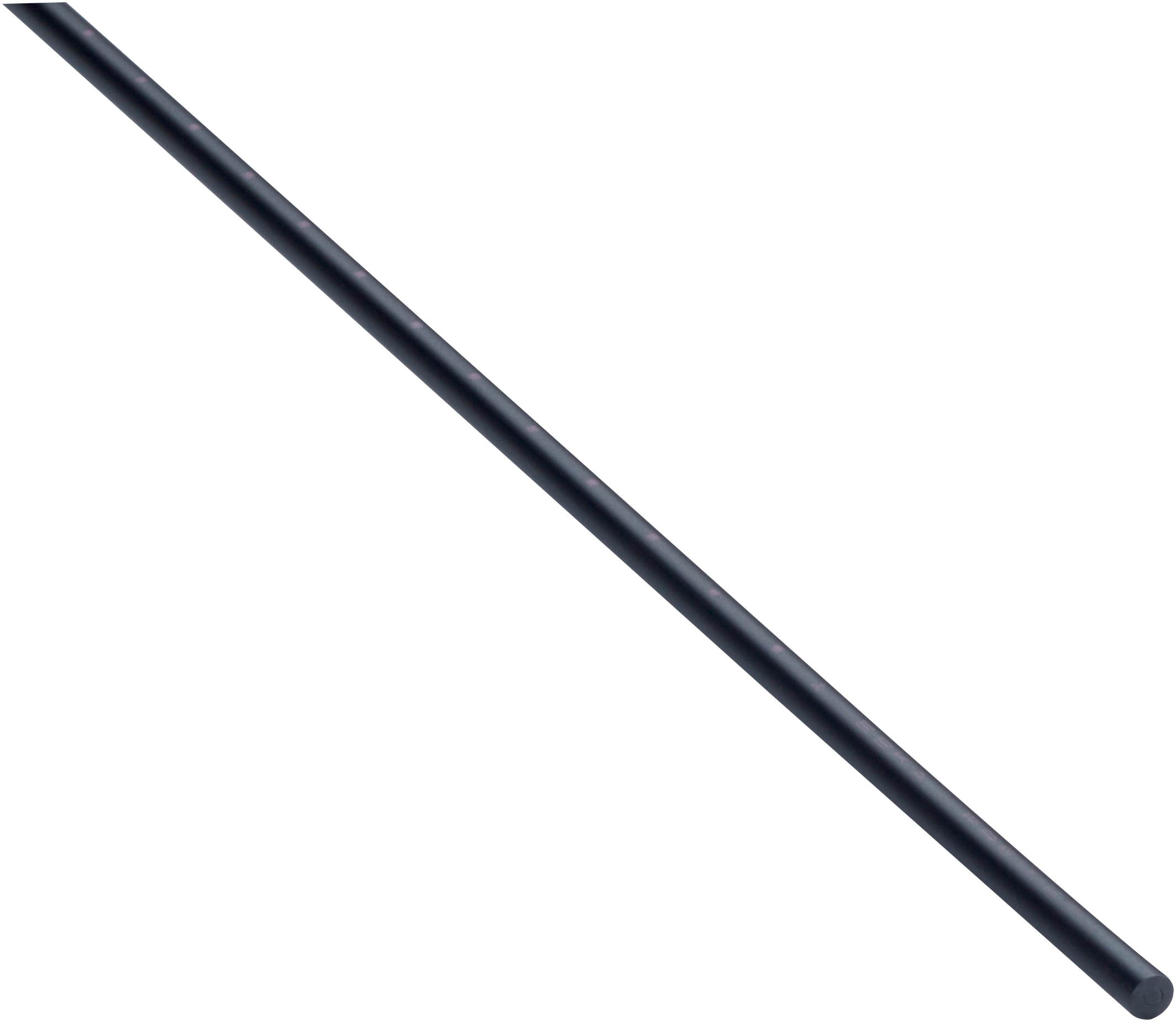

Fiber-optic sensors | Fiber-optic cables | LL3-GH4001 | Functional principle: Through-beam system | Fiber-optic head design: Without | Fiber length: 100,000 mm | Fiber material: Plastic | Jacket material: Plastic | Included with delivery: 100 m fiber cable
Device type
Fiber-optic cables
Functional principle
Through-beam system
Fiber-optic head design
Without
Application
Standard
Special features
100 m optical fiber cable without fiber optic head for cutting to any length
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T)
Sensing range max.
Depending on the fiber optic amplifier used
Angle of dispersion
60°
Integrated lens
No
Compatibility tip adapters
No
Compatibility with infrared light
No
Optical fiber cable can be shortened
✔
Adapter end sleeves required
No
Included with delivery
100 m fiber cable
Light emission
Axial
Fiber length
100,000 mm
Bending radius
25 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
2.2 mm
Fiber arrangement
Singlefiber
Core structure
Ø 1 mm Singlefiber
Sheath
Polyethylen (PE)
Fibers
Polymethylmethacrylat (PMMA)
Weight
39 g
Ambient operating temperature
–55 °C ... +75 °C
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ECLASS 13.0
27270905
ECLASS 14.0
27270905
ECLASS 15.0
27270905
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
ETIM 9.0
EC002651
ETIM 10.0
EC002651
UNSPSC 091201.0
39121528
UNSPSC 100501.0
39121528
UNSPSC 111201.0
39121528
UNSPSC 120901.0
39121528
UNSPSC 131201.0
39121528
UNSPSC 140801.0
39121528
UNSPSC 151101.0
39121528
UNSPSC 160901.0
39121528
UNSPSC 171001.0
39121528
UNSPSC 180801.0
39121528
UNSPSC 190501.0
39121528
UNSPSC 200601.0
39121528
UNSPSC 210901.0
39121528
UNSPSC 220601.0
39121528
UNSPSC 230701.0
39121528
UNSPSC 240301.0
39121528
UNSPSC 250901.0
39121528
UNSPSC 260801.0
39121528
