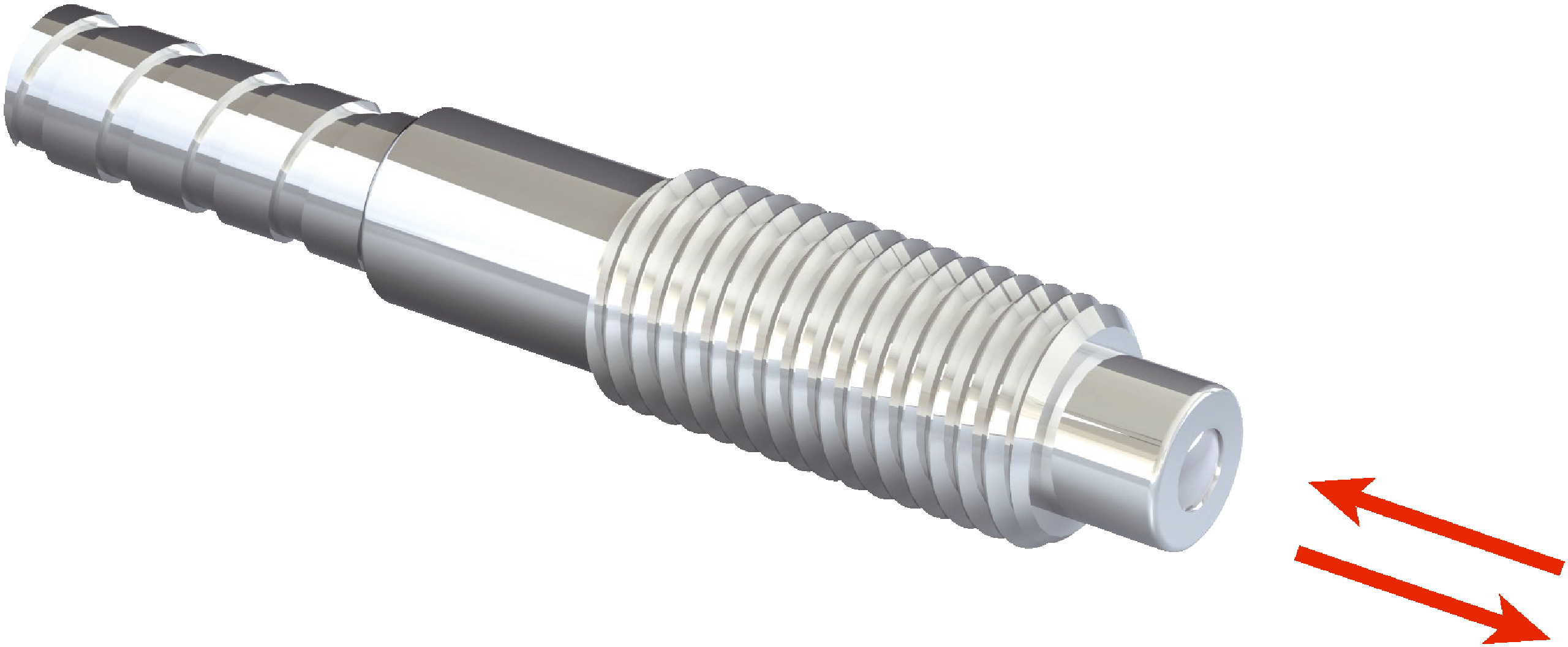

Fiber-optic sensors | Fiber-optic cables | LL3-DW0110000 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 10,000 mm | Thread diameter (housing): M6 | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 1 x washer
Device type
Fiber-optic cables
Functional principle
Proximity system
Fiber-optic head design
Threaded sleeve
Application
Heat-resistant (≥100°C)
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T)
Sensing range max.
Depending on the fiber optic amplifier used
Minimal object diameter
0.02 mm1)
Angle of dispersion
60°
Integrated lens
No
Compatibility tip adapters
No
Compatibility with infrared light
Yes2)
Adapter end sleeves required
No
Included with delivery
Mounting, 2 x M6 hexagon nut, 1 x washer
Light emission
Axial
Thread diameter (housing)
M6
Optical fiber taper diameter
≥ 4 mm
Optical fiber taper length after 2 mm
≥ 3 mm
Fiber length
10,000 mm
Bending radius
25 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
2.2 mm
Optical fiber head
Stainless steel
Sheath
Stainless steel
Fibers
Glass
Weight
44 g
Ambient operating temperature
–40 °C ... +210 °C
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
