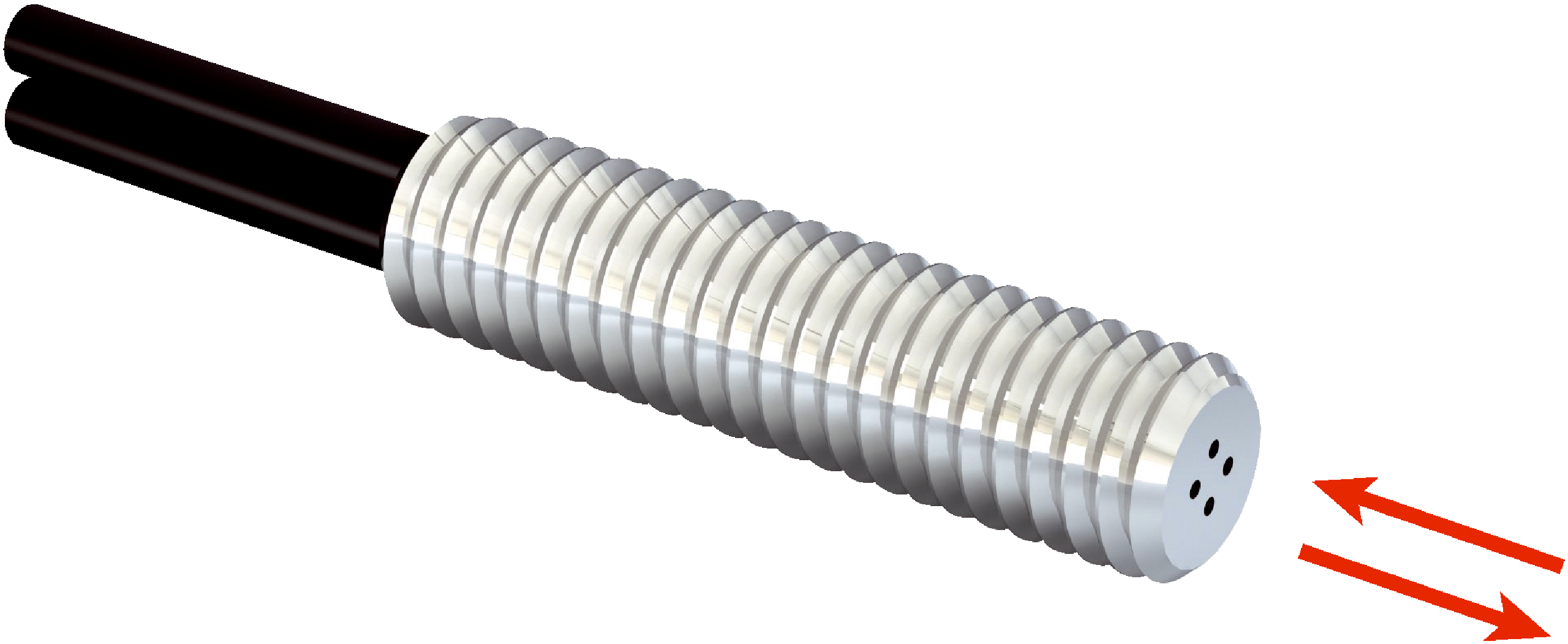

Fiber-optic sensors | Fiber-optic cables | LL3-DR08 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M3 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M3 hexagon nut, 1 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141)
Device type
Fiber-optic cables
Functional principle
Proximity system
Fiber-optic head design
Threaded sleeve
Application
High flexible (static), Robotics (dynamic flexible)
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T)
Sensing range max.
200 mm (Sensing range of WLL80 at 8 ms)
Minimal object diameter
0.02 mm1)
Angle of dispersion
60°
Integrated lens
No
Compatibility tip adapters
No
Compatibility with infrared light
No
Optical fiber cable can be shortened
✔
Adapter end sleeves required
Yes
Included with delivery
Mounting, 2 x M3 hexagon nut, 1 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141)
Light emission
Axial
Thread diameter (housing)
M3
Fiber length
2,000 mm
Bending radius
4 mm
Dynamic flexibility (robotics)
Yes
Outside diameter, optical fiber cable connection
1 mm
Fiber arrangement
Multi-fiber
Core structure
S: 2 x Ø 0,25 mm R: 2 x Ø 0,25 mm Multi-fiber
Optical fiber head
Stainless steel
Sheath
Polyethylen (PE)
Fibers
Polymethylmethacrylat (PMMA)
Weight
41 g
Ambient operating temperature
–40 °C ... +60 °C
Operating mode 500 µs
65 mm
Operating mode 1 ms
80 mm
Operating mode 16 µs
8 mm
Operating mode 70 µs
25 mm
Operating mode 2 ms
90 mm
Operating mode 8 ms
98 mm
Note
Sensing ranges related to fiber-optic sensors with type of light: visible red light
Operating mode 50 µs
10 mm
Operating mode 250 µs
30 mm
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
