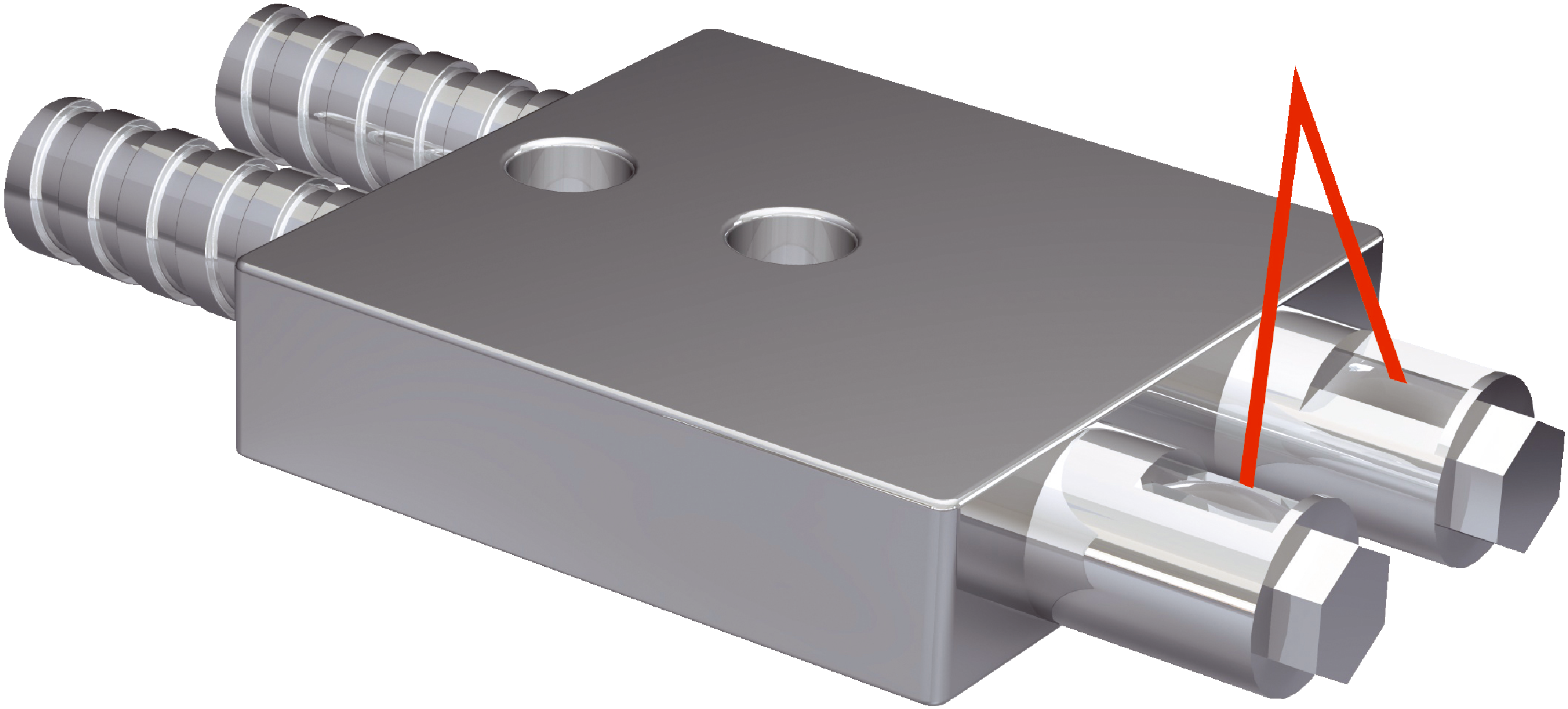

Fiber-optic sensors | Fiber-optic cables | LL3-DH06 | Functional principle: Proximity system | Fiber-optic head design: Flat type, 90° deflection | Fiber length: 2,000 mm | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Stainless steel
Device type
Fiber-optic cables
Functional principle
Proximity system
Fiber-optic head design
Flat type, 90° deflection
Application
Lcd / clear material / semiconductor
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T)
Sensing range max.
76 mm (Sensing range of WLL80 at 8 ms)
Minimal object diameter
0.02 mm1)
Angle of dispersion
81°
Integrated lens
Yes
Compatibility tip adapters
No
Compatibility with infrared light
Yes2)
Adapter end sleeves required
No
Light emission
Radial
Fiber length
2,000 mm
Bending radius
25 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
2.2 mm
Fiber arrangement
Singlefiber
Core structure
2 x Ø 1,2 mm Singlefiber
Optical fiber head
Stainless steel
Sheath
Stainless steel
Fibers
Glass
Weight
0 g
Ambient operating temperature
–30 °C ... +300 °C
Operating mode 500 µs
0 mm ... 60 mm
Operating mode 1 ms
0 mm ... 66 mm
Operating mode 16 µs
3 mm ... 5 mm
Operating mode 70 µs
0 mm ... 10 mm
Operating mode 2 ms
0 mm ... 37 mm
Operating mode 8 ms
0 mm ... 43 mm
Note
Sensing ranges related to fiber-optic sensors with type of light: visible red light
Operating mode 50 µs
0 mm ... 19.5 mm
Operating mode 250 µs
0 mm ... 30 mm
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
