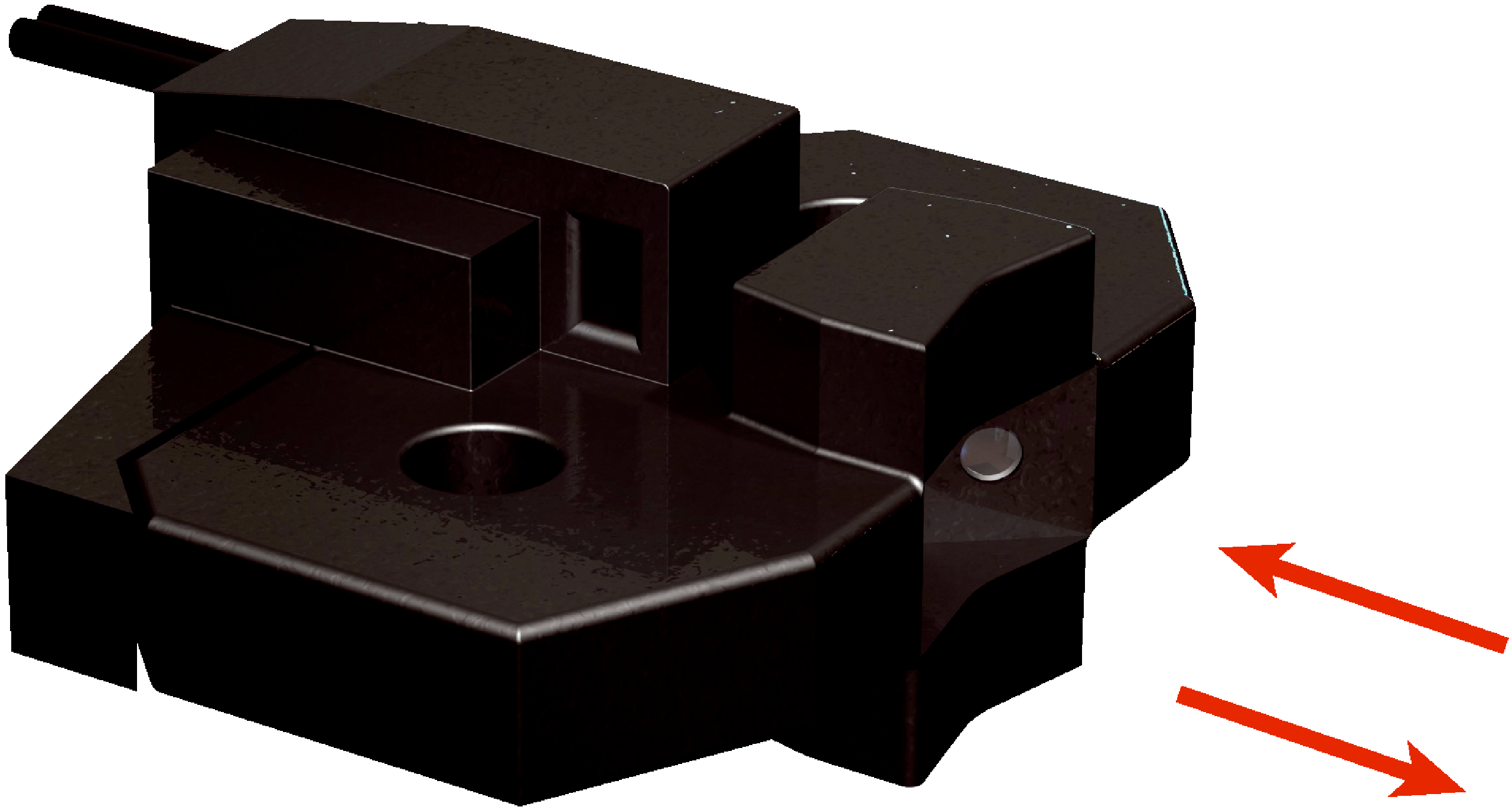

Fiber-optic sensors | Fiber-optic cables | LL3-DF04 | Functional principle: Proximity system | Fiber-optic head design: Special design | Fiber length: 2,000 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Plastic | Included with delivery: Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141), protective cladding for fiber head
Device type
Fiber-optic cables
Functional principle
Proximity system
Fiber-optic head design
Special design
Application
Liquid Level (Pipe-mounting)
Special features
Suitable for applications with transparent hoses/pipes (PFA) with an outside diameter of 6-26 mm and a wall thickness of 1-3 mm
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T)
Sensing range max.
Depending on the fiber optic amplifier used
Angle of dispersion
60°
Integrated lens
No
Compatibility tip adapters
No
Compatibility with infrared light
No
Optical fiber cable can be shortened
✔
Adapter end sleeves required
Yes
Included with delivery
Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141), protective cladding for fiber head
Light emission
Axial
Fiber length
2,000 mm
Bending radius
10 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
1 mm
Fiber arrangement
Singlefiber
Core structure
2 x Ø 0,5 mm Singlefiber
Optical fiber head
Polyetherimid (PEI)
Sheath
Polyethylen (PE)
Fibers
Polymethylmethacrylat (PMMA)
Вес
41 g
Ambient operating temperature
–40 °C ... +100 °C
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
