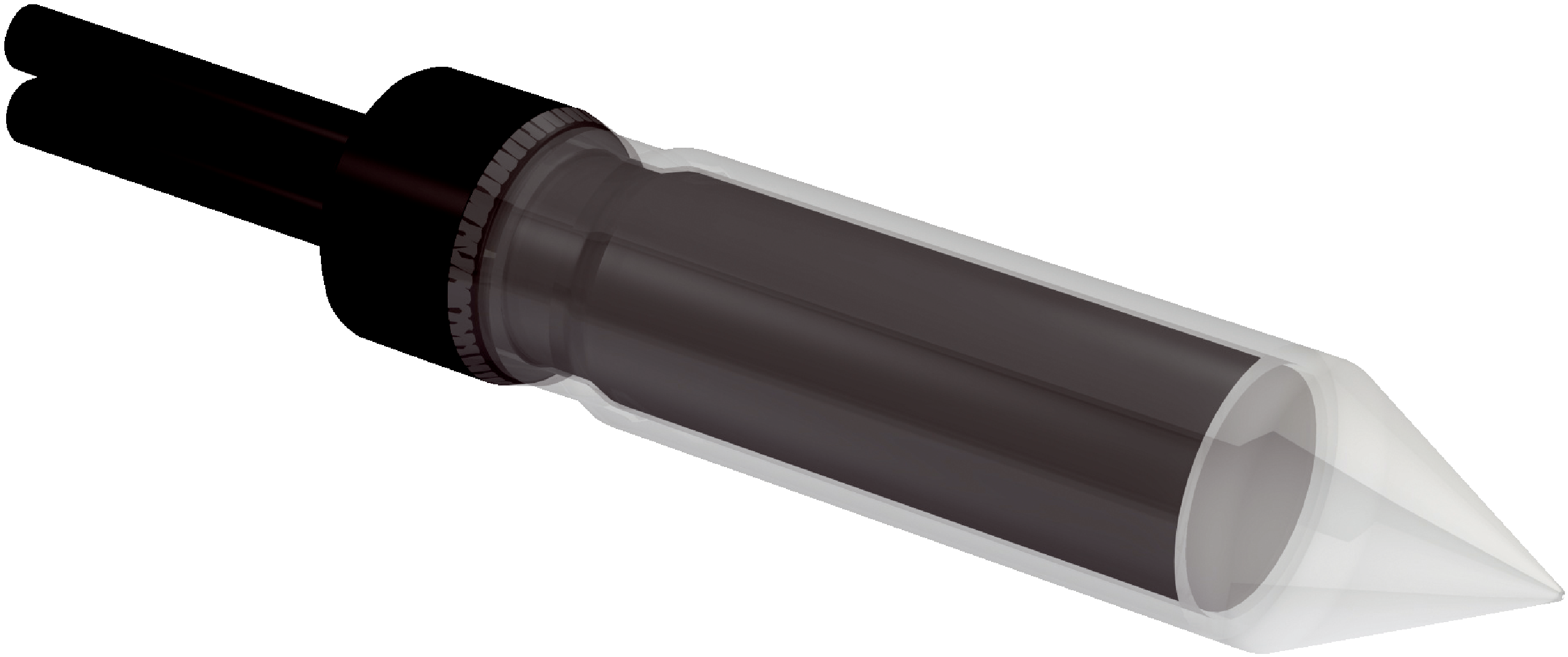

Fiber-optic sensors | Fiber-optic cables | LL3-DF02 | Functional principle: Proximity system | Fiber length: 2,000 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Plastic
Device type
Fiber-optic cables
Functional principle
Proximity system
Application
Liquid Level (Pipe-mounting)
Special features
Special applications: level switch for liquids, chemically resistant
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T)
Sensing range max.
Depending on the fiber optic amplifier used
Integrated lens
No
Compatibility tip adapters
No
Compatibility with infrared light
No
Adapter end sleeves required
Yes
Light emission
Axial
Fiber length
2,000 mm
Bending radius
60 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
2.2 mm
Fiber arrangement
Singlefiber
Core structure
2 x Ø 1,0 mm1)Singlefiber
Optical fiber head
Polytetrafluorethylen (PTFE)
Sheath
Polytetrafluorethylen (PTFE)
Fibers
Polymethylmethacrylat (PMMA)
Weight
79 g
Ambient operating temperature
–40 °C ... +70 °C
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
