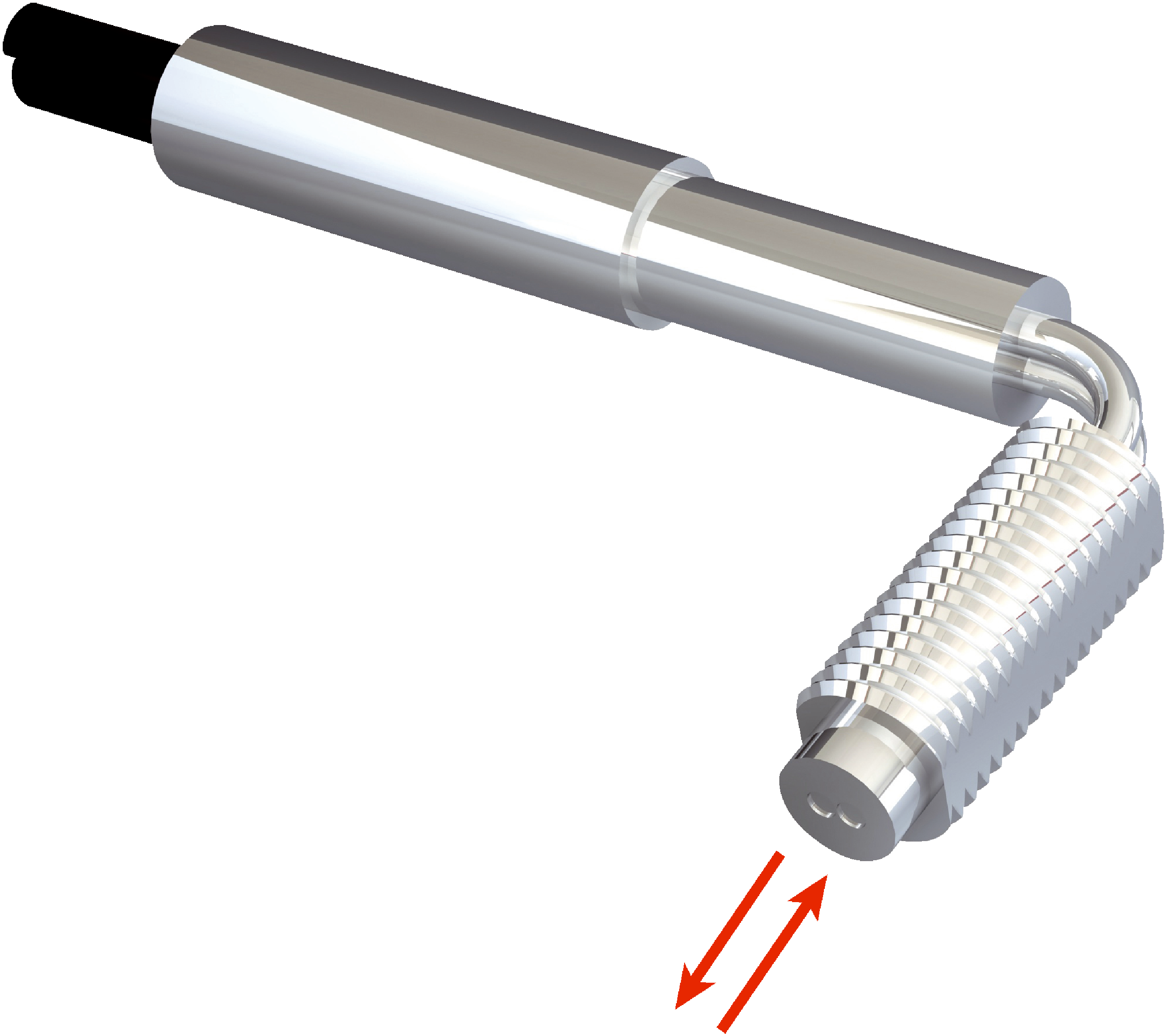

Fiber-optic sensors | Fiber-optic cables | LL3-DB09 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve, 90° deflection | Fiber length: 2,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 1 x washer, FC fiber cutter (5304141)
Device type
Fiber-optic cables
Functional principle
Proximity system
Fiber-optic head design
Threaded sleeve, 90° deflection
Application
Standard
Compatible fiber-optic amplifiers
GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
Sensing range max.
1,100 mm (Sensing range of WLL80 at 8 ms)
Minimal object diameter
0.02 mm1)
Angle of dispersion
60°
Integrated lens
No
Compatibility tip adapters
No
Compatibility with infrared light
No
Optical fiber cable can be shortened
✔
Adapter end sleeves required
No
Included with delivery
Mounting, 2 x M6 hexagon nut, 1 x washer, FC fiber cutter (5304141)
Light emission
Radial
Thread diameter (housing)
M6
Optical fiber taper diameter
≥ 4 mm
Optical fiber taper length after 2 mm
≥ 2 mm
Fiber length
2,000 mm
Bending radius
25 mm
Dynamic flexibility (robotics)
No
Outside diameter, optical fiber cable connection
2.2 mm
Fiber arrangement
Singlefiber
Core structure
2 x Ø 1,0 mm Singlefiber
Optical fiber head
Copper-zinc alloy (CuZn)
Sheath
Polyethylen (PE)
Fibers
Polymethylmethacrylat (PMMA)
Weight
52 g
Ambient operating temperature
–40 °C ... +70 °C
Operating mode 4 ms
980 mm
Operating mode 500 µs
545 mm
Operating mode 1 ms
595 mm
Operating mode 70 µs
165 mm
Operating mode 2 ms
575 mm
Operating mode 8 ms
610 mm
Note
Sensing ranges related to fiber-optic sensors with type of light: visible red light
Operating mode 50 µs
110 mm
Operating mode 250 µs
200 mm
Operating mode 16 µs
2 mm
Operating mode 200 µs
2 mm
ECLASS 5.0
27270905
ECLASS 5.1.4
27270905
ECLASS 6.0
27270905
ECLASS 6.2
27270905
ECLASS 7.0
27270905
ECLASS 8.0
27270905
ECLASS 8.1
27270905
ECLASS 9.0
27270905
ECLASS 10.0
27270905
ECLASS 11.0
27270905
ECLASS 12.0
27270905
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 16.0901
39121528
