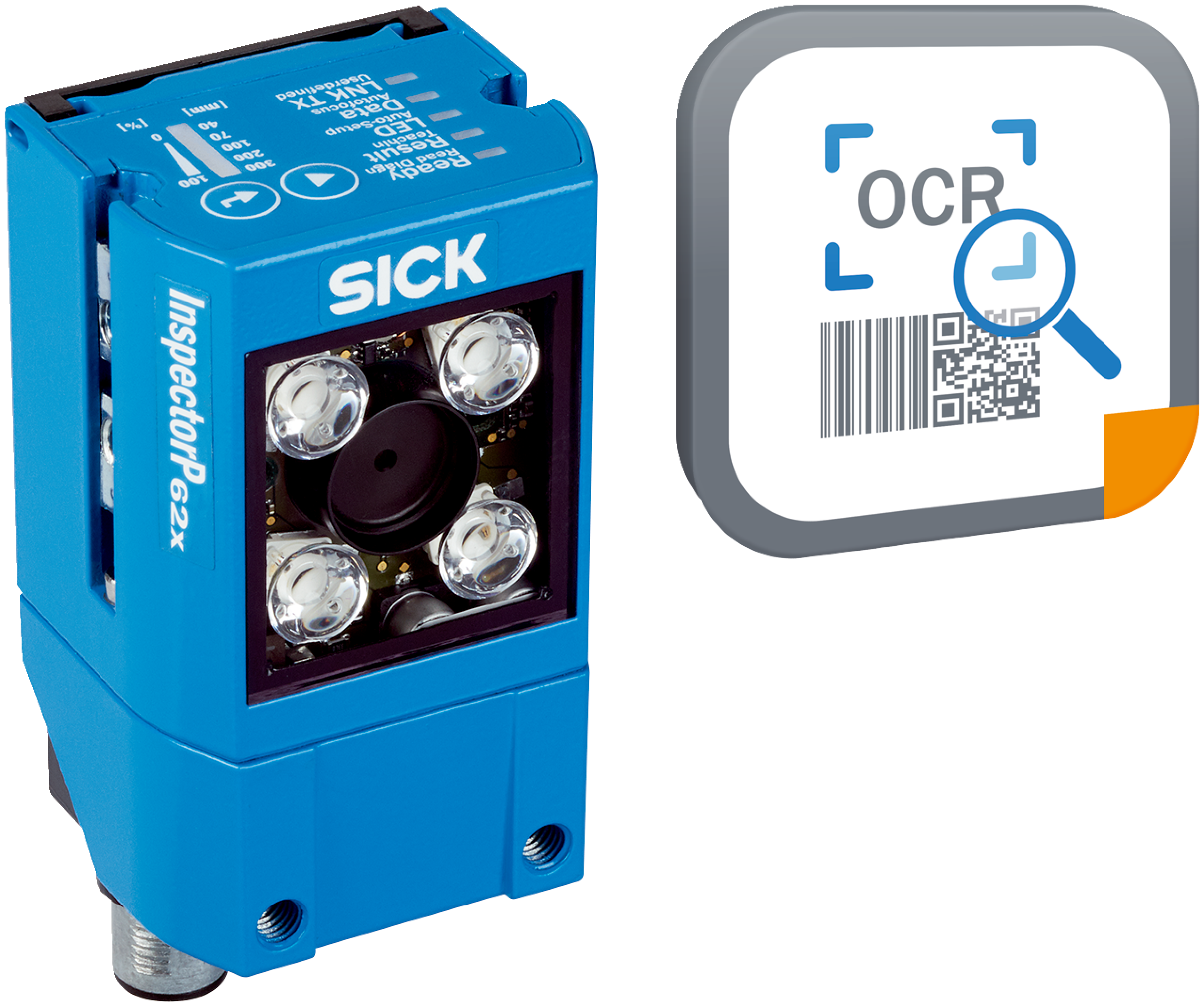

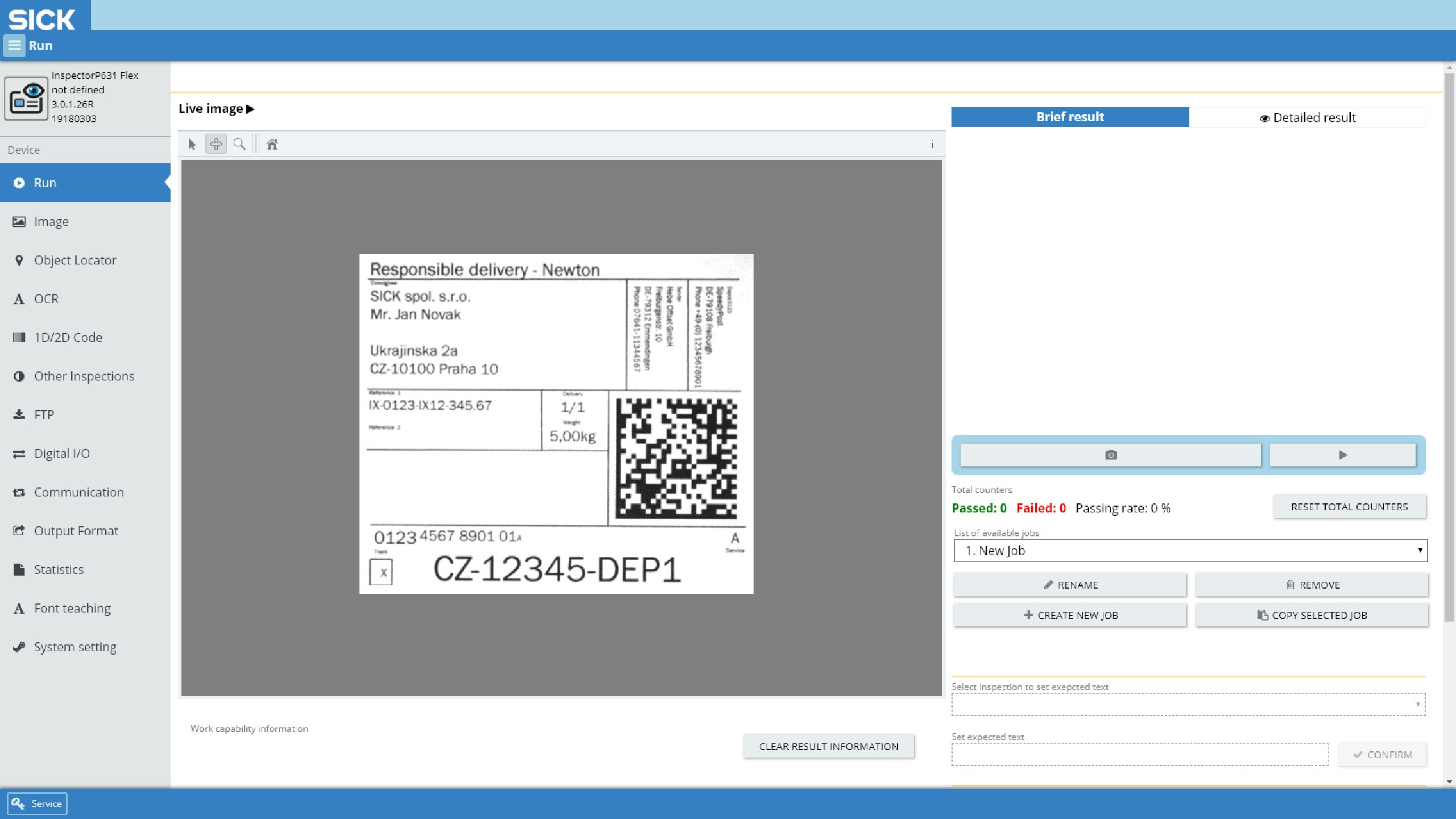

Quality control systems | Label Checker | LBC621-10RB | Items supplied: InspectorP V2D621P-2MSFBB5, LabelChecker software | Sensor: CMOS matrix sensor, grayscale values, 1.3 Mpixel, 1,280 px, 1,024 px | Focal length: 9.6 mm | Technology: 2D snapshot, image analysis | Internal lighting: Red, blue
Technology
2D snapshot
Internal lighting
LED, visible blue light, 470 nm, ± 15 nm
Feedback spot
LED, visible green light, 525 nm, ± 15 nm
Adjustment aid
Laser, visible red light, 630 nm ... 680 nm
Laser class
1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
Focus
Adjustable focus (electric)
Sensor
CMOS matrix sensor, grayscale values, 1.3 Mpixel, 1,280 px, 1,024 px
Spectral range
Approx. 400 nm ... 900 nm
Focal length
9.6 mm
Dimensions, system (L x W x H)
71 mm x 43 mm x 35.6 mm
Enclosure rating
IP65
Protection class
III
Power consumption
Typ. 4 W
Housing material
Aluminum die cast
Output current
≤ 100 mA
Connections
1 x M12, 17-pin male connector (serial, I/Os, voltage supply)1 x M12, 4-pin female connector (Ethernet)
Supply voltage
12 V DC ... 24 V DC, ± 20 %
Window material
PMMA
Weight
170 g
Bar code types
2/5 IndustrialInterleaved 2 of 5CodabarCode 39Code 93Code 128EAN-8EAN13PharmacodeGS1-128 / EAN 128Code 32UPC-AUPC-EGS1, various typesMSI
2D code types
Data Matrix ECC200QR codeMicro QR codePDF417Aztec
OCR/OCV fonts
Universal, industrial, document, DotPrint, pharma, OCR-A, OCR-B, Arabic numbers
Optical format
1/1.8"
Maximum encoder frequency
300 Hz
Ethernet
✔ , TCP/IP
Function
EtherNet/IPUDPPROFINET
Data transmission rate
10/100 MBit/s
Protocol
FTPHTTP
Operator interface
Web server
Optical indicators
5 x status display, 5 x LED bar graph, 1 green/red feedback spot
Acoustic indicators
Beeper
Ambient temperature, operation
–20 °C ... +70 °C, permissible relative humidity: 0% ... 90% (non-condensing)
Ambient temperature, storage
–20 °C ... +70 °C1)
Shock load
EN 60068-2-27:2009-05
Vibration load
EN 60068-2-6:2008-02
Items supplied
InspectorP V2D621P-2MSFBB5LabelChecker software
EU declaration of conformity
✔
UK declaration of conformity
✔
ECLASS 5.1.4
27289090
ECLASS 6.0
27289090
ECLASS 7.0
27289090
ECLASS 8.0
27289090
ECLASS 9.0
27289090
ECLASS 10.0
27289090
ECLASS 11.0
27289090
ECLASS 12.0
27289090
ECLASS 13.0
27289090
ECLASS 14.0
27289090
ECLASS 15.0
27289090
ETIM 6.0
EC001820
ETIM 7.0
EC001820
ETIM 8.0
EC001820
ETIM 9.0
EC001820
ETIM 10.0
EC001820
UNSPSC 091201.0
81141500
UNSPSC 100501.0
81141500
UNSPSC 111201.0
81141500
UNSPSC 120901.0
81141500
UNSPSC 131201.0
81141500
UNSPSC 140801.0
81141500
UNSPSC 151101.0
81141500
UNSPSC 160901.0
81141500
UNSPSC 171001.0
81141500
UNSPSC 180801.0
81141500
UNSPSC 190501.0
81141500
UNSPSC 200601.0
81141500
UNSPSC 210901.0
81141500
UNSPSC 220601.0
81141500
UNSPSC 230701.0
81141500
UNSPSC 240301.0
81141500
UNSPSC 250901.0
81141500
UNSPSC 260801.0
81141500
