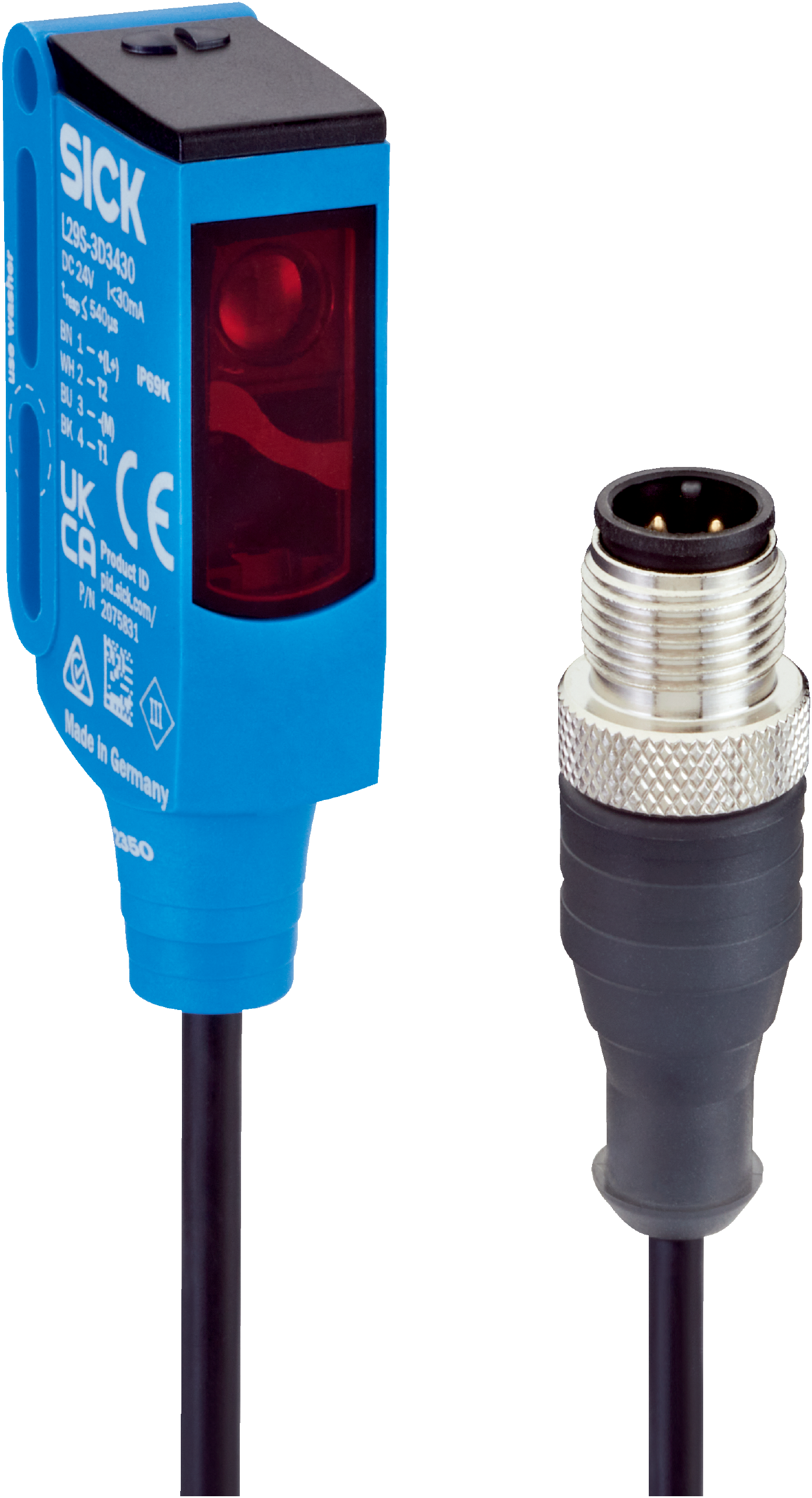

Safety light-beam sensors | L29 | L29E-3P3430 | System part: Receiver | Safety level: PL c, SIL 1, Type 2 | Scanning range: 6 m | Housing material: VISTAL® | Connection type: Male connector M12, 4-pin
Scanning range
6 m
Number of beams
1
Response time
0.54 ms + Test device response time (Flexi Classic)
Type
Type 2 (IEC 61496-1)1)
Safety integrity level
SIL 1 (IEC 61508)1)
Category
Category 2 (EN ISO 13849)1)
Test rate (external test)
100 /s (EN ISO 13849)2)
Maximum demand rate
60 min⁻¹ (EN ISO 13849)3)
Performance level
PL c (EN ISO 13849)1)
PFHD(mean probability of a dangerous failure per hour)
1.0 x 10-6(EN ISO 13849)1)
TM(mission time)
20 years (EN ISO 13849)
Connection type
Male connector M12, 4-pin
Length of cable
120 mm
Permitted cable length
≤ 30 m
Display elements
LED
Protection class
III (IEC 61140)
Supply voltage VS
24 V DC (19.2 V DC ... 30 V DC)
Power consumption
≤ 30 mA
Switching outputs
PNP, Q1)
Current loading
≤ 100 mA
Design
Rectangular
Dimensions (W x H x D)
12.2 mm x 50 mm x 23.6 mm
Housing material
VISTAL®
Weight
+ 80 g
Enclosure rating
IP65 (IEC 60529)IP66 (IEC 60529)IP67 (IEC 60529)IP69K (ISO 20653)
Ambient operating temperature
–40 °C ... +60 °C
Storage temperature
–40 °C ... +75 °C
Air humidity
15 % ... 95 %, Non-condensing
Vibration resistance
5 … 150 Hz, 3,5 mm / 1 g (EN 60068-2-6)
Shock resistance
15 g / 6 ms (EN 60068-2-27)
Class
3M4 (IEC TR 60721-4-3)
Aperture angle/receiving angle
± 5° / ± 5°
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
EC-Type-Examination approval
✔
ECLASS 5.1.4
27272701
ECLASS 6.0
27272701
ECLASS 7.0
27272701
ECLASS 8.0
27272701
ECLASS 9.0
27272701
ECLASS 10.0
27272701
ECLASS 11.0
27272701
ECLASS 12.0
27272701
ECLASS 13.0
27272701
ECLASS 14.0
27272701
ECLASS 15.0
27272701
ETIM 6.0
EC001831
ETIM 7.0
EC001831
ETIM 8.0
EC001831
ETIM 9.0
EC001831
ETIM 10.0
EC001831
UNSPSC 091201.0
46171620
UNSPSC 100501.0
46171620
UNSPSC 111201.0
46171620
UNSPSC 120901.0
46171620
UNSPSC 131201.0
46171620
UNSPSC 140801.0
46171620
UNSPSC 151101.0
46171620
UNSPSC 160901.0
46171620
UNSPSC 171001.0
46171620
UNSPSC 180801.0
46171620
UNSPSC 190501.0
46171620
UNSPSC 200601.0
46171620
UNSPSC 210901.0
46171620
UNSPSC 220601.0
46171620
UNSPSC 230701.0
46171620
UNSPSC 240301.0
46171620
UNSPSC 250901.0
46171620
UNSPSC 260801.0
46171620
