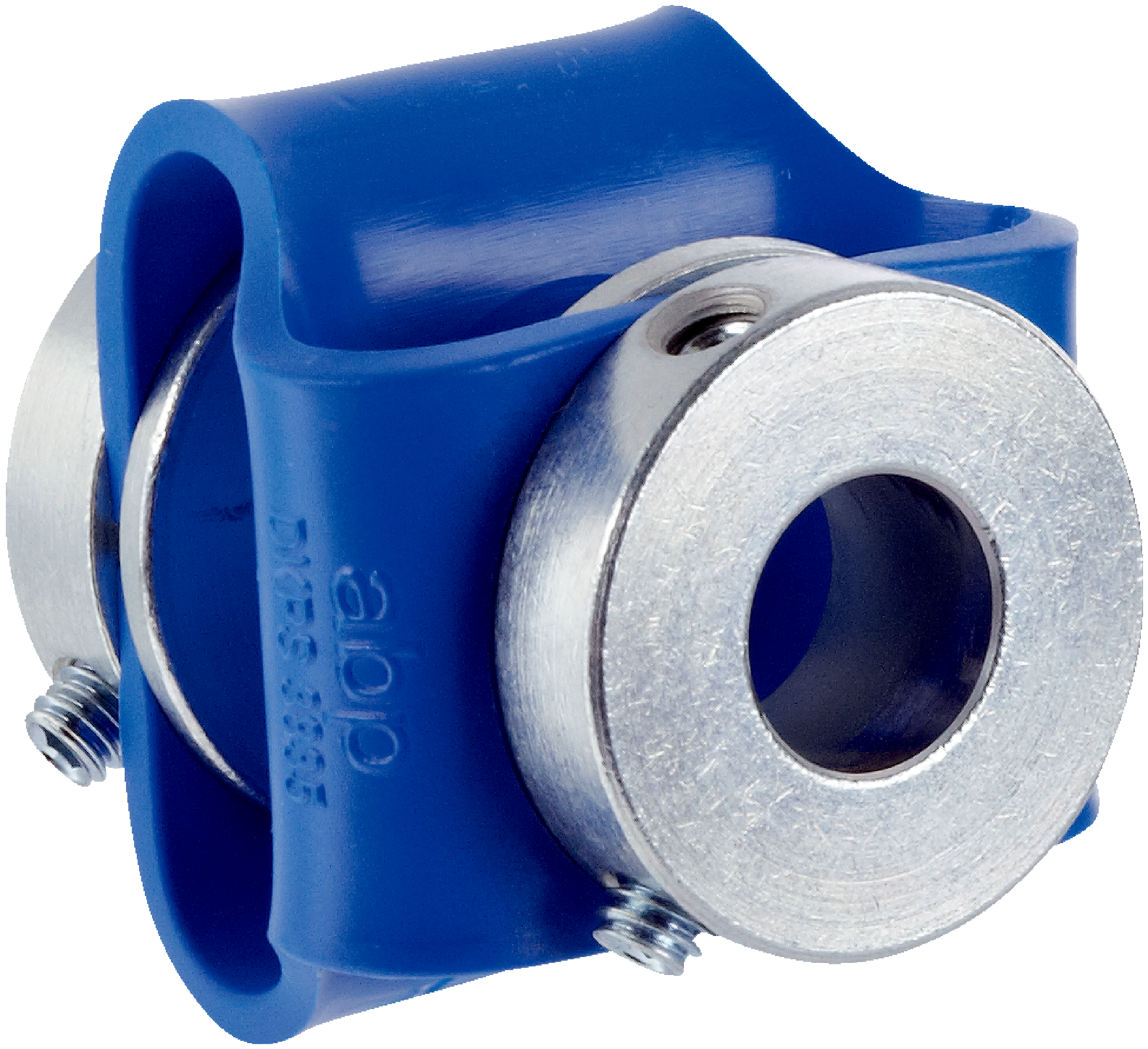

Shaft adaptation | Shaft couplings | KUP-0610-F | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Spring washer coupling, shaft diameter 6 mm / 10 mm, Maximum shaft offset: radial +/- 0.3 mm, axial +/- 0.4 mm, angular +/- 2.5°; max. speed 12,000 rpm, –10° to +80 °C, max. torque 60 Ncm; material: aluminum flange, glass fiber-reinforced polyamide membrane and hardened steel coupling pin
Product segment
Shaft adaptation
Product
Shaft couplings
Shaft diameter D1
6 mm
Shaft diameter D2
10 mm
Length
22 mm
Maximumspeed
12,000 min⁻¹
Maximum shaft offset - radial
± 0.3 mm
Maximum shaft offset -axial
± 0.4 mm
Maximum shaft offset - agular
± 2.5°
Max. torque
60 Ncm
Description
Spring washer coupling, shaft diameter 6 mm / 10 mm, Maximum shaft offset: radial +/- 0.3 mm, axial +/- 0.4 mm, angular +/- 2.5°; max. speed 12,000 rpm, –10° to +80 °C, max. torque 60 Ncm; material: aluminum flange, glass fiber-reinforced polyamide membrane and hardened steel coupling pin
ECLASS 5.1.4
23031090
ECLASS 6.0
23031090
ECLASS 7.0
23031090
ECLASS 8.0
23031090
ECLASS 9.0
23031090
ECLASS 10.0
23031090
ECLASS 11.0
23031090
ECLASS 12.0
23031090
ECLASS 13.0
23031090
ECLASS 14.0
23031090
ECLASS 15.0
23031090
ETIM 6.0
EC002556
ETIM 7.0
EC002556
ETIM 8.0
EC002556
ETIM 9.0
EC002556
ETIM 10.0
EC002556
UNSPSC 091201.0
31163000
UNSPSC 100501.0
31163000
UNSPSC 111201.0
31163014
UNSPSC 120901.0
31163014
UNSPSC 131201.0
31163014
UNSPSC 140801.0
31163014
UNSPSC 151101.0
31163014
UNSPSC 160901.0
31163014
UNSPSC 171001.0
31163014
UNSPSC 180801.0
31163014
UNSPSC 190501.0
31163014
UNSPSC 200601.0
31163014
UNSPSC 210901.0
31163014
UNSPSC 220601.0
31163014
UNSPSC 230701.0
31163014
UNSPSC 240301.0
31163014
UNSPSC 250901.0
31163014
UNSPSC 260801.0
31163014
