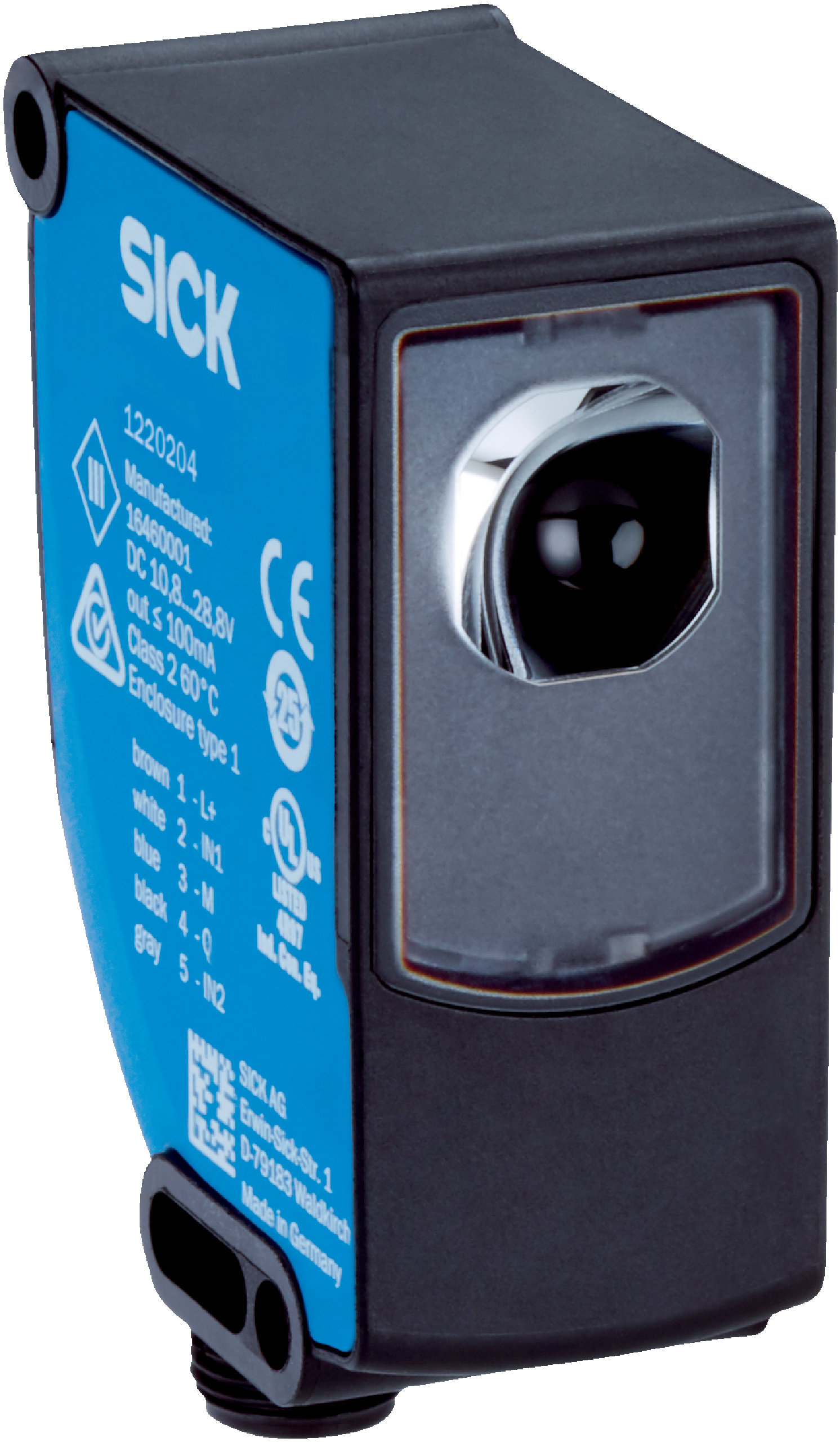

Contrast sensors | KTS | KTS-MBAC241152ZZZZ | Light source: LED | Communication interface: - | Device type: Standard | Sensing distance: 25 mm | Switching output: Push-pull: PNP/NPN | Light emission: Long side of housing | Connection type Detail: Plug, M12, 5-pin | Teach-in mode: Active light detection | Delivery status: 2-point teach-in, active light detection | Housing material: Plastic
Parameter presettings
None
Special applications
Active Light Detection
Device type
Standard
Housing design
Middle
Dimensions (W x H x D)
26 mm x 62 mm x 47.5 mm
Light source
LED, White1)
Light emission
Long side of housing
Receiving filters
None
Wave length
400 nm ... 750 nm
Working range
10 mm ... 80 mm
Sensing distance
≤ 25 mm
Sensing distance tolerance
± 6 mm
Field of view
6 mm x 9 mm (at sensing distance 25 mm)34 mm x 32 mm (at sensing distance 80 mm)
Teach-in mode
Active light detection
Output function
Light/dark switching
Delay time
Adjustable
Setting the key lock
Standard
Delivery status
2-point teach-in, active light detection
MTTFD
291 years
Supply voltage
10.8 V DC ... 28.8 V DC1)
Ripple
≤ 5 Vpp2)
Current consumption
< 100 mA3)
Switching frequency
1.5 kHz4)
Response time
320 µs
Jitter
160 µs
Switching output
Push-pull: PNP/NPN
Switching output (voltage)
Push-pull: PNP/NPN HIGH = UV- 3 V/LOW ≤ 3 V
Output current Imax.
100 mA5)
Input, teach-in (ET)
Teach: U = 10 V ... < VS
Input, blanking input (AT)
Blanked: U = 10 V ... < Uv
Input, fine/coarse (F/C)
Coarse: U = 10 V ... < Uv
Input, light/dark (L/D)
Light: U = 10 V ... < Uv
Retention time (ET)
25 ms, non-volatile memory
Time delay
None
Protection class
III
Circuit protection
UVconnections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression
Housing material
VISTAL®
Optics material
COP
Weight
68 g
Ambient operating temperature
–20 °C ... +60 °C
Ambient temperature, storage
–25 °C ... +75 °C
Shock load
According to IEC 60068-2-27 (30 g/11 ms)
Enclosure rating
IP67
UL File No.
E181493
