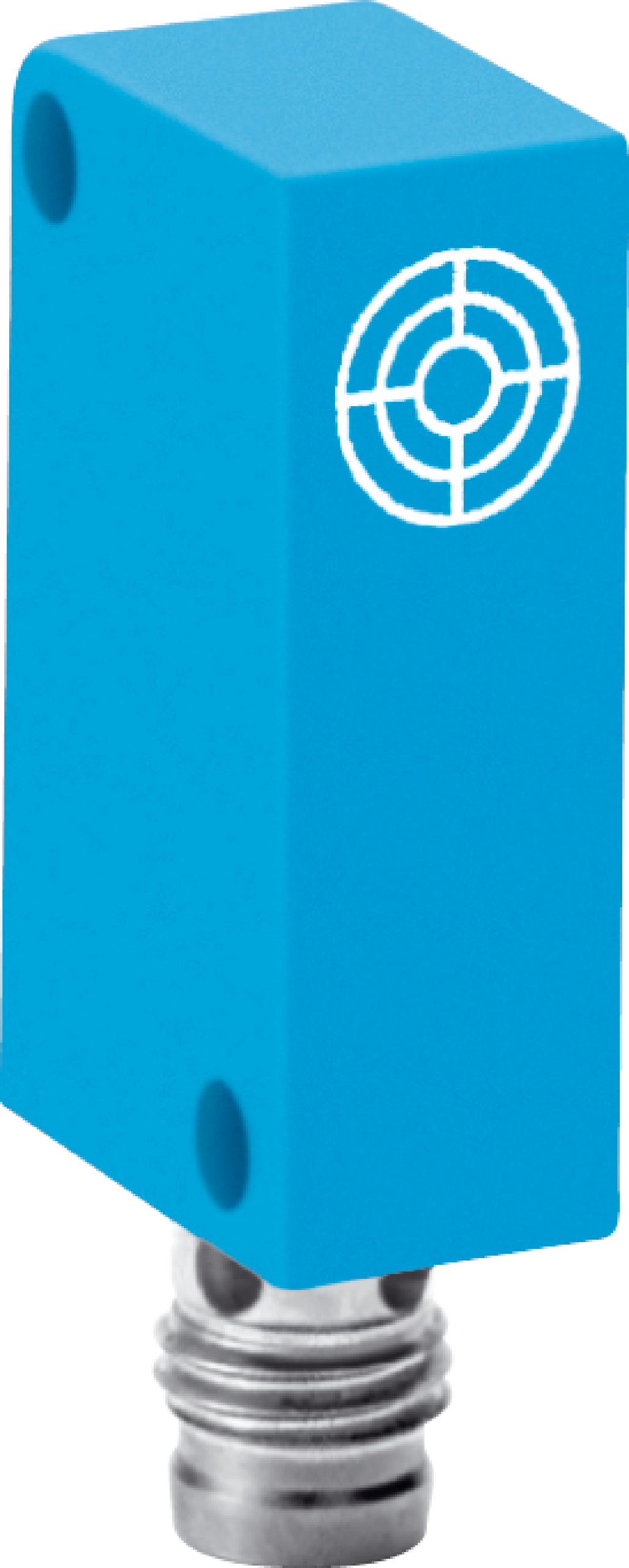

Inductive proximity sensors | IQ Standard | IQ10-03BPO-KTX | Sensing range Sn: 3 mm | Installation type: Flush | Cuboid shape (W x H x D): 10 mm x 16 mm x 28 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Connector M8, 3-pin
Housing
Rectangular
Dimensions (W x H x D)
10 mm x 16 mm x 28 mm
Sensing range Sn
3 mm
Installation type
Flush
Switching frequency
3,000 Hz
Connection type
Connector M8, 3-pin
Switching output
PNP
Output function
NC
Electrical wiring
DC 3-wire
Enclosure rating
IP671)
Special characteristic
Different oscillator frequency
Supply voltage
10 V DC ... 30 V DC
Ripple
≤ 10 %1)
Voltage drop
≤ 1.5 V2)
Current consumption
10 mA3)
Time delay before availability
≤ 100 ms
Hysteresis
1 % ... 20 %
Reproducibility
≤ 5 %4)5)
Temperature drift (of Sr)
± 10 %
EMC
According to EN 60947-5-2
Continuous current Ia
≤ 300 mA
Short-circuit protection
✔
Reverse polarity protection
✔
Power-up pulse protection
✔
Shock and vibration resistance
30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature
–25 °C ... +70 °C
Housing material
Plastic
Sensing face material
Plastic, PA
MTTFD
2,010 years
DCavg
0%
Remark
Associated graphic see "Installation"
A
7 mm
B
10 mm
C
10 mm
D
9 mm
E
8 mm
F
48 mm
G
12 mm
ECLASS 5.0
27270101
ECLASS 5.1.4
27270101
ECLASS 6.0
27270101
ECLASS 6.2
27270101
ECLASS 7.0
27270101
ECLASS 8.0
27270101
ECLASS 8.1
27270101
ECLASS 9.0
27270101
ECLASS 10.0
27270101
ECLASS 11.0
27270101
ECLASS 12.0
27274001
ETIM 5.0
EC002714
ETIM 6.0
EC002714
ETIM 7.0
EC002714
ETIM 8.0
EC002714
UNSPSC 16.0901
39122230
