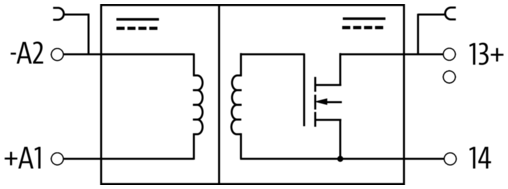

Inductive switching signal transmission Wear-free switching No operating voltage at output Switching frequency: max. 30 kHz Switching current up to 5 A Screw...
Weight
0,026 kg
Country of origin
CZ
Model designation
Induktivkoppler 24V 5A 30kHz
Input voltage DC
24 V
Input voltage DC min.
15 V
Input voltage DC max.
30 V
Input voltage OFF DC min.
0 V
Input voltage OFF DC max.
5 V
Input current DC max.
32 mA
Quiescent current OFF max.
0,025 mA
Switching current min.
1 mA
Switching current max.
5 A
Switching frequency ohmic max.
18,2 Hz
Switching frequency inductive max.
3.000 Hz
Status indication LED
yellow
