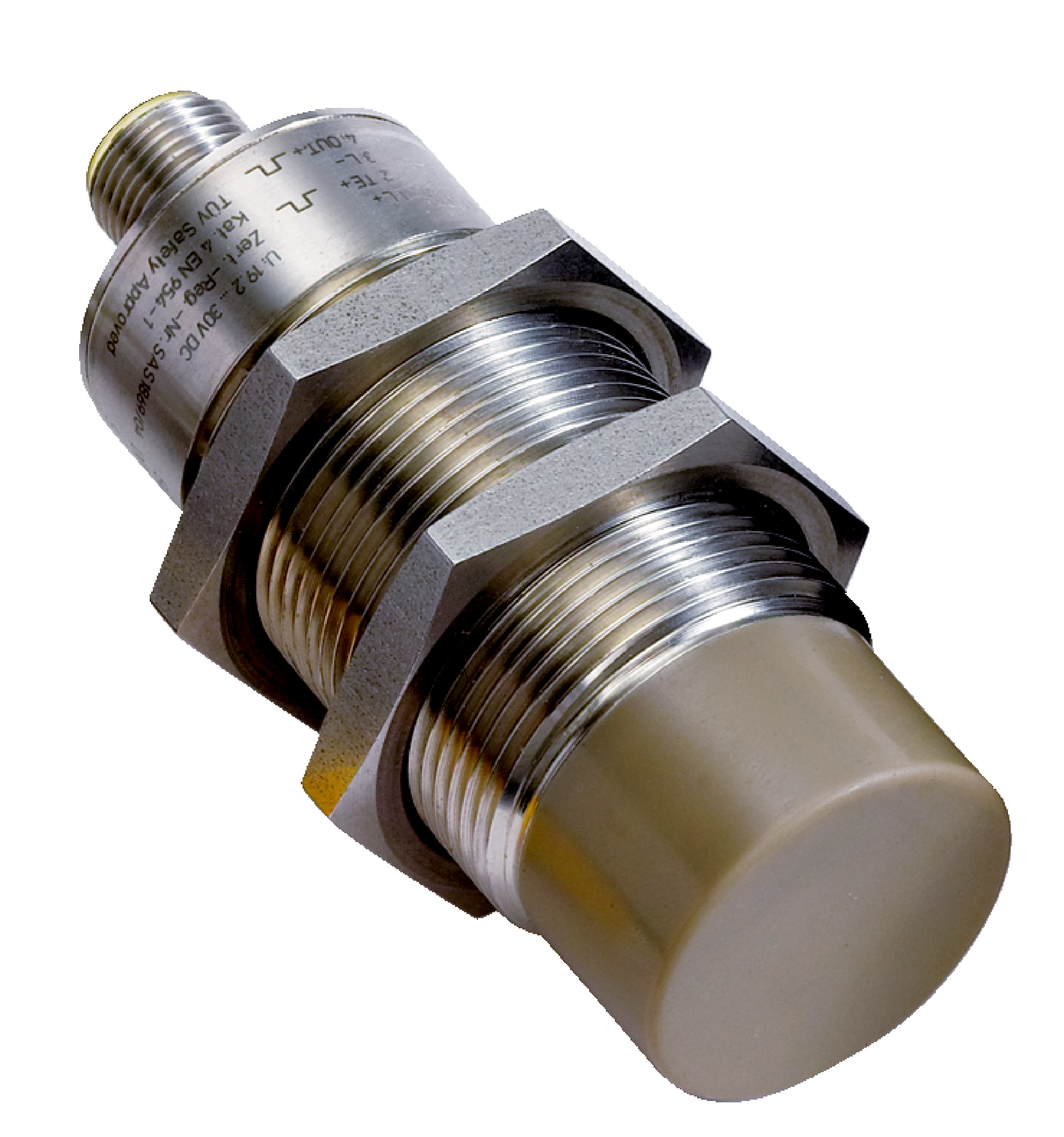

Safety switches | IN4000 Standard | IN40-D0202K | Design: Cylindrical | Enable zone: 12 mm | Dimensions: M30 x 80 mm | Thread length: 39 mm | Installation type: Non-flush | Connection type Detail: Plug connector, M12, 4-pin | Type of output: Semiconductor, pulsed | Performance level: PL e | Change information: The devices conform to Category 3 as well as PFHD 1.0 × 10–8. Please check whether the device meets the safety requirements of your application as a result. If you have any questions, please consult your sales organization.
Sensor principle
Inductive
Number of safe outputs
1
Switching delay from state change
T2 + 20 ms1)
Enable zone
6 mm ... 12 mm2)
Assured switch off distance Sar
30 mm2)
Actuation directions
5
Active sensor surfaces
1
Monitoring time minimum dwell time
≥ 0.2 s
Safety integrity level
SIL 3 (IEC 61508)
Category
Category 3 (EN ISO 13849)
Performance level
PL e (EN ISO 13849)
PFHD(mean probability of a dangerous failure per hour)
1.0 x 10-8
TM(mission time)
10 years (EN ISO 13849)1)20 years (EN ISO 13849)2)
Type
Type 3 (EN ISO 14119)
Actuator coding level
Uncoded (EN ISO 14119)
Classification in compliance with IEC/EN 60947-5-3
PDF-M
Safe series connection
With T-connector (without diagnostics)
Connection type
Plug connector, M12, 4-pin
Coupling nut material
Stainless steel
Display elements
LEDs
Power indication
✔
Status display
✔
Protection class
III (EN 50178)
Supply voltage Vs
24 V DC (19.2 V DC ... 30 V DC)
Power consumption
15 mA
Type of output
Semiconductor, pulsed
Design
Cylindrical
Housing diameter
M30
Housing length
80 mm
Thread length
39 mm
Weight
0.13 kg
Housing
V4A (housing), PEEK (Cover)
Installation type
Non-flush
Enclosure rating
IP69K (IEC 60529)
Ambient operating temperature
0 °C ... +70 °C
Storage temperature
–25 °C ... +70 °C
Vibration resistance
10 Hz ... 55 Hz, 1 mm (EN 60947-5-3)
Shock resistance
30 g, 11 ms (EN 60947-5-3)
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
TÜV approval
✔
TÜV approval annex
✔
ECLASS 5.1.4
27272401
ECLASS 6.0
27272401
ECLASS 7.0
27272401
ECLASS 8.0
27272401
ECLASS 9.0
27272401
ECLASS 10.0
27272401
ECLASS 11.0
27272401
ECLASS 12.0
27274101
ECLASS 13.0
27274101
ECLASS 14.0
27274101
ECLASS 15.0
27274101
ETIM 6.0
EC002544
ETIM 7.0
EC002544
ETIM 8.0
EC002544
ETIM 9.0
EC002544
ETIM 10.0
EC002544
UNSPSC 091201.0
39121500
UNSPSC 100501.0
39121500
UNSPSC 111201.0
39121500
UNSPSC 120901.0
39121500
UNSPSC 131201.0
39122205
UNSPSC 140801.0
39122205
UNSPSC 151101.0
39122205
UNSPSC 160901.0
39122205
UNSPSC 171001.0
39122205
UNSPSC 180801.0
39122205
UNSPSC 190501.0
39122205
UNSPSC 200601.0
39122205
UNSPSC 210901.0
39122205
UNSPSC 220601.0
39122205
UNSPSC 230701.0
39122205
UNSPSC 240301.0
39122205
UNSPSC 250901.0
39122205
UNSPSC 260801.0
39122205
