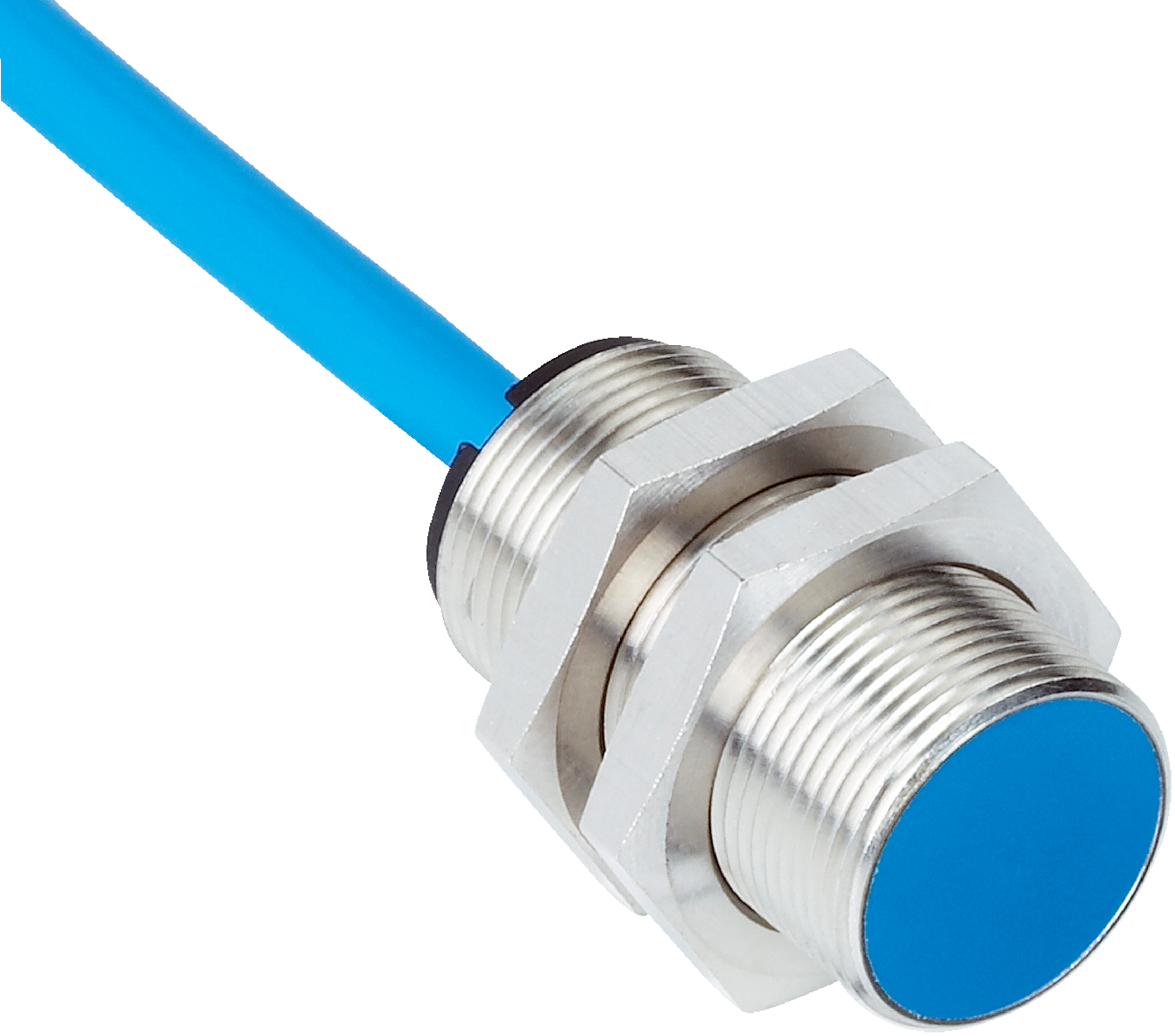

Inductive proximity sensors | IMN | IM18-05B-N-ZW0 | Special applications: Explosive areas | Sensing range Sn: 5 mm | Installation type: Flush | Switching output: NAMUR | Output function: NC | Connection type: Cable, 2-wire, 2 m | Info: II 1G Ex ia IIC T6 Ga Ta –20 °C ... +70 °C, II 2 G Ex ia IIC T6 Gb Ta: –20 °C ... +70 °C PTB 03 ATEX 2037 In the framework of directive 2014/34 / EU (ATEX) and DIN EN ISO/IEC 80079-34, we would like to point out that the traceability of the ordered device to your customer is your responsibility (documentation of your customer and associated product data, such as part number, datcode, serial number) | Special features: ATEX
Housing
Metric
Thread size
M18 x 1
Diameter
Ø 18 mm
Sensing range Sn
5 mm
Safe sensing range Sa
4.05 mm
Installation type
Flush
Switching frequency
720 Hz
Connection type
Cable, 2-wire, 2 m
Switching output
NAMUR
Switching output detail
NAMUR
Output function
NC
Enclosure rating
IP671)
Special features
ATEX
Special applications
Explosive areas
Items supplied
Mounting nut, brass, nickel-plated (2x)
Supply voltage
7.5 V DC ... 25 V DC1)
Hysteresis
1 % ... 15 %
Temperature drift (of Sr)
± 10 %
EMC
According to EN 60947-5-6
Current consumption, sensor is activated
≤ 1 mA
Current consumption, sensor is not activated
≥ 2.2 mA
Cable material
PVC
Conductor size
0.5 mm²
Cable diameter
Ø 5.4 mm
Cable resistance
50 Ω
Shock and vibration resistance
30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature
–20 °C ... +70 °C
Housing material
Brass, nickel-plated
Sensing face material
Plastic, PTB
Housing length
33 mm
Thread length
32 mm
Tightening torque, max.
35 Nm
Kaal
+ 171 g
Type approval certificate
PTB 03 ATEX 2037
Ex area category
1G, 2G
Input voltage Uimax.
15 V2)
Input power Pimax.
120 mW2)
Input current Iimax.
50 mA2)
Internal capacitance Cimax.
145 nF2)
Internal inductance Limax.
45 µH2)
Nominal voltage
8.2 V DC3)
Device labeling
II 1G Ex ia IIC T6 Ga Ta –20 °C ... +70 °C, II 2 G Ex ia IIC T6 Gb Ta: –20 °C ... +70 °C
MTTFD
7,515 years
DCavg
0%
TM(mission time)
20 years
Note
The values are reference values which may vary
Stainless steel (V2A, 304)
Approx. 0.7
Aluminum (Al)
Approx. 0.4
Copper (Cu)
Approx. 0.3
Brass (Br)
Approx. 0.5
Remark
Associated graphic see "Installation"
B
18 mm
C
18 mm
D
15 mm
F
40 mm
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
CCC certificate
✔
ATEX certificate
✔
ECLASS 5.1.4
27270101
ECLASS 6.0
27270101
ECLASS 7.0
27270101
ECLASS 8.0
27270101
ECLASS 9.0
27270101
ECLASS 10.0
27270101
ECLASS 11.0
27270101
ECLASS 12.0
27274001
ECLASS 13.0
27274001
ECLASS 14.0
27274001
ECLASS 15.0
27274001
ETIM 6.0
EC002714
ETIM 7.0
EC002714
ETIM 8.0
EC002714
ETIM 9.0
EC002714
ETIM 10.0
EC002714
UNSPSC 091201.0
39121500
UNSPSC 100501.0
39121500
UNSPSC 111201.0
39121500
UNSPSC 120901.0
39121500
UNSPSC 131201.0
39122230
UNSPSC 140801.0
39122230
UNSPSC 151101.0
39122230
UNSPSC 160901.0
39122230
UNSPSC 171001.0
39122230
UNSPSC 180801.0
39122230
UNSPSC 190501.0
39122230
UNSPSC 200601.0
39122230
UNSPSC 210901.0
39122230
UNSPSC 220601.0
39122230
UNSPSC 230701.0
39122230
UNSPSC 240301.0
39122230
UNSPSC 250901.0
39122230
UNSPSC 260801.0
39122230
