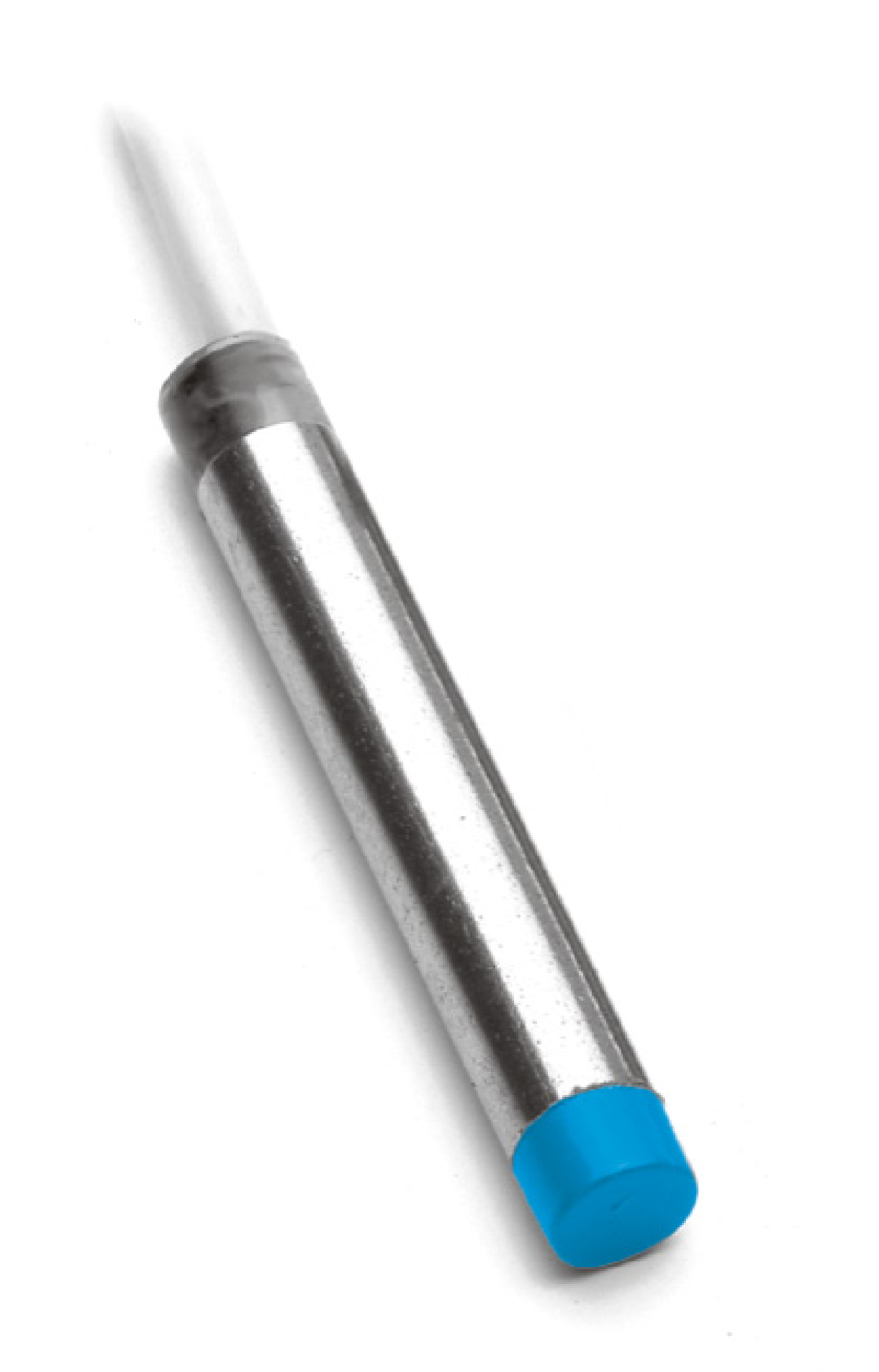

Inductive proximity sensors | IMM | IH06-04NPS-VWK | Housing: Short-body | Sensing range Sn: 4 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m
Housing
Short-body
Diameter
Ø 6.5 mm
Sensing range Sn
4 mm
Safe sensing range Sa
3.24 mm
Installation type
Non-flush
Switching frequency
2,500 Hz
Connection type
Cable, 3-wire, 2 m
Switching output
PNP
Switching output detail
PNP
Output function
NO
Electrical wiring
DC 3-wire
Enclosure rating
IP671)
Supply voltage
10 V DC ... 30 V DC
Ripple
≤ 10 %1)
Voltage drop
≤ 2 V2)
Time delay before availability
≤ 50 ms
Hysteresis
1 % ... 20 %
Reproducibility
≤ 5 %3)4)
Temperature drift (of Sr)
± 10 %
EMC
EN 60947-5-2IEC 61000-4-2: (Testlevel 2)IEC 61000-4-4: (Testlevel 3)
Continuous current Ia
≤ 200 mA
Cable material
PVC
Conductor size
0.14 mm²
Cable diameter
Ø 3.1 mm
Short-circuit protection
✔
Power-up pulse protection
✔
Shock and vibration resistance
30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature
–25 °C ... +70 °C
Housing material
Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material
Plastic, POM
Housing length
35.5 mm
UL File No.
NMFT2.E175606
Note
The values are reference values which may vary
Stainless steel (V2A, 304)
Approx. 0.77
Aluminum (Al)
Approx. 0.47
Copper (Cu)
Approx. 0.42
Brass (Br)
Approx. 0.52
Remark
Associated graphic see "Installation"
A
6.5 mm
B
13 mm
C
6.5 mm
D
12 mm
E
8 mm
F
32 mm
