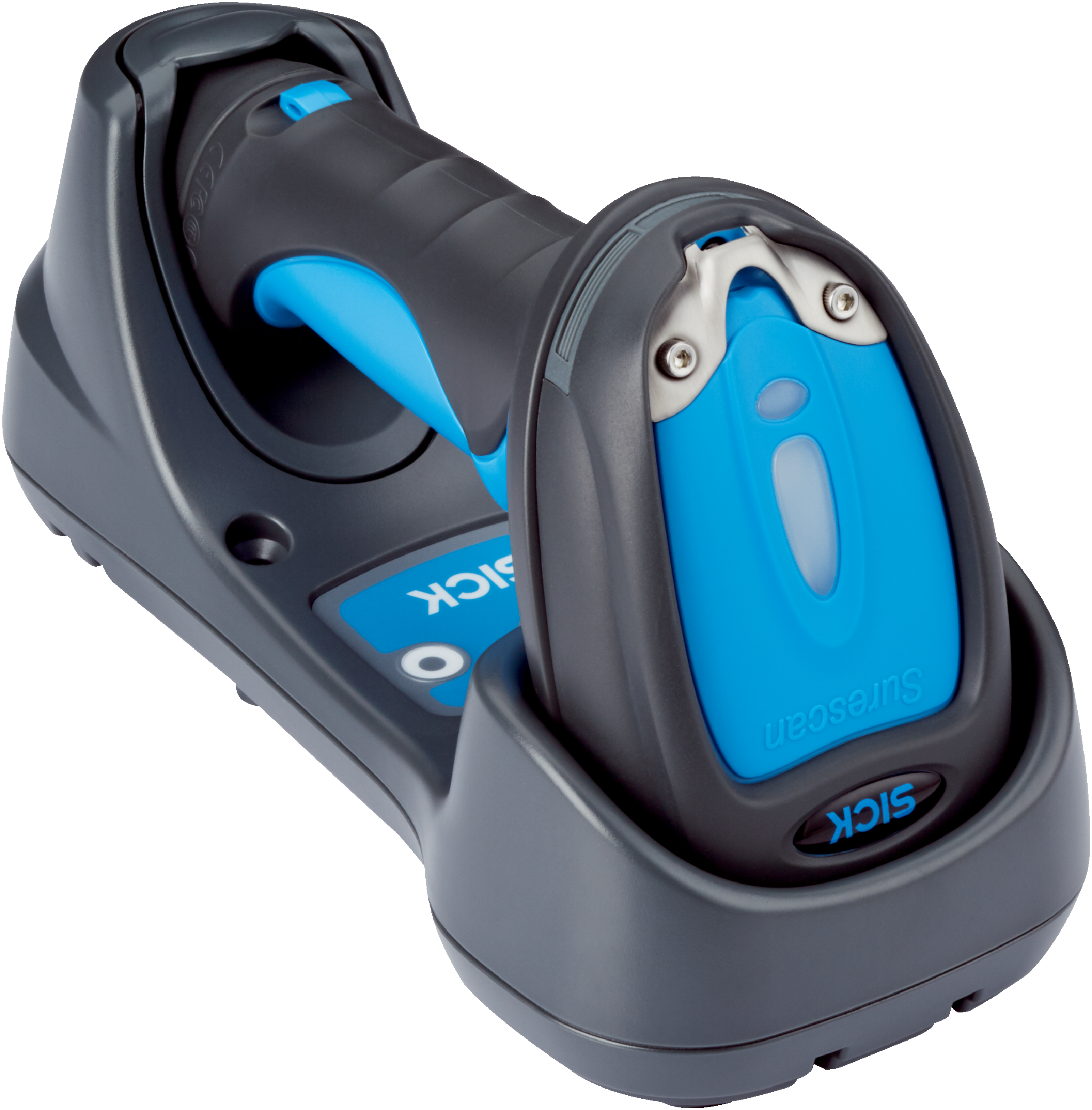

Mobile handheld scanners | IDM | IDM261-311S RS-232 Kit | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 30 mm ... 400 mm | Application: Industrial application | Scanner design: Wireless variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, Bluetooth | Ambient operating temperature: –20 °C ... +50 °C | Code resolution: ≥ 0.07 mm, ≥ 0.13 mm
Application
Industrial application
Scanner design
Wireless variant
Sensor resolution
1,280 px x 800 px
Light source
LED, Visible, Red, 660 nm
Alignment aid
Laser, Red, 630 nm
Laser class
1 (EN/IEC 60825-1:2014)
Reading distance
30 mm ... 400 mm
Code resolution
≥ 0.07 mm1)≥ 0.13 mm2)
Supply voltage
5 V DC, ± 5 %
Current consumption
Operation (charge status incl. base station): 750 mAStandby: 175 mA
Housing color
Blue, gray
Enclosure rating
IP65
Вес
228 g
Dimensions (L x W x H)
104 mm x 76.3 mm x 176 mm
MTBF
100,000 h
Readable code structures
1D codes, 2D codes, Stacked
Bar code types
Code 39, Code 39 Trioptic, Code 32, Code 93, Code 11, Codabar, Code 128, GS1-128 / EAN 128, UPC / EAN / JAN (with addition), MSI/Plessey, UK/Plessey, IATA, Interleaved 2 of 5, Standard and Industrial 2 of 5, Matrix 2 of 5, Telepen, GS1 DataBar, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post
2D code types
Data Matrix, QR code, MicroQR-Code, Aztec, MaxiCode
Stacked code types
PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F
Battery power
Over 60,000 scans with full battery
Code buffer
5,000 Codes (EAN, for scanning in batch mode), 100,000 Codes (EAN, for out of range scanning)
Ethernet
✔ , TCP/IP
PROFINET
✔
EtherCAT®
✔
Serial
✔ , RS-232
PROFIBUS DP
✔
Type of fieldbus integration
Optional over external fieldbus module CDF600-2
Remark
BluetoothTMV4.0, 2.402 ... 2.4830 GHz
Function
Wireless operating range up to 100 m (free view), batch function for expansion of the wireless radius, up to seven scanners communicate with one base station
Optical indicators
2 LEDs (good read, charge of battery , radio connection status)
Acoustic indicators
Beeper, can be switched off
Vibration
Yes
Configuration software
IDM Setup Tool
Shock resistance
50 drops from 2 m height on concrete
Ambient operating temperature
–20 °C ... +50 °C
Storage temperature
–40 °C ... +70 °C
Relative humidity
95 %, Non-condensing
Ambient light immunity
100,000 lx
Items supplied
The rechargeable battery is included with delivery
Bluetooth
✔
ECLASS 5.0
27280101
ECLASS 5.1.4
27280101
ECLASS 6.0
27280101
ECLASS 6.2
27280101
ECLASS 7.0
27280101
ECLASS 8.0
27280101
ECLASS 8.1
27280101
ECLASS 9.0
27280101
ECLASS 10.0
27280101
ECLASS 11.0
27280101
ECLASS 12.0
27280101
ETIM 5.0
EC002550
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
UNSPSC 16.0901
43211701
