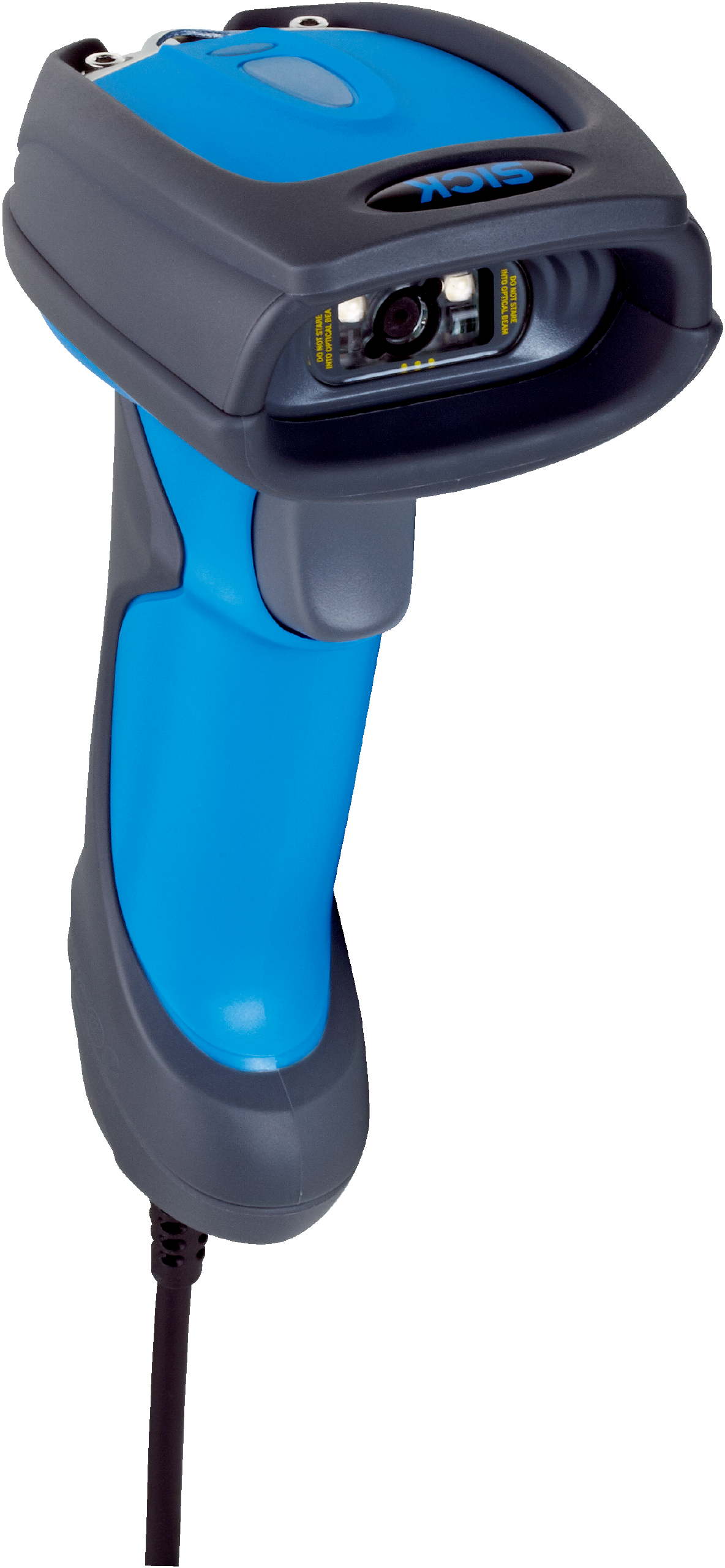

Name: IDM260-100S RS-232 Kit
Brand: SICK
SKU: 6050654
Availability: Discontinued

Prix hors TVA

Mobile handheld scanners | IDM | IDM260-100S RS-232 Kit | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 30 mm ... 380 mm | Application: Industrial application | Scanner design: Cable connection variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, DeviceNet™ | Code resolution: ≥ 0.13 mm≥ 0.25 mm

Task

Identifying - 1D code

Version

Standard Range

Application

Industrial application

Scanner design

Cable connection variant

Light source

LED, Visible, Red, 660 nm

Alignment aid

Laser, Red, 630 nm

Laser class

1 (EN/IEC 60825-1:2014)

Reading distance

30 mm ... 380 mm1)

Code resolution

≥ 0.13 mm2)≥ 0.25 mm3)

Enclosure rating

IP65

Readable code structures

1D codes, 2D codes, Stacked

Bar code types

Code 39, Code 39 Trioptic, Code 32, Code 93, Code 11, Codabar, Code 128, GS1-128 / EAN 128, UPC / EAN / JAN (with addition), MSI/Plessey, UK/Plessey, IATA, Interleaved 2 of 5, Standard and Industrial 2 of 5, Matrix 2 of 5, Telepen, GS1 DataBar, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post

2D code types

Data Matrix, QR code, MicroQR-Code, Aztec, MaxiCode

Stacked code types

PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F

Ethernet

✔ , TCP/IP

PROFINET

✔

Function

PROFINET Single Port, PROFINET Dual Port

EtherCAT®

✔
