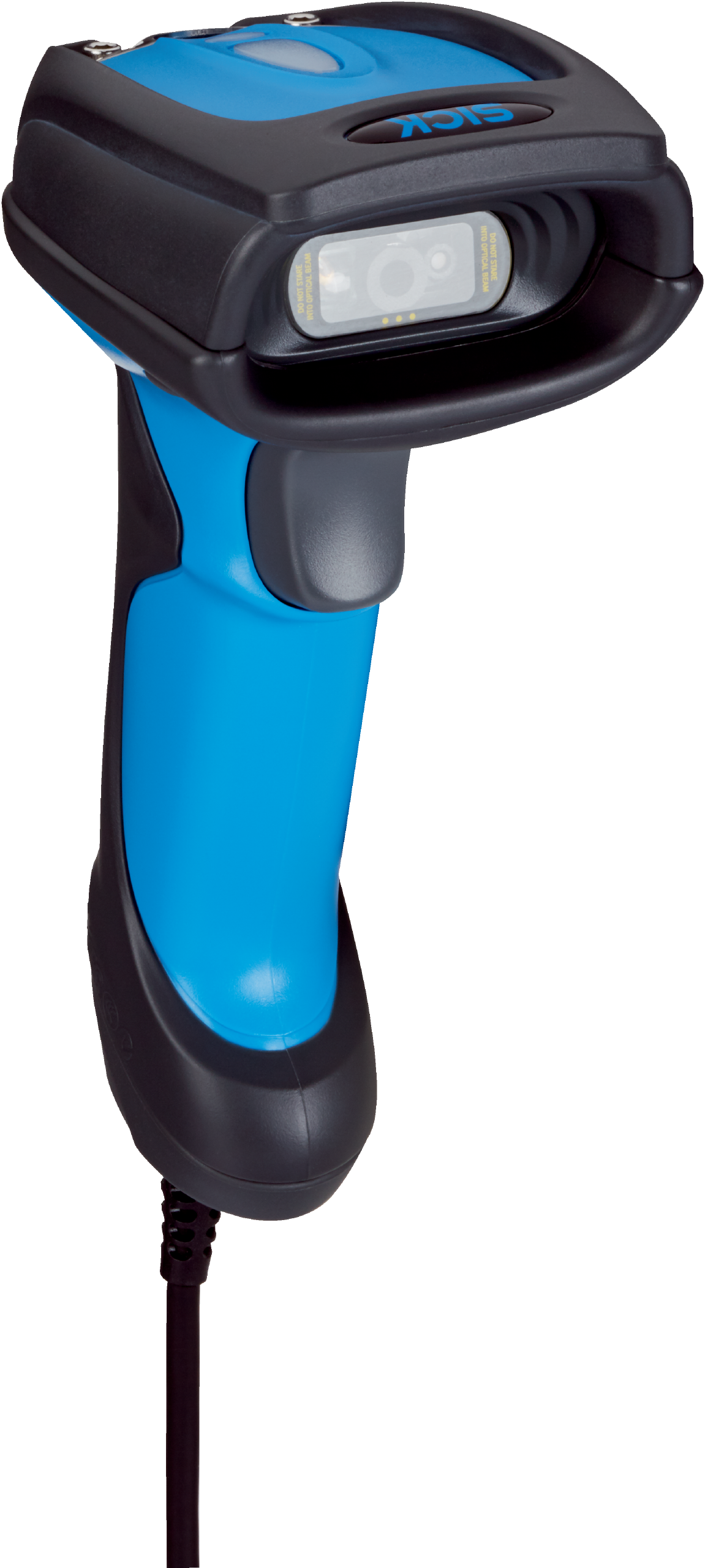

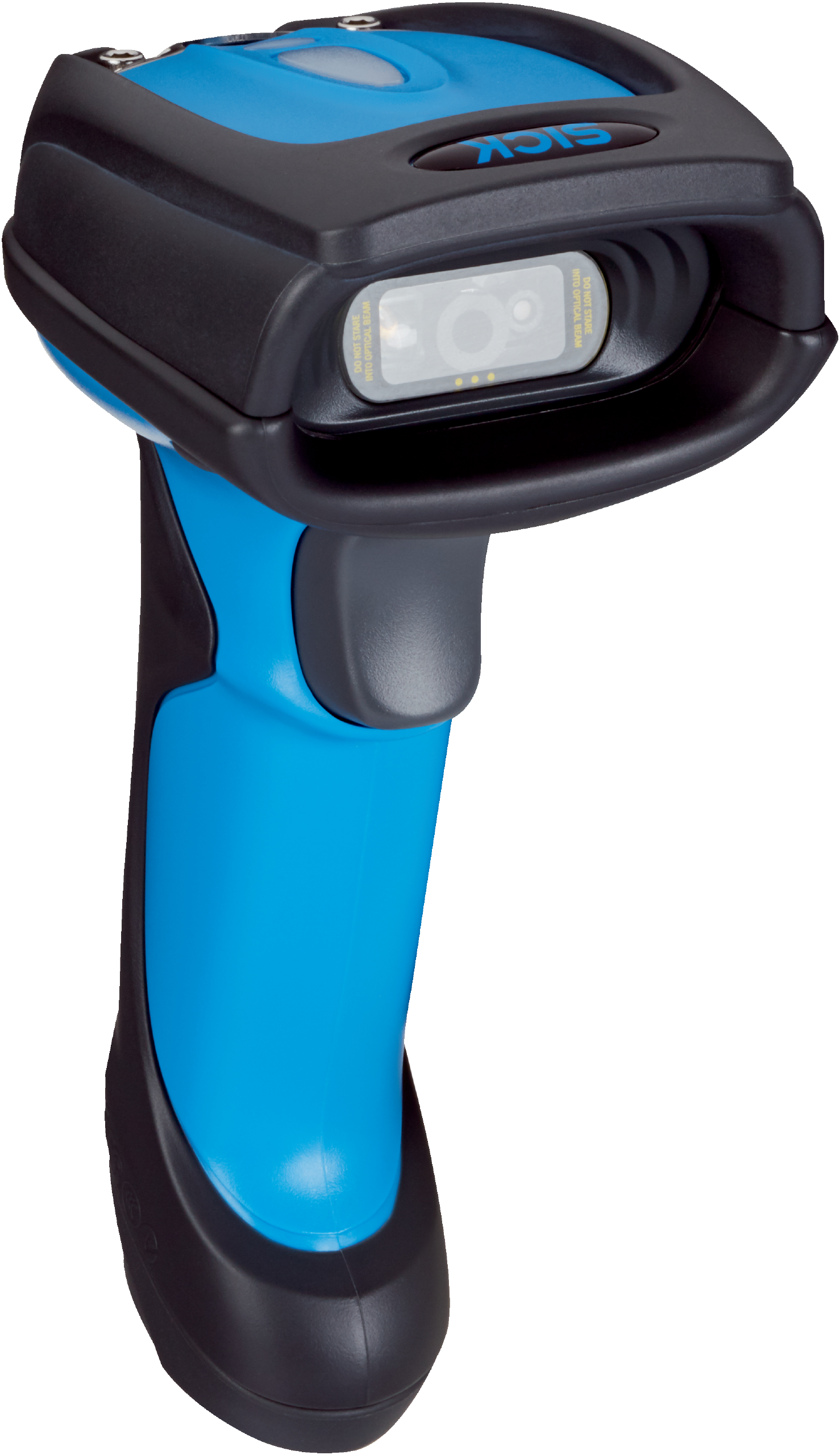

Name: IDM241-411S
Brand: SICK
SKU: 6080748
Availability: InStock

Price excluding VAT

Request a quote

Mobile handheld scanners | IDM | IDM241-411S | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 30 mm ... 400 mm | Application: Standard application | Scanner design: Wireless variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, USB, Bluetooth | Ambient operating temperature: –10 °C ... +50 °C | Code resolution: ≥ 0.07 mm, ≥ 0.13 mm

Application

Standard application

Scanner design

Wireless variant

Sensor resolution

1,280 px x 800 px

Light source

LED, Visible, Red, 660 nm

Alignment aid

LED, green, 660 nm

Reading distance

30 mm ... 400 mm

Scanning frequency

60 Hz

Code resolution

≥ 0.07 mm1)≥ 0.13 mm2)

Supply voltage

5 V DC, ± 5 %

Current consumption

Operation (charge status incl. base station): 750 mAStandby: 175 mA

Housing color

Black, Gray

Enclosure rating

IP52

Weight

230 g, without cable

Dimensions (L x W x H)

94 mm x 71 mm x 160 mm

MTBF

100,000 h

Readable code structures

1D codes, 2D codes, Stacked

Bar code types

Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, GS1 DataBar, Standard and Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC / EAN / JAN, UPC / EAN / JAN (with addition), Telepen, MSI/Plessey, UK/Plessey, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korea Post, Dutch KIX Post, Posi LAPA 4 State Code

2D code types

Data Matrix, MaxiCode, QR code, Aztec, MicroQR-Code, GS1 QR code, GS1 Data-Matrix

Stacked code types

PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F

Battery power

Over 60,000 scans with full battery

Code buffer

5,000 Codes (EAN, for scanning in batch mode), 100,000 Codes (EAN, for out of range scanning)

Ethernet

✔

PROFINET

✔

EtherCAT®

✔

Serial

✔ , RS-232

PROFIBUS DP

✔

Type of fieldbus integration

Optional over external fieldbus module CDF600-2

USB

✔

Remark

BluetoothTMV4.0, 2.402 ... 2.4830 GHz

Function

Wireless operating range up to 100 m (free view), batch function for expansion of the wireless radius, up to seven scanners communicate with one base station

Optical indicators

2 LEDs (good read, charge of battery , radio connection status)

Acoustic indicators

Beeper, can be switched off

Vibration

Configuration software

IDM Setup Tool

Shock resistance

25 drops from 1.8 m height on concrete

Ambient operating temperature

–10 °C ... +50 °C

Storage temperature

–40 °C ... +70 °C

Relative humidity

95 %, Non-condensing

Ambient light immunity

100,000 lx

Items supplied

The rechargeable battery is included with delivery

Note

A base station, a connecting cable, and possibly also a power supply unit are required for commissioning.Not free of paint wetting impairment substances.

EU declaration of conformity

✔

UK declaration of conformity

✔

ACMA declaration of conformity

✔

China RoHS

✔

Information according to Art. 3 of Data Act (Regulation EU 2023/2854)

✔

Bluetooth

✔
