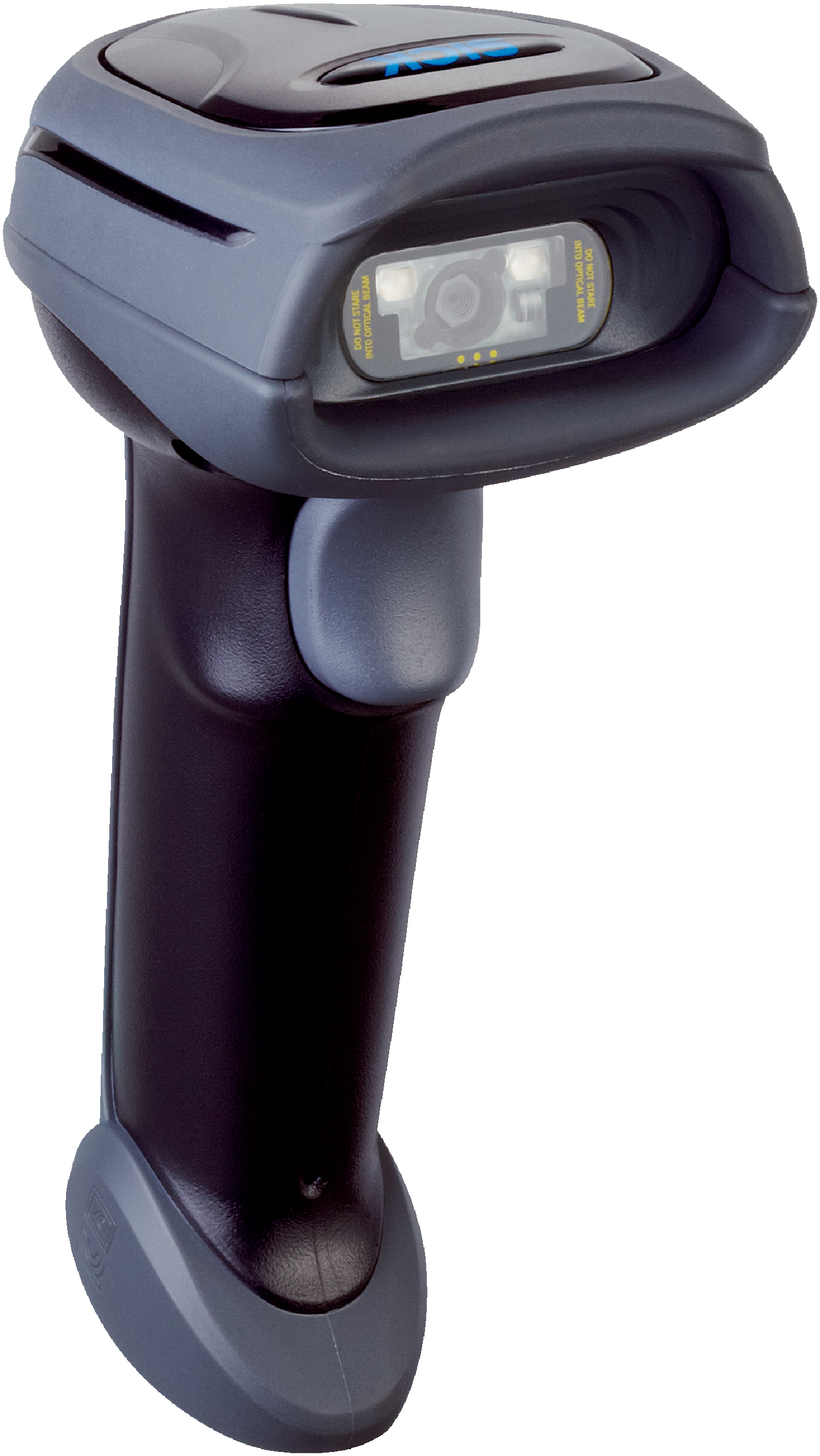

Mobile handheld scanners | IDM | IDM241-100S | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 30 mm ... 380 mm | Application: Standard application | Scanner design: Wireless variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, DeviceNet™, USB, PS/2, Bluetooth | Ambient operating temperature: –10 °C ... +50 °C | Code resolution: ≥ 0.13 mm≥ 0.25 mm
Task
Identifying - 1D code
Version
Standard Range
Application
Standard application
Scanner design
Wireless variant
Light source
Internal lighting, LED, Visible, Red, 630 nmAdjustment aid, LED, Visible, Red, 630 nm
Reading distance
30 mm ... 380 mm1)
Scanning frequency
60 Hz
Code resolution
≥ 0.13 mm2)≥ 0.25 mm3)
Supply voltage
5 V DC, ± 5 %
Current consumption
Operation: 300 mAStandby: 180 mA
Housing color
Black, Gray
Enclosure rating
IP41
Kaal
230 g, without cable
Dimensions (L x W x H)
95 mm x 70.5 mm x 161.7 mm
Readable code structures
1D codes, 2D codes, Stacked
Bar code types
Codabar, Code 39, Interleaved 2 of 5, Code 93, Code 128, UPC / GTIN / EAN, RSS, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post
2D code types
Data Matrix, QR code, MicroQR-Code, Aztec, MaxiCode
Stacked code types
PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F
Battery power
Over 60,000 scans with full battery
Code buffer
5,000 Codes (EAN, for scanning in batch mode), 100,000 Codes (EAN, for out of range scanning)
Ethernet
✔
PROFINET
✔
EtherCAT®
✔
Serial
✔ , RS-232 TTL
PROFIBUS DP
✔
DeviceNet™
✔
Type of fieldbus integration
Optional, over external connection module CDM + CMF
USB
✔
PS/2
✔
Remark
BluetoothTMV4.0, 2.402 ... 2.4830 GHz
Function
Wireless operating range up to 100 m (free view), batch function for expansion of the wireless radius, up to seven scanners communicate with one base station
Optical indicators
2 LEDs (good read, charge of battery , radio connection status)
Acoustic indicators
Beeper, can be switched off
Vibration
No
Configuration software
IDM Setup Tool
Shock resistance
25 drops from 1.8 m height on concrete
Ambient operating temperature
–10 °C ... +50 °C
Storage temperature
–40 °C ... +70 °C
Permissible relative humidity
95 %, Non-condensing
Ambient light immunity
100,000 lx
Items supplied
The rechargeable battery is included with delivery
Bluetooth
✔
ECLASS 5.0
27280101
ECLASS 5.1.4
27280101
ECLASS 6.0
27280101
ECLASS 6.2
27280101
ECLASS 7.0
27280101
ECLASS 8.0
27280101
ECLASS 8.1
27280101
ECLASS 9.0
27280101
ECLASS 10.0
27280101
ECLASS 11.0
27280101
ECLASS 12.0
27280101
ETIM 5.0
EC002550
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
UNSPSC 16.0901
43211701
