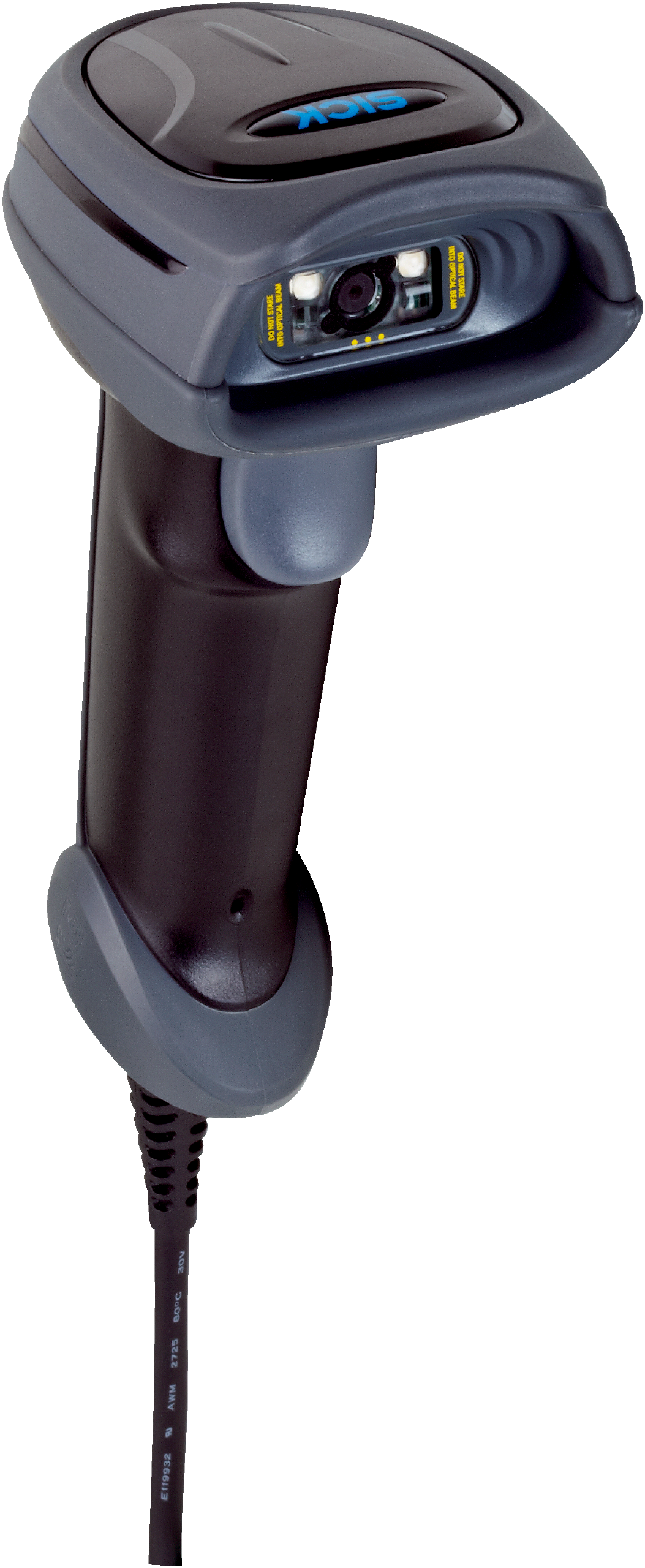

Mobile handheld scanners | IDM | IDM240-100H USB Kit | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 30 mm ... 160 mm | Application: Standard application | Scanner design: Cable connection variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: USB | Code resolution: ≥ 0.07 mm≥ 0.13 mm
Task
Identifying - 1D code
Version
High Density
Application
Standard application
Scanner design
Cable connection variant
Reading distance
30 mm ... 160 mm1)
Code resolution
≥ 0.07 mm2)≥ 0.13 mm3)
Enclosure rating
IP41
Readable code structures
1D codes, 2D codes, Stacked
Bar code types
Codabar, Code 39, Interleaved 2 of 5, Code 93, Code 128, UPC / GTIN / EAN, RSS, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post
2D code types
Data Matrix, QR code, MicroQR-Code, Aztec, MaxiCode
Stacked code types
PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F
USB
✔
Function
Keyboard wedge, COM-Port emulation
Configuration software
IDM Setup Tool
ECLASS 5.0
27280101
ECLASS 5.1.4
27280101
ECLASS 6.0
27280101
ECLASS 6.2
27280101
ECLASS 7.0
27280101
ECLASS 8.0
27280101
ECLASS 8.1
27280101
ECLASS 9.0
27280101
ECLASS 10.0
27280101
ECLASS 11.0
27280101
ECLASS 12.0
27280101
ETIM 5.0
EC002550
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
UNSPSC 16.0901
43211701
Download Datasheet
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
