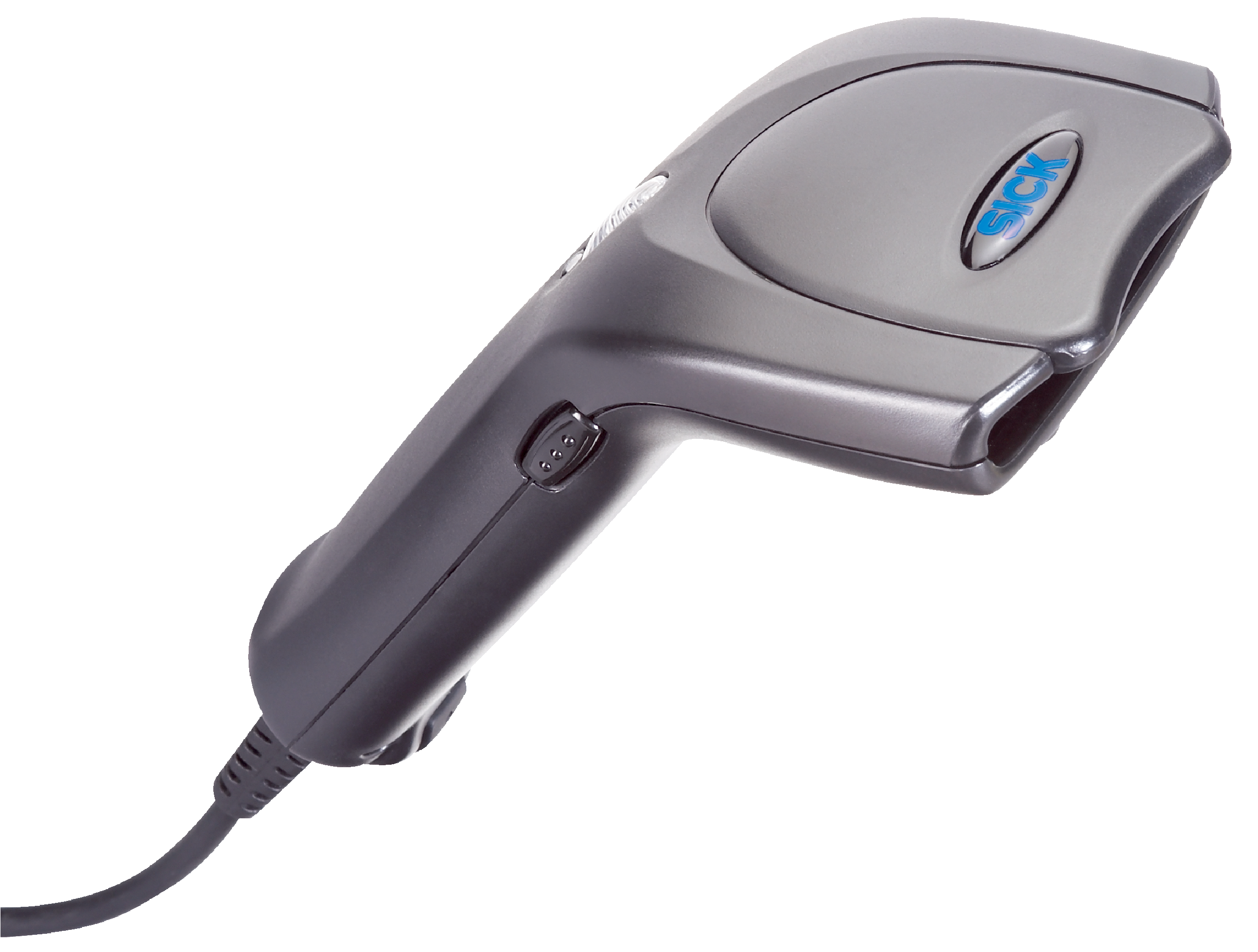

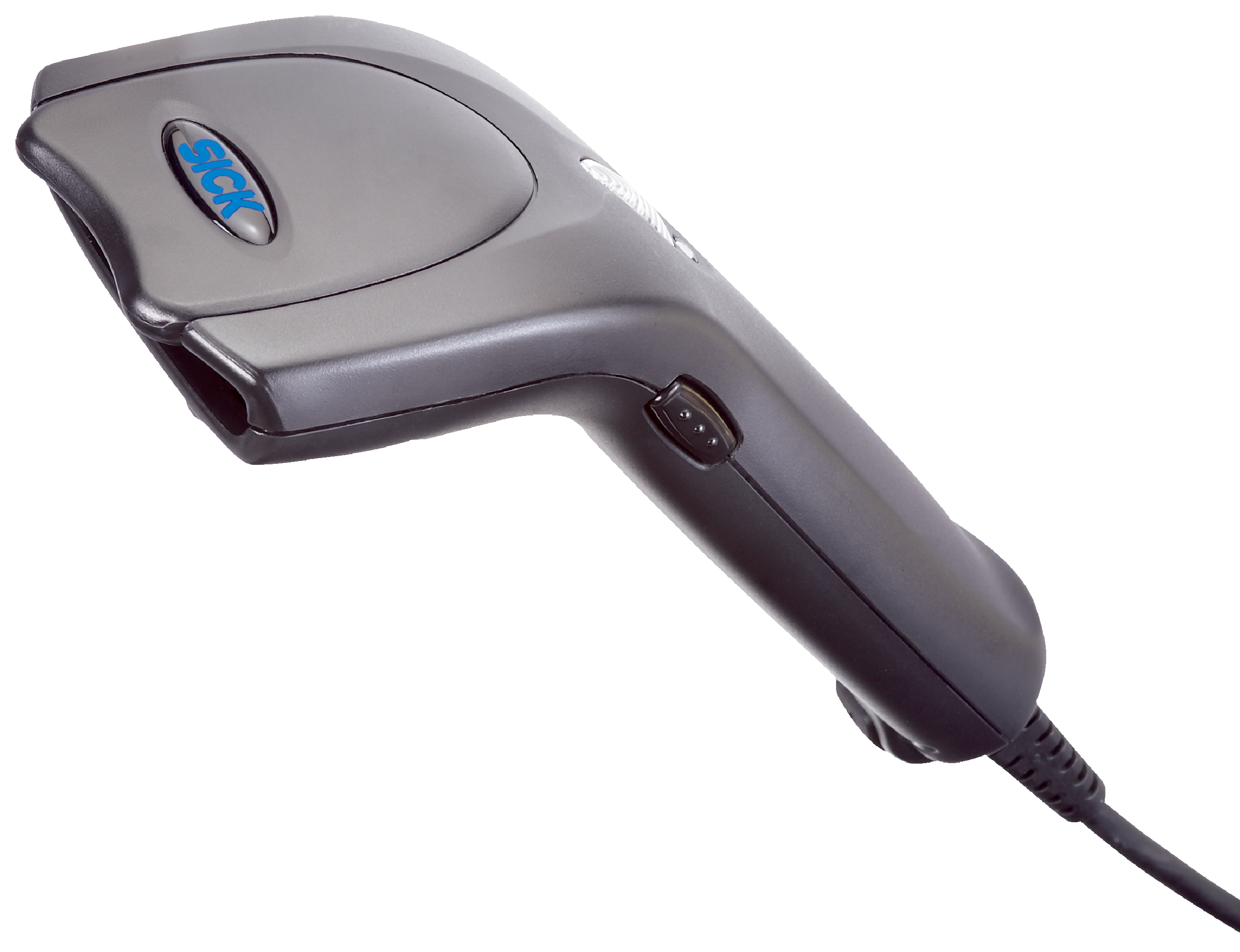

Mobile handheld scanners | IDM | IDM12x-2 RS-232 kit | Readable code structures: 1D codes | Reading distance: 0 mm ... 400 mm | Application: Standard application | Scanner design: Cable connection variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Ambient operating temperature: –10 °C ... +50 °C | Code resolution: ≥ 0.076 mm
Task
Identifying - 1D code
Version
Standard Range
Application
Standard application
Scanner design
Cable connection variant
Light source
LED, Visible, Red, 630 nm
Reading distance
0 mm ... 400 mm1)
Code resolution
≥ 0.076 mm
Enclosure rating
IP41
Readable code structures
1D codes
Configuration software
IDM Setup Tool
Ambient operating temperature
–10 °C ... +50 °C
Storage temperature
–40 °C ... +70 °C
Life cycle phase
Discontinued
Note
A power supply unit may also be required for commissioning.
ECLASS 5.0
27280101
ECLASS 5.1.4
27280101
ECLASS 6.0
27280101
ECLASS 6.2
27280101
ECLASS 7.0
27280101
ECLASS 8.0
27280101
ECLASS 8.1
27280101
ECLASS 9.0
27280101
ECLASS 10.0
27280101
ECLASS 11.0
27280101
ECLASS 12.0
27280101
ETIM 5.0
EC002550
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
UNSPSC 16.0901
43211701
