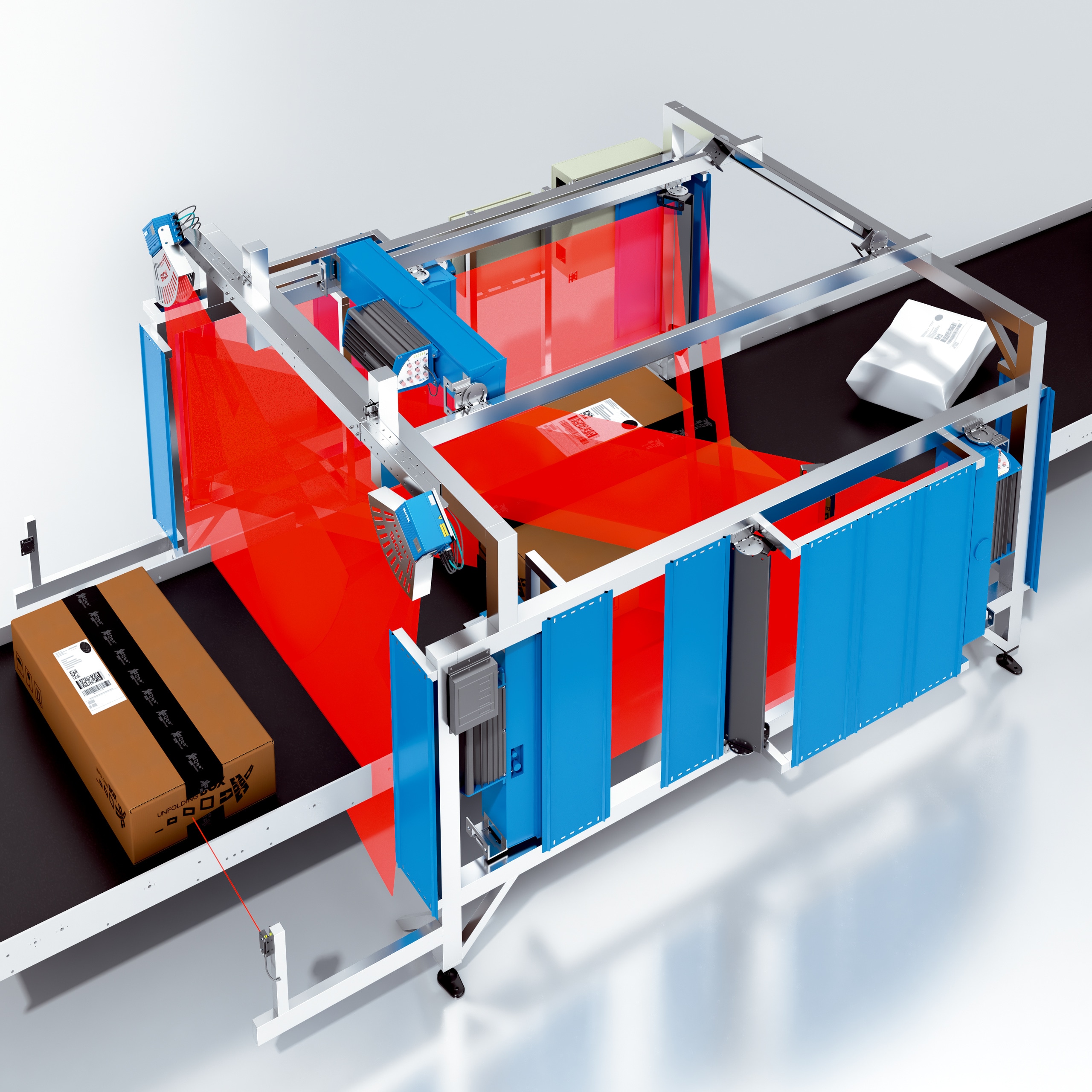

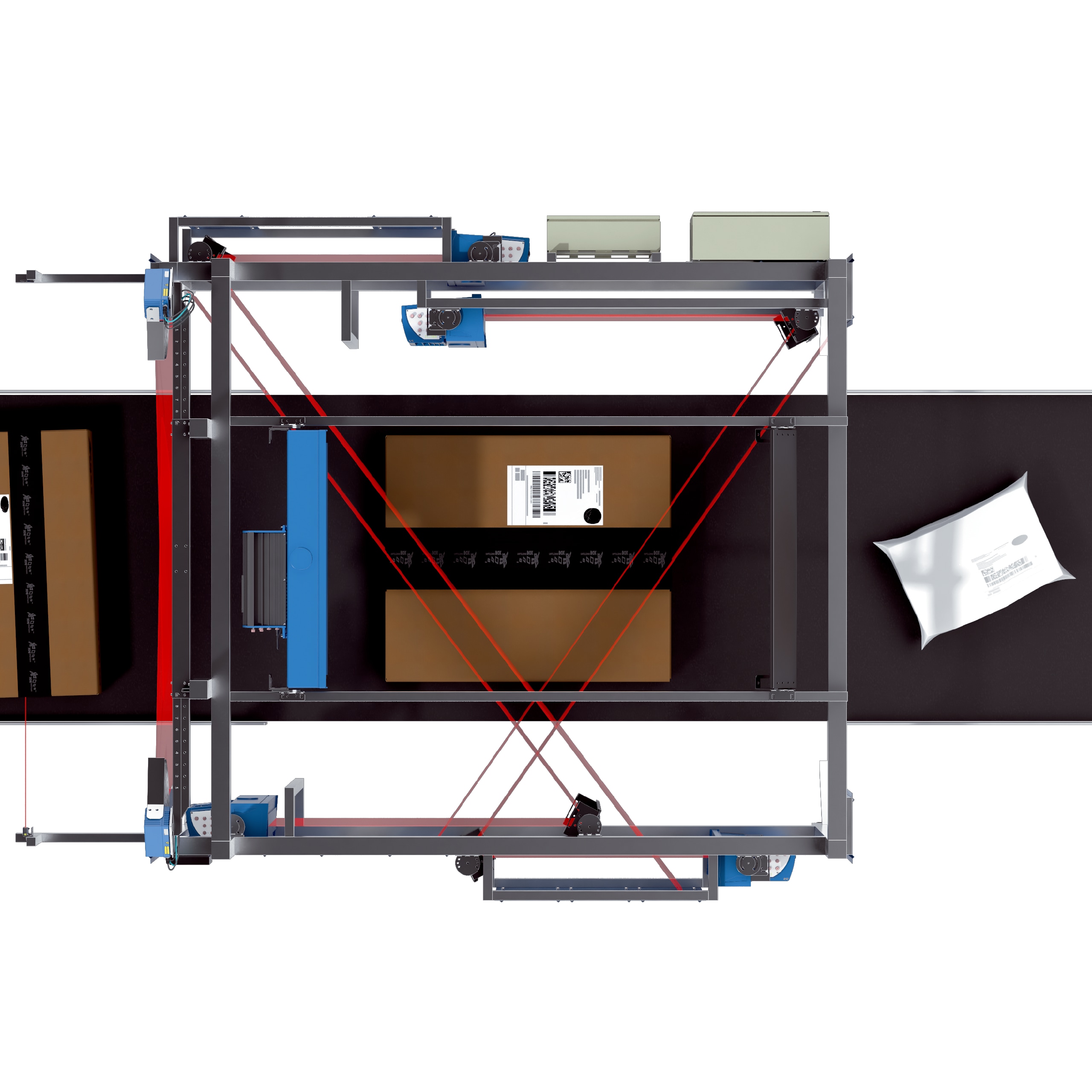

Track and trace systems | ICR Identification System | ICR890-4 12K Core | Sensor resolution: 12,288 px | Read field width: 1,600 mm | Conveyor type: Belt conveyor, Cross-belt sorter, Roller conveyor, Tilt-tray sorter, others on request | Transport speed: 0 m/s ... 4.5 m/s
Products by tasks
Identifying - 1D codeIdentifying - 2D code
Sensor
Quad-Line Sensor
Line camera sensor resolution
12,288 px
Covered conveyor width
1,600 mm
Illumination width
750 mm, 900 mm, 1,100 mm
Focus
Dynamic focus
MTBF
120,000 h
MTTR
< 10 min
Image resolution
> 295 dpi (at 4.3 m/s)
Misalignment of the object
± 15°, ± 45°
Conveyor type
Belt conveyorCross-belt sorterRoller conveyorTilt-tray sorterOthers on request
Object infeed and outfeed
Automatic
Trigger
SICK RAY26P-P011)
Encoder
SICK DFV602)
Power consumption
Depends on the configuration
Code types
1D2D4-state
1D code types
PDF417Code 39Code 128Code 32Code 93Postal codesGS1-128 / EAN 128UPC / GTIN / EAN
2D code types
AztecMaxi-CodePDF417QR codeGS1 Data-MatrixData Matrix ECC200
Transport speed
0 m/s ... 4.5 m/s
Minimum object distance
50 mm
Number of objects per second
≤ 10
Side-by-side
✔
Touching objects
✔
Additional features
Single 2D/3D Vision Solutions
Serial
✔
CAN bus
✔ (2)
PROFIBUS DP
✔
Ethernet
✔ (3)
Protocol
TCP/IP
Bar code print contrast (PCS)
≤ 40 %
Ambient operating temperature
–10 °C ... +50 °C
Ambient temperature, storage
–20 °C ... +70 °C
Permissible relative humidity
95 %, Non-condensing
Ambient light immunity
≤ 2,000 lx1)
