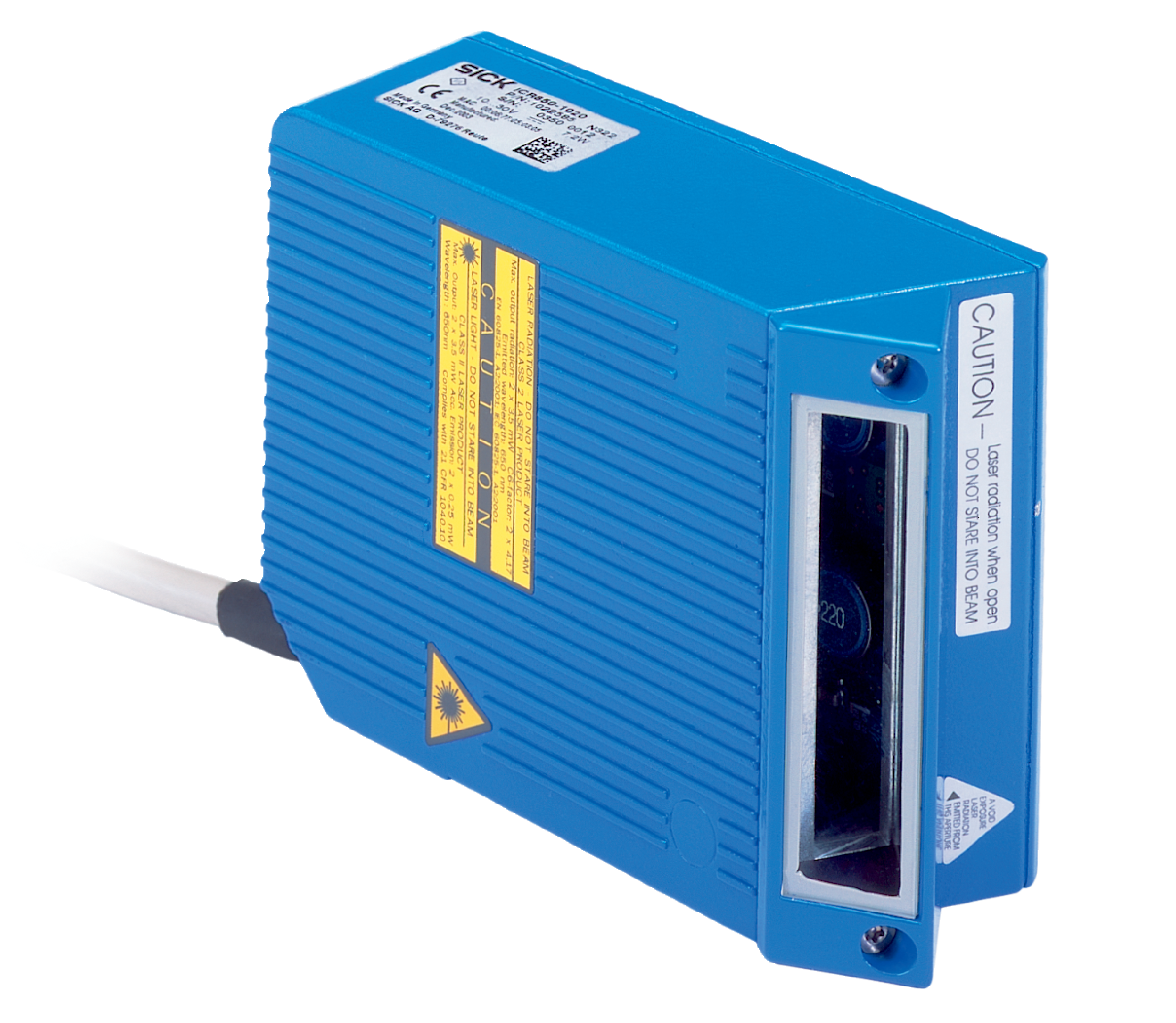

No detailed description available.
Version
High Speed
Reading field
Side
Optical focus
Fixed focus
Focus position
60 mm
Sensor
CCD line-scan camera
Sensor resolution
512 px
Light source
Laser diode (visible red light, 650 nm)
Laser class
2 (EN 60825-1, IEC 60825-1)
Reading distance
53 mm ... 67 mm1)2)
Scanning frequency
113 Hz ... 45 kHz
Code resolution
≥ 0.35 mm1)
Connection type
1 x RJ45 female connector on the device, cables with 15-pin D-Sub HD male connector (0.9 m, ± 5%)
Supply voltage
10 V DC ... 30 V DC
Power consumption
11 W
Housing material
Die-cast zinc
Housing color
Light blue (RAL 5012)
Enclosure rating
IP65 (EN 60529)1)IP302)
Protection class
III (EN 61140)
Weight
900 g, with connecting cable
Dimensions (L x W x H)
114.6 mm x 80 mm x 39 mm
MTBF
20,000 h
Bar code types
GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, Code 39, Code 128, Codabar
2D code types
Data Matrix ECC200, QR code, GS1 Data-Matrix
No. of codes per scan
1 ... 50
No. of codes per reading interval
1 ... 50
No. of characters per reading interval
4,000
Digital inputs
2 (“Sensor 1”, “Sensor 2”)
Digital outputs
2 (“Result 1”, “Result 2”)
Reading pulse
Switching inputs, non-powered, serial interface
Optical indicators
4 LEDs (status displays)
Acoustic indicators
Beeper/buzzer (can be switched off, can be assigned functions to signal the result status 0.25 ... 2 mm)
Electromagnetic compatibility (EMC)
EN 61000-6-2 / EN 61000-6-4
Vibration resistance
EN 60068-2-6
Shock resistance
EN 60068-2-27
Ambient operating temperature
0 °C ... +40 °C
Storage temperature
–20 °C ... +70 °C
Permissible relative humidity
± 90 %, Non-condensing
Ambient light immunity
2,000 lx, on barcode
Life cycle phase
Discontinued
ECLASS 5.0
27280103
ECLASS 5.1.4
27280103
ECLASS 6.0
27280103
ECLASS 6.2
27280103
ECLASS 7.0
27280103
ECLASS 8.0
27280103
ECLASS 8.1
27280103
ECLASS 9.0
27280103
ECLASS 10.0
27280103
ECLASS 11.0
27280103
ECLASS 12.0
27280103
ETIM 5.0
EC002550
ETIM 6.0
EC002550
ETIM 7.0
EC002999
ETIM 8.0
EC002999
UNSPSC 16.0901
43211701
