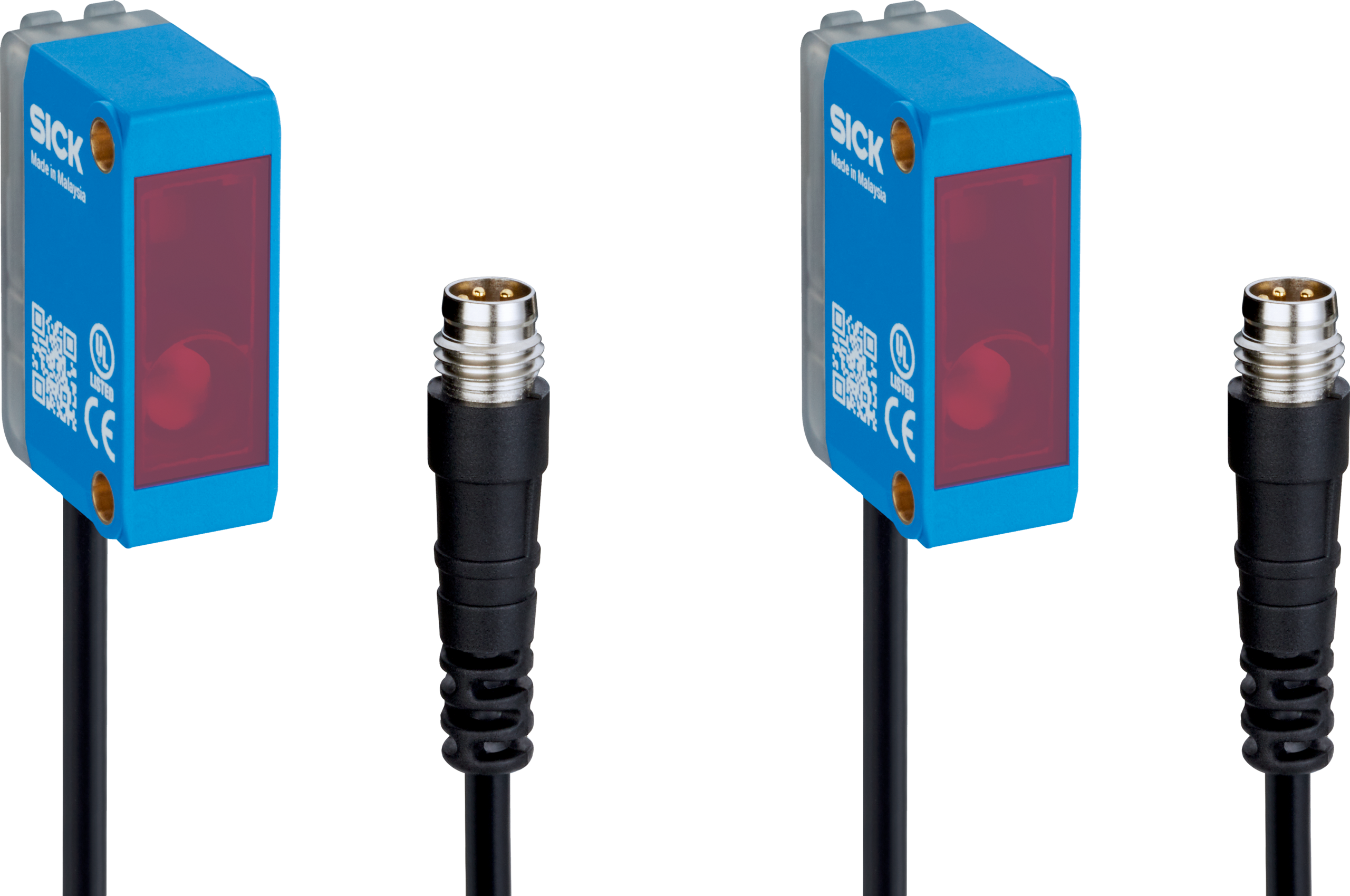

Photoelectric sensors | G6 | GSE6SP-31A111A0ZZZ | Sensing range min. / max.: 0 m / 20 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Dark switching | Connection type: Cable with connector M8, 3-pin, 300 mm | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS | Adjustment: None | Housing: Rectangular
Functional principle
Through-beam photoelectric sensor
Sensing range min.
0 m
Sensing range max.
20 m
Maximum distance range from receiver to sender (operating reserve 1)
0 m ... 20 m
Recommended distance range from receiver to sender (operating reserve 2)
0 m ... 17 m
Recommended sensing range for the best performance
0 m ... 17 m
Light source
PinPoint LED
Type of light
Visible red light
Shape of light spot
Point-shaped
Light spot size (distance)
Ø 473.8 mm (10 m)
Normative reference
EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking
Free group
Wave length
640 nm
Average service life
100,000 h at Ta= +25 °C
None
–
LED green
Operating indicatorStatic on: power on
LED yellow
Status of received light beamStatic on: object not presentStatic off: object present
Supply voltage UB
10 V DC ... 30 V DC1)
Ripple
≤ 5 Vpp
Usage category
DC-12 (According to EN 60947-5-2)DC-13 (According to EN 60947-5-2)
Current consumption
≤ 30 mA, without load. At UB= 24 V
Protection class
III
Number
1
Type
PNP
Switching mode
Dark switching
Signal voltage PNP HIGH/LOW
Approx. UB-3 V / 0 V
Output current Imax.
≤ 100 mA2)
Circuit protection outputs
Reverse polarity protected
Response time
≤ 625 µs3)
Switching frequency
1,000 Hz4)
Function of pin 4/black (BK)
Digital output, dark switching, object present → output Ǭ HIGH
Function of pin 4/black (BK) – detail
The pin 4 function of the sensor can be switched
Dimensions (W x H x D)
12 mm x 31.6 mm x 21 mm
Connection
Cable with connector M8, 3-pin, 300 mm
Deep-freeze property
Do not bend below 0 °C
Conductor size
0.14 mm²
Cable diameter
Ø 3.4 mm
Length of cable (L)
300 mm
Housing
Plastic, ABS
Front screen
Plastic, PMMA
Cable
Plastic, PVC
Male connector
Metal, copper alloy (C3604 CUZN39PB3)
Poids
Approx. 16 g
Maximum tightening torque of the fixing screws
0.4 Nm
Enclosure rating
IP67 (EN 60529)
Ambient operating temperature
–30 °C ... +55 °C
Ambient temperature, storage
–40 °C ... +70 °C
Typ. Ambient light immunity
Sunlight: ≤ 30,000 lx
Shock resistance
11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27))
Vibration resistance
10 Hz ... 55 Hz (Amplitude 0.5 mm, 3 x 30 min (EN60068-2-6))
Air humidity
35 % ... 95 %, relative humidity (no condensation)
Electromagnetic compatibility (EMC)
EN 60947-5-2
UL File No.
NRKH.E348498 & NRKH7.E348498
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
Photobiological safety (IEC EN 62471)
✔
ECLASS 5.1.4
27270902
ECLASS 6.0
27270902
ECLASS 7.0
27270902
ECLASS 8.0
27270902
ECLASS 9.0
27270902
ECLASS 10.0
27270902
ECLASS 11.0
27270902
ECLASS 12.0
27270902
ECLASS 13.0
27270902
ECLASS 14.0
27270902
ECLASS 15.0
27270902
ETIM 6.0
EC002717
ETIM 7.0
EC002717
ETIM 8.0
EC002717
ETIM 9.0
EC002717
ETIM 10.0
EC002717
UNSPSC 091201.0
32151804
UNSPSC 100501.0
32151804
UNSPSC 111201.0
32151804
UNSPSC 120901.0
32151804
UNSPSC 131201.0
32151804
UNSPSC 140801.0
32151804
UNSPSC 151101.0
32151804
UNSPSC 160901.0
32151804
UNSPSC 171001.0
32151804
UNSPSC 180801.0
32151804
UNSPSC 190501.0
32151804
UNSPSC 200601.0
32151804
UNSPSC 210901.0
32151804
UNSPSC 220601.0
32151804
UNSPSC 230701.0
32151804
UNSPSC 240301.0
32151804
UNSPSC 250901.0
32151804
UNSPSC 260801.0
32151804
