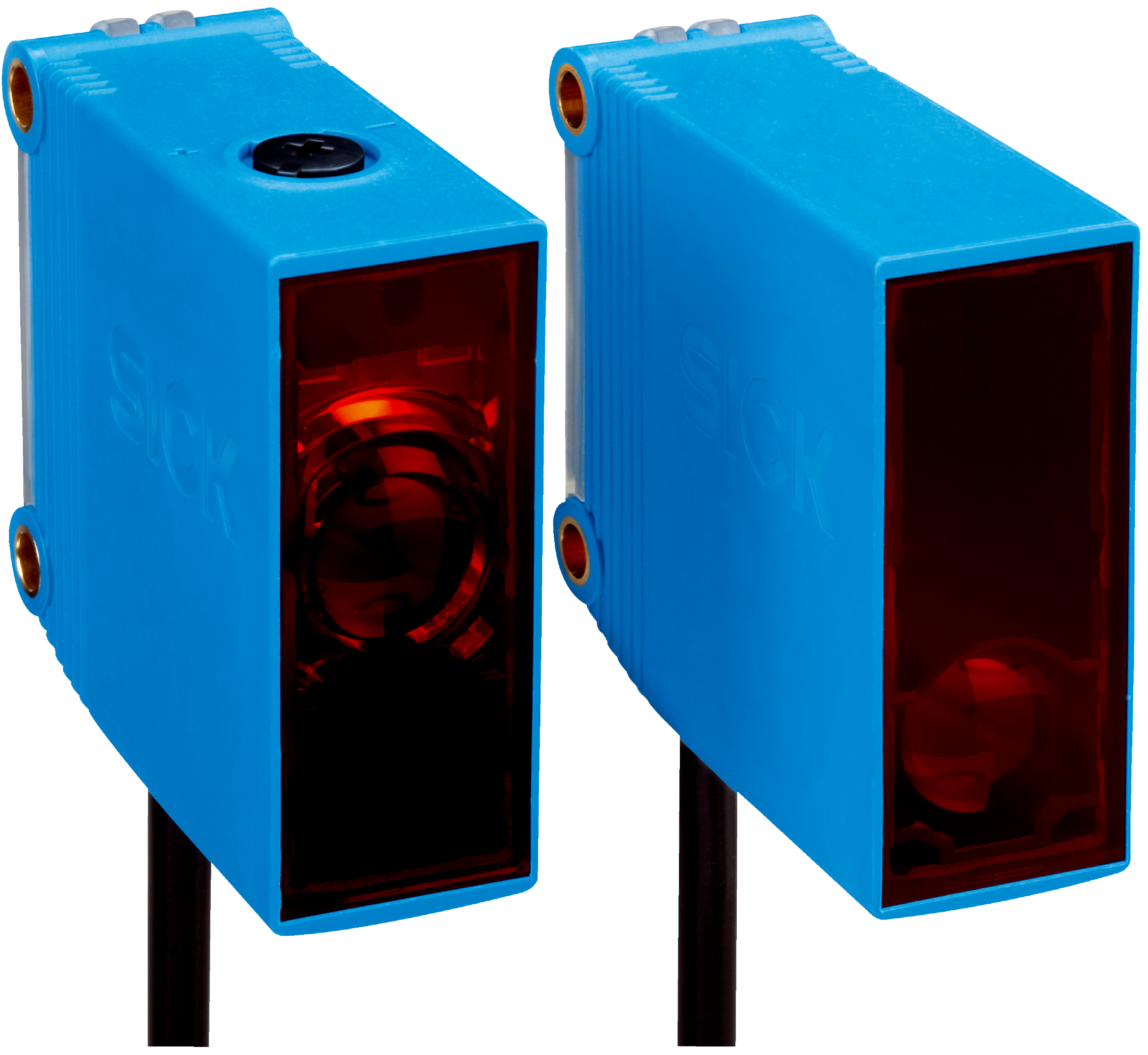

Photoelectric sensors | G10 | GSE10-R9812 | Functional principle: Through-beam photoelectric sensor | Switching output: Relay | Switching mode: Light/dark switching | Connection type: Cable, 5-wire, 5 m | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-G10UC01 (2x)
Functional principle
Through-beam photoelectric sensor
Dimensions (W x H x D)
20 mm x 50 mm x 51.5 mm
Housing design (light emission)
Rectangular
Sensing range max.
0 m ... 40 m
Sensing range
0 m ... 35 m
Type of light
Visible red light
Light source
PinPoint LED1)
Light spot size (distance)
Ø 180 mm (15 m)
Wave length
625 nm
Adjustment
Potentiometer, 270°
Supply voltage Ue
24 V AC/DC ... 240 V AC/DC1)
Ripple
< 10 %
Power consumption, sender
≤ 2 VA
Power consumption, receiver
≤ 2.5 VA
Switching output
Relay, SPDT, electrically isolated2)
Switching mode
Light/dark switching2)
Switching load max. (current/voltage)
0.11 A (250 V DC)3 A (30 V DC)3 A (250 V AC)
Response time
≤ 10 ms
Switching frequency
20 Hz3)
Connection type
Cable, 5-wire, 5 m4)
Cable material
Plastic, PVC
Conductor cross section
0.25 mm²
Circuit protection
C5)
Protection class
II6)
Weight
230 g
Interference emission
EN 61000-6-3 (2011-09)7)
Housing material
Plastic, ABS/PMMA
Enclosure rating
IP67
Relay switching cycles min.
100.000 cycles (3 A)
Items supplied
Mounting bracket BEF-G10UC01 (2x)
Usage category
DC-13 (according to EN 60947-1)AC-15 (according to EN 60947-1)
Electromagnetic compatibility (EMC)
EN 60947-5-2EN 61000-6-3 (2011-09)
Ambient operating temperature
–30 °C ... +60 °C8)
Ambient temperature, storage
–40 °C ... +70 °C
UL File No.
NRKH.E348498 & NRKH7.E348498
More standards
UL3259)
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
CCC certificate
✔
cULus certificate
✔
Photobiological safety (DIN EN 62471) certificate
✔
ECLASS 5.0
27270901
ECLASS 5.1.4
27270901
ECLASS 6.0
27270901
ECLASS 6.2
27270901
ECLASS 7.0
27270901
ECLASS 8.0
27270901
ECLASS 8.1
27270901
ECLASS 9.0
27270901
ECLASS 10.0
27270901
ECLASS 11.0
27270901
ECLASS 12.0
27270901
ETIM 5.0
EC002716
ETIM 6.0
EC002716
ETIM 7.0
EC002716
ETIM 8.0
EC002716
UNSPSC 16.0901
39121528
